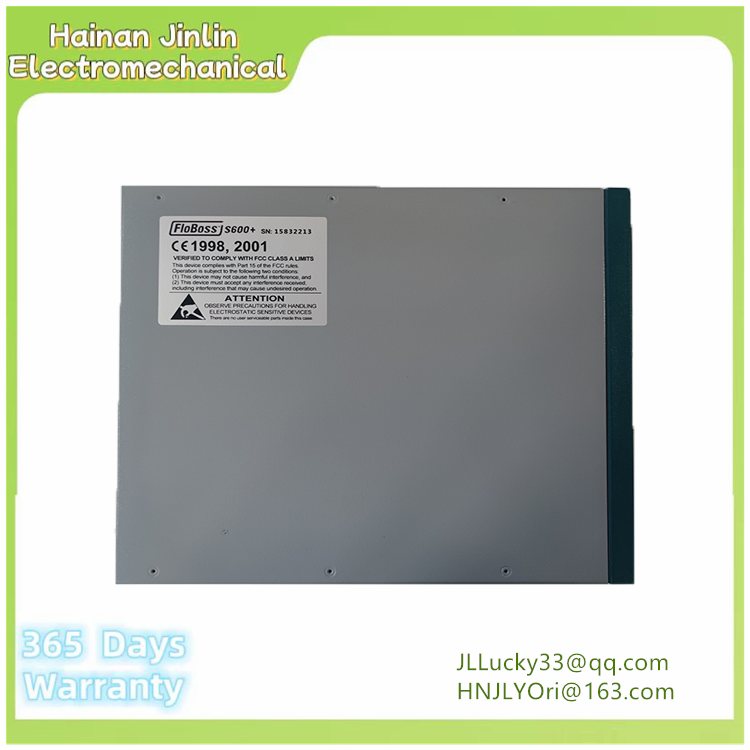

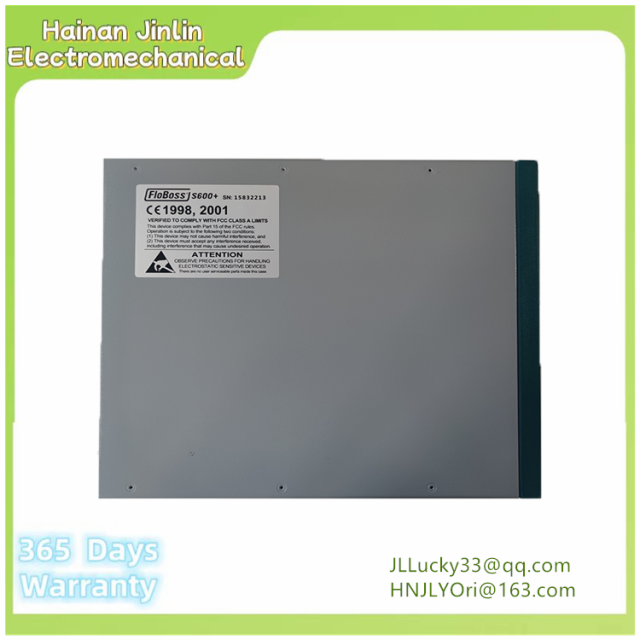

Model: FLOBOSS S600
The FloBoss S600 Flow Manager is a panel-mount flow computer
designed specifically to measure hydrocarbon liquid and gas where
versatility and accuracy matter. The S600’s standard features make it
ideal for fiscal measurement, custody transfer, batch loading, and
meter proving applications. The S600 allows you to configure multistream, multi-station applications, enabling you to simultaneously
meter liquids and gasses.
The S600 is designed for use either as a stand-alone flow computer or
as a system component. The intelligent I/O boards fit both gas and
liquid applications and support two streams and a header.
trait
All metrological calculations are performed with 64-bit (double) precision floating point numbers to achieve the highest accuracy and comply with the latest API requirements
The cumulative total is stored in three separate memory locations (Tri-reg format) for maximum integrity
Reduce measurement uncertainty and improve confidence
Flexible communication options, including Ethernet, serial and HART
HART Transmitter Compatibility - 12 channels, up to 50 transmitters, including dual HART master stations
Analog, HART, serial or Ethernet - fully compatible, easy to integrate, faster to boot and lower start-up costs
Intelligent interface with most flowmeters, including Coriolis and ultrasonic flowmeters
Interim approvals for liquid and gas applications reduce risk and give you peace of mind, demonstrating that they meet the highest financial requirements for liquids and gases
Mixed liquid and gas flows in a single flow computer - 10 flows for the flowmeter and 6 flows for the dual-flow pulsemeter
Support AGA, API, ASTM, GPA, ISO, GOST, S-GERG
The high precision analog input is 24 bits, and the accuracy is ±0.005% of full scale at 23oC
Wide ambient temperature range -10C to +60C
