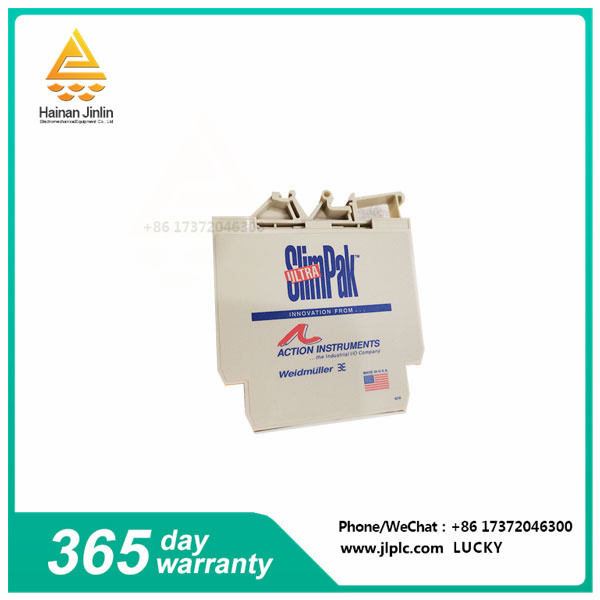

The G428-0001.V1 is an isolated signal regulator. Has thermocouple input and current/voltage output. The G428 is a DIN rail mounted thermocouple input signal regulator with 1800VDC isolation between input, output and power supply. Field-configurable inputs and outputs provide flexible, extensive functionality for J, K, T, R, S.E, and B thermocouples. The G428 input can be configured for more than 60 thermocouple temperature ranges. The output is linear to temperature and can be set to 0 to 5V, 0 to 10V, 0 to 1mA, 0 to 20mA, or 4 to 20mA. Wide-range, precision zero: point and range potentiometers allow 50% offset and range adjustment in each range. For example, the 0 to 1000°C range can be offset and turned down to provide a signal from 4 to 20mA, representing 500 to 1000°C. Again, you can make adjustments by reference to the output range. The above example
It can be used to provide signals from 12 to 20mA at temperature inputs from 750 to 1000°C.
● Field configurable input range for J K, T, R.S, E and B thermocouples
● Ultra-thin housing for high density installation
Grounding elimination loop
● Flexible power supply can accept 9 to 30VDC
Field configurable output ranges: 0-5V, 0-10V, 0-1mA, 0-20mA, and 4 to 20mA
●ASIC technology to improve reliability
