Product Overview

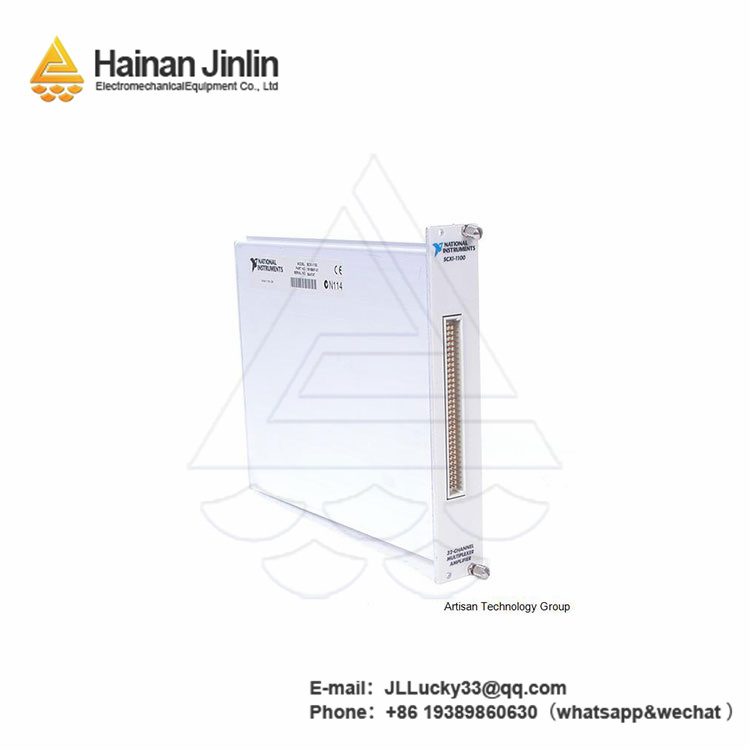

The SCXI-1100 is a versatile signal conditioning module designed to enhance the performance of data acquisition systems in industrial and laboratory environments. As a foundational component in SCXI (Signal Conditioning eXtensions for Instrumentation) setups, the SCXI-1100 specializes in amplifying, filtering, and isolating low-level signals from sensors and transducers, ensuring accurate data capture for critical measurements. Its robust architecture makes it ideal for applications such as process monitoring, structural testing, and environmental sensing across industries like manufacturing, energy, and research. The SCXI-1100 integrates seamlessly with compatible data acquisition hardware, providing a flexible solution that adapts to diverse signal types and measurement requirements. Whether used in standalone configurations or as part of a larger modular system, the SCXI-1100 delivers consistent signal integrity, making it a reliable choice for engineers and technicians seeking precise data acquisition.
Hainan Jinlin Mechanical & Electrical is a distributor of industrial control products, specializing in a wide range of brands. We possess extensive industry knowledge and market insights. Adhering to the "Customer First, Forge Ahead" business philosophy, we provide high-quality customer service. We're here for you, dedicated to meeting your needs!
Technical Specifications
|
Parameter
|
Value
|
|
Product Model
|
SCXI-1100
|
|
Manufacturer
|
NI
|
|
Product Type
|
General-Purpose Signal Conditioning Module
|
|
Operating Voltage
|
±15V DC, +5V DC
|
|
Temperature Range
|
0°C to 55°C (32°F to 131°F)
|
|
Input Channels
|
8 single-ended / 4 differential
|
|
Gain Options
|
1, 10, 100, 1000 (configurable)
|
|
Bandwidth
|
100 kHz (at gain = 1)
|
|
Dimensions
|
107mm x 165mm x 37mm (L x W x H)
|
Key Features and Benefits
The SCXI-1100 is engineered to address the challenges of processing weak or noisy signals, offering a blend of flexibility and performance that makes it a staple in professional data acquisition setups. Its configurable gain options (1 to 1000) allow users to amplify low-level signals from sensors such as thermocouples, strain gauges, and pressure transducers, ensuring that even subtle changes are detectable—critical for applications like material fatigue testing or precision manufacturing.
One of the module’s standout features is its dual-channel configuration (8 single-ended or 4 differential), which provides versatility in connecting to different sensor types without requiring multiple modules. This adaptability reduces system complexity and cost, making the
SCXI-1100 suitable for both simple and complex measurement tasks.
Designed to minimize signal degradation, the SCXI-1100 includes built-in low-pass filtering to eliminate high-frequency noise, a common issue in industrial environments with motors, pumps, or other electrical equipment. This noise reduction capability ensures that the data collected is accurate and reliable, forming a solid foundation for analysis and decision-making.
The SCXI-1100 is fully compatible with SCXI chassis systems, enabling easy scalability. Users can stack multiple modules to expand channel count, making it simple to adapt to growing measurement needs. Its compact size allows for efficient use of rack space, while intuitive software integration simplifies setup and calibration, reducing the time required to get systems up and running.
Backed by a one-year warranty and our expert technical support, the SCXI-1100 offers long-term reliability. Our pre-sales team can assist with system design, ensuring optimal integration with existing equipment, while post-sales support provides timely troubleshooting to minimize downtime.
