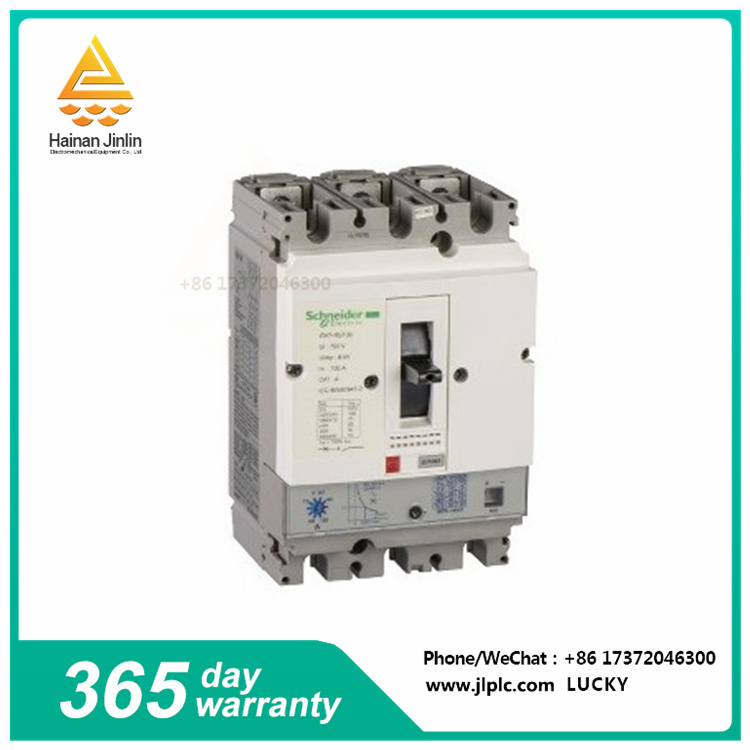

Manufacturer: Schneider
Part number: GV7RS150
Description: Schneider, motor circuit breaker, 3-pole, 150 A, 690 V ac, DIN rail mount, 125 x 105 x 111 mm
Features and advantages:
Motor protection switch rocker control type.
● The GV7-RE series is designed to be lightweight, robust and compact, ideal for small Spaces.
Optional door] installation control.
Screw clamp connector.
Thermal magnetic trip device technology.
Short-circuit trip.
Protection levels and security features:
Any direct contact from an external user does not allow access to the field parts, thus improving operational safety around the MPCB.
Thermomagnetic trip technology to help protect devices built into the circuit breaker.
●IEC 60947-1, IEC 60947-2, IEC 60947-4-1 standard ratings (complete list in data sheet).
Certified DNV, UL (complete list in data sheet).
●IP405 protection class, according to IEC 60529
Applications:
Motor control and protection
It can be secured to the mounting rail by screws or clamps, making it easy to fit into any configuration.
The GV7-RE series uses its superior electromechanical technology and is specifically designed for TOP applications.
