Product Overview
The

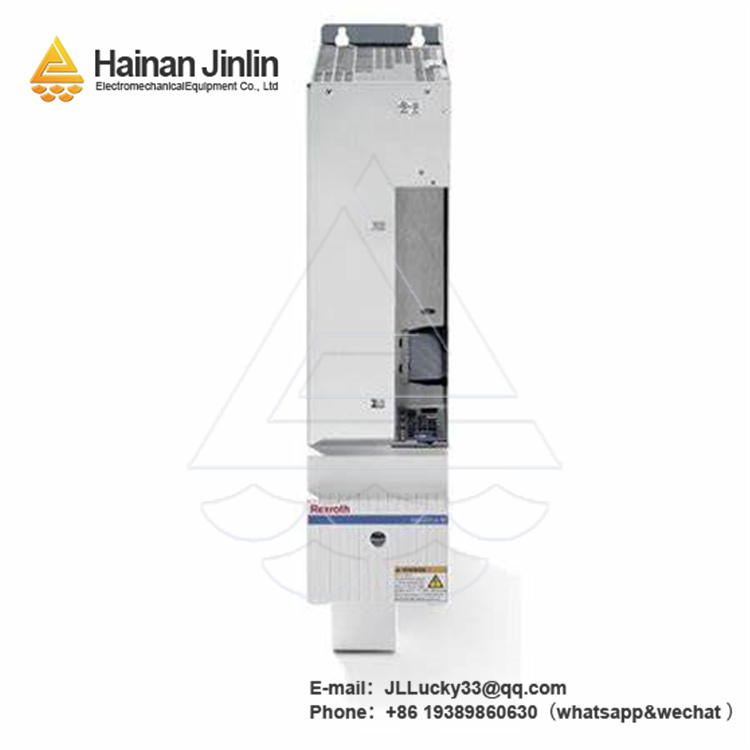

HMS01.1N-W0070-A-07-NNNN is a high-performance servo drive designed to deliver precise motion control in industrial automation applications, specializing in high-speed and high-accuracy positioning of motors in machinery such as CNC machines, robotics, packaging equipment, and material handling systems. As a critical component in motion control systems, this drive converts electrical power into controlled mechanical motion, ensuring smooth acceleration, deceleration, and velocity regulation. The
HMS01.1N-W0070-A-07-NNNN stands out for its compact design, advanced control algorithms, and seamless integration with servo motors, making it an ideal choice for applications where precision, speed, and reliability are paramount. Whether deployed in automotive assembly lines, electronic manufacturing, or precision machining, the
HMS01.1N-W0070-A-07-NNNN ensures consistent performance, enabling tight tolerances and efficient operation.
Technical Specifications
|
Parameter
|
Value
|
|
Product Model
|
|
|
Manufacturer
|
Bosch Rexroth
|
|
Product Type
|
Servo Drive
|
|
Rated Power
|
7.0 kW
|
|
Input Voltage
|
3-phase AC 380-480V ±10%
|
|
Output Current
|
18 A (continuous), 36 A (peak)
|
|
Control Modes
|
Position, velocity, torque control
|
|
Communication Protocols
|
PROFINET, EtherCAT, CANopen
|
|
Operating Temperature
|
0°C to 40°C (ambient, derated above 40°C)
|
|
IP Rating
|
IP20 (panel-mounted)
|
Key Features and Benefits
The
HMS01.1N-W0070-A-07-NNNN is engineered to deliver exceptional motion control precision, starting with its advanced field-oriented control (FOC) algorithm. This technology ensures precise torque and speed regulation, even at low speeds, making it suitable for applications requiring movements—such as semiconductor wafer handling or precision welding, where micron-level accuracy is critical.
High dynamic response is a standout advantage. The drive’s fast current loop (up to 6 kHz) and rapid position loop update rates enable quick reaction to command changes, reducing settling time and overshoot. This is essential in high-speed pick-and-place robots or packaging machinery, where cycle times directly impact productivity.
Flexible integration capabilities simplify system design. The HMS01.1N-W0070-A-07-NNNN supports major industrial Ethernet protocols (PROFINET, EtherCAT) and fieldbuses (CANopen), allowing seamless communication with PLCs, HMIs, and motion controllers from various manufacturers. This interoperability eliminates protocol barriers, reducing integration complexity in multi-vendor automation setups.
Energy efficiency is embedded in its design, with features like regenerative braking that feeds excess energy back into the power grid, reducing energy consumption and heat generation. This not only lowers operational costs but also extends the drive’s lifespan by minimizing thermal stress—particularly valuable in 24/7 production environments.
Built-in safety functions enhance operational reliability. The drive includes STO (Safe Torque Off) functionality, which meets SIL 3 safety standards, enabling safe shutdown of motor torque in emergency situations without disconnecting power. This feature simplifies compliance with machine safety regulations, protecting operators and equipment.
Backed by a one-year warranty, the HMS01.1N-W0070-A-07-NNNN is supported by expert pre-sales engineering for system sizing and after-sales technical support, ensuring optimal performance and minimal downtime.
Related Models
- HMS01.1N-W0100-A-07-NNNN – Higher power variant (10 kW) for applications requiring increased torque, such as heavy-duty material handling systems.
- HMS01.1N-W0055-A-07-NNNN – Lower power model (5.5 kW) suitable for smaller machinery like desktop CNC routers or light-duty robots.
- HMS01.1N-W0070-A-07-NNNN-EX – Explosion-proof version, certified for use in hazardous areas such as chemical processing plants.
- HMS02.1N-W0070-A-07-NNNN – Dual-axis drive, allowing control of two motors from a single unit, ideal for space-constrained systems like gantry robots.
- HMS01.1N-W0070-B-07-NNNN – Enhanced variant with additional feedback options (absolute encoders, resolvers) for applications requiring high positional accuracy.
- HMS01.1N-W0070-A-07-NNNN-T – High-temperature rated model (-10°C to 50°C), designed for extreme environments like foundries or glass manufacturing.
For further inquiries or to confirm compatibility with your motor and control system, please contact us via WhatsApp: [
https://wa.me/+86 19389860630] or email:
jllucky33@qq.com. Our team of experts is dedicated to providing tailored motion control solutions for your industrial needs.
