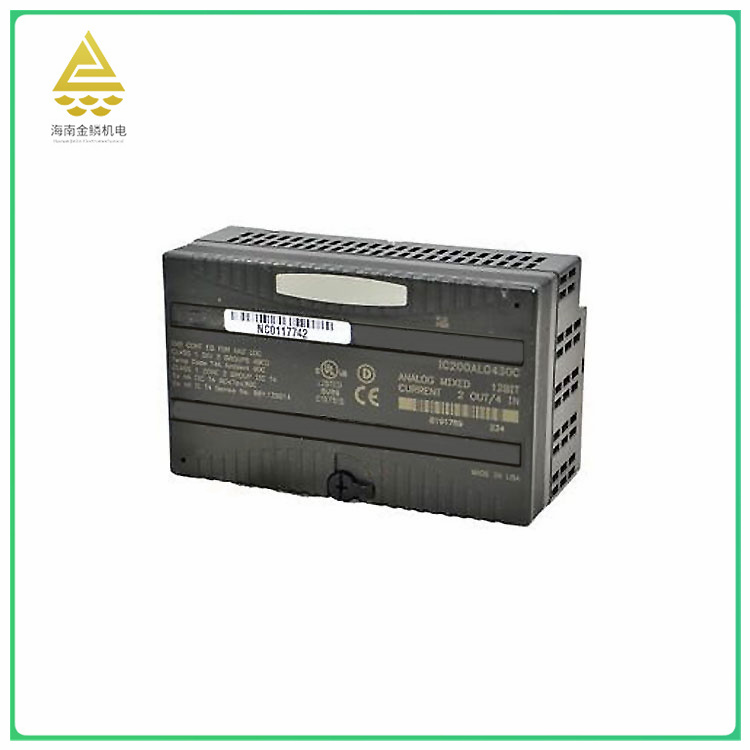

IC200ALG262J 15-bit eight-channel differential current module Provides 8 analog current input interfaces

IC200AL G262 is a 15 Bit Differential Current Module with eight channels from GE Versamax. This analog input module offers an interface to eight analog current inputs that receive power from the backplane power
supply. This means no external power source is necessary for module operation. However, power for the user's transceivers is required from an external source.
The IC200AL G262 has a single group of eight dfferential input channels with 15-bit converter resolution. The CPU or NIU performs the itelligent processing for this unit as the module provides eight words of analog input
data. This unit reports a loss of power fault for field side circuits and open wire faults for every channel but only in 4-20mA mode. A jumper on the carrier terminal can be used to configure this range or the 0-20mA input
range as needed, or the lack of a jumper cable will allow the module to use the 4-20mA range. Additionally, LED lights indicate power and proper functioning.
When first intalling the IC200ALG262 module, carefully inspect all parts for damage. Do not use damaged parts as this may afect overall functioning. Analog channel connections should be created with shielded twisted
pair cable with the cable grounded at the source device. However, if unable to ground at the source, then grounding at the /O module is appropriate and can be done using the axiliary l/0 terminal. If this option is used,
shield connections can be made on an axiliary l/0 terminal connected to the /0 carrier. If additional connections are required, an auxiliary 10 terminal strip can be utilized.
