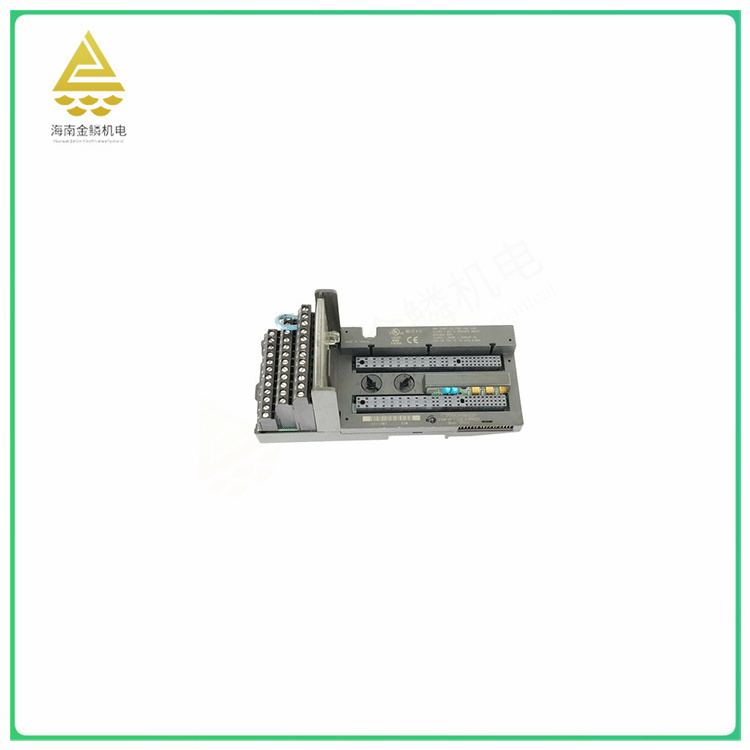

The IC200CHS022 is a compact cassette I/O carrier module from the GE family or Emerson Automation or VersaMax product family. Its functions and application areas are as follows:
Features:
36 IEC box terminals are provided to support a variety of wire connections in a single terminal.
Supports backplane communication, installation, and field wiring for one input/output module.
Wiring is available for up to 32 I/O points and four common power connections.
Easy key knob for quick installation.
Modules feature male and female connectors for quick installation without additional tools/cables.
The module latch latch is firmly fixed to the carrier to ensure installation stability.
Collapsible printed line cards that can be inserted into the built-in card holder for easy use and maintenance.
Application field:
Industrial automation: IC200CHS022 is suitable for industrial automation control systems and can be used as a carrier of I/O modules to provide reliable signal transmission and control functions.
Manufacturing: In the manufacturing industry, the module can be used for equipment control and monitoring on the production line to achieve precise control and stable operation of the equipment.
Energy industry: In the energy industry, IC200CHS022 can be used for the control and monitoring of energy equipment, such as power plants, oil and gas facilities, etc., to ensure the safe production and supply of energy.
Chemical industry: In the chemical industry, the module can be used for the control and monitoring of chemical reactions and process flows to improve production efficiency and product quality.
The IC200CHS022 is a powerful compact cassette I/O carrier or carrier module for the VersaMax product family with several advantages and disadvantages.
Advantages:
Small size, light weight, space saving, easy to install and maintain.
Provides 36 IEC box terminals to support multiple wire connections in a single terminal for increased wiring flexibility and reliability.
Supports backplane communication, installation, and field wiring for one input/output module, providing wiring for up to 32 I/O points and four common power connections for a variety of industrial automation and control applications.
Equipped with simple key knobs for quick installation, reducing installation time and cost.
With male and female connectors, rapid installation without additional tools/cables improves wiring efficiency.
The module latch latch is firmly fixed to the carrier to ensure installation stability and reliability.
Foldable printed line cards that can be inserted into the built-in card holder for easy use and maintenance, reducing maintenance costs and time.
Cons:
For some specific applications, additional configuration or support may be required, adding complexity and cost.
For large or complex control systems, more modules and configurations may be required, increasing the complexity and cost of the system.
For applications that require high bandwidth or high-speed transmission, the IC200CHS022 may not be the best choice and require a higher-level module or solution.
To sum up, IC200CHS022 has several advantages and disadvantages. Its advantages make it widely used in the field of industrial automation and control, but at the same time, it also needs to be reasonably configured and used according to the specific application requirements.
