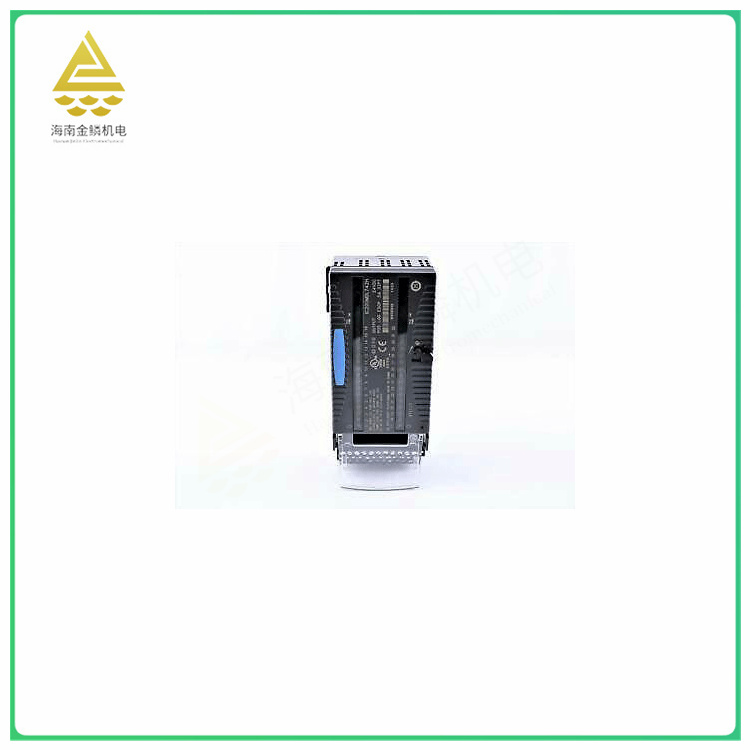

The IC200MDL742H is a discrete output module for a programmable logic controller (PLC) in the VersaMax IC200 family from GE. This module has the following features and functions:
Features:
32 point output: The module has 32 discrete output points, divided into two groups of 16 outputs each.
Positive logic type: All output points are of positive logic type.
Control discrete devices: Designed to control discrete devices such as solenoids, motors and lights.
Robust and reliable: able to withstand harsh industrial environments.
Features:
Output function: Each output point is able to switch loads and provide load current, allowing it to control external devices.
Flexible configuration: Can be combined with other IC200 series PLC modules to meet different control needs.
Communication capability: Through connection with other IC200 series modules, complex control logic and communication functions can be implemented.
Application scenario:
The IC200MDL742H is suitable for industrial automation applications where a large number of discrete devices need to be controlled. It can be used in conjunction with sensors, actuators and other PLC modules to achieve complex control logic and automation tasks.
Advantages and disadvantages:
Advantages:
High reliability: can withstand harsh industrial environment, to ensure long-term stable operation.
Flexible configuration: By combining with other modules, different control requirements can be met.
Easy integration: Compatible with other IC200 series modules for easy system integration and expansion.
Cons:
Higher cost: As a professional-grade PLC module, the price may be higher.
Professional training required: Although the programming and operation of a PLC is relatively intuitive, it still requires a certain amount of expertise and training to get the most out of its performance.
The IC200MDL742H discrete output module is a module for converting digital signals into discrete physical outputs. It is often used in automation systems to control the switching status of various external devices, such as relays, indicators, motors, etc
The main function of the discrete output module is to convert the input digital signal into the corresponding discrete output signal, so as to realize the control of the external equipment. Its features include:
Digital signal input: The IC200MDL742H accepts the input of digital signals, usually binary 0s and 1s.
Discrete output: Outputs discrete switching signals, such as high or low levels.
Programmable: IC200MDL742H can be programmed to set the state and logic of the output to achieve flexible control.
Isolation protection: In order to prevent external interference and damage, it usually has an isolation protection function.
In practical applications, the IC200MDL742H discrete output module is often used in industrial automation, robot control, smart home and other fields. They can be used in conjunction with programmable logic controllers (PLCS) or other control systems to achieve precise control and automated operation of equipment
