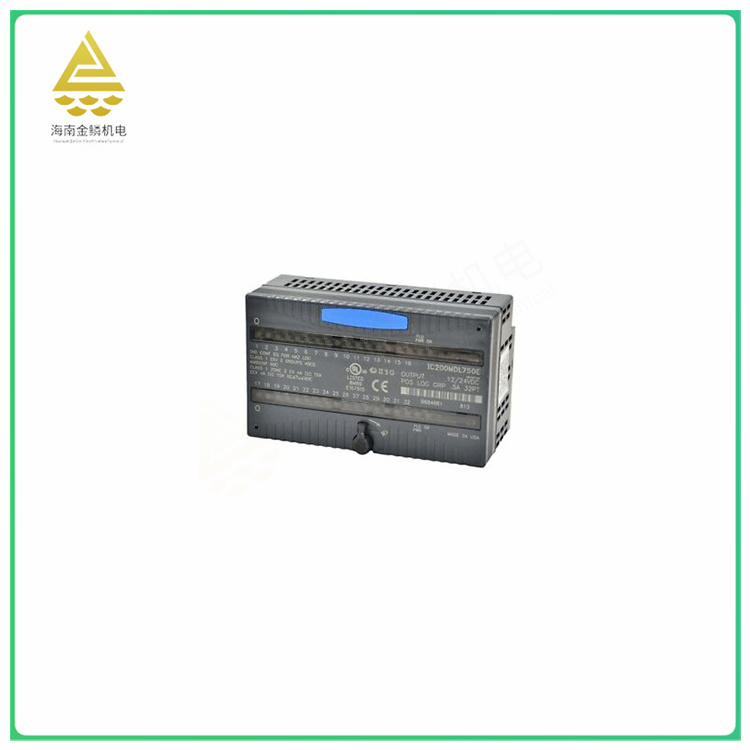

The IC200MDL750E is a general-purpose module that can be used in a variety of industrial automation and control system applications. Based on the information provided, this module may be related to GE's IC200 series, but the specific functions, characteristics and uses require further information to be determined.
Generally, general-purpose modules such as the IC200MDL750E may have multiple input/output channels, communication interfaces, data processing capabilities, and other control and monitoring functions. They can be used for data acquisition, signal conversion, communication protocol conversion, control logic realization and many other tasks.
The IC200MDL750 is 110 mm (4.3 in) x66.8 mm (2.63 in) x50 m (1.956 in) in physical dimensions, not including the dimensions of the carrier base. Similar to other I/O0 modules, each output channel is equipped with a separate LED status indicator to monitor the activity of each channel module locally. In addition, an OK LED is provided to display an active power supply from the backplane with a high current of 90 mA.
The IC200MDL750 module is the Versamax output module. It is a 32-point output module with a rated voltage of 24 volts DC. It has a rated current of 0.5 amps per point. It consumes 90 amps of backplane current. It is compact in size and weighs 0.90 kg. The 1C200MDL750 module is a positive logic output module with two groups of 16 outputs. A total of 32 outputs have one DC+ terminal and one DC-terminal. When the wiring is connected to an inductive load, the output module uses an external suppression circuit. The module is certified for operation in | Class 2 rated hazardous places.
