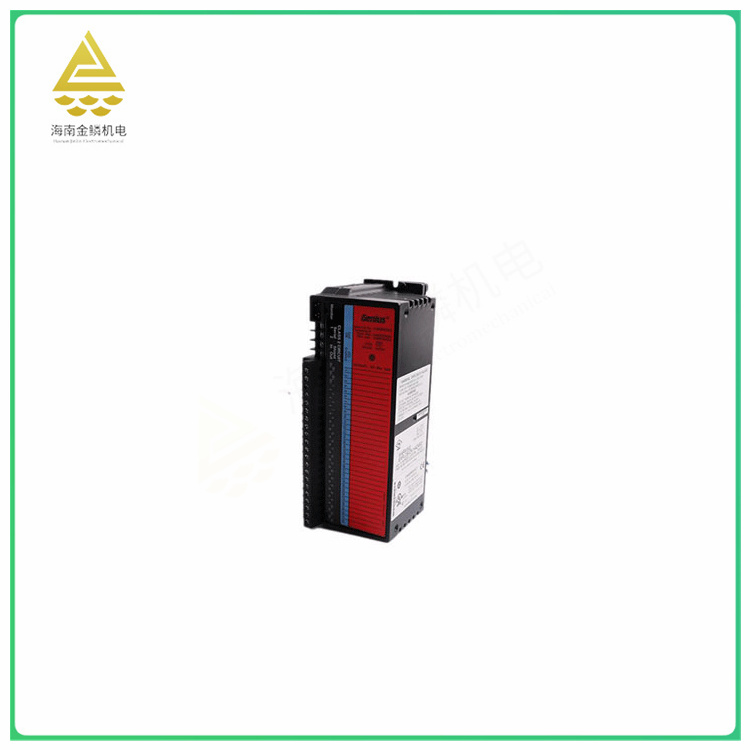

The IC660BRD024 source output module is a 32-point DC source output module with an operating current load range of 0.5 to 1.0 amps and a maximum inrush current rating of 10.0 amps.
The IC660BRD024 is a modular redundancy (GMR) output board produced by GE Fanuc, a joint venture between GE and Fanuc. This board is commonly used in industrial automation and control systems to provide reliable output functions.
Main functions:
Modular redundancy: The IC660BRD024 supports modular redundancy (GMR) configuration, which means it can implement redundancy and failover between multiple modules to improve system reliability and availability.
Output function: As an output board, the IC660BRD024 has multiple output channels that can be used to control external devices or actuators such as motors, valves, sensors, etc.
Configuration and programming: The board is usually used in conjunction with the corresponding programming software and tools, and can be programmed to achieve complex control logic and output functions.
Application scenario:
The IC660BRD024 is suitable for industrial automation systems that require high reliability and flexibility. It can be used as part of a control system, working in concert with other modules and devices to achieve accurate control and monitoring.
Advantages and disadvantages:
Advantages:
High reliability: Supports modular redundancy configuration, improving system reliability and fault tolerance.
High flexibility: a variety of output functions and control logic can be programmed to adapt to different application requirements.
Easy integration: Compatible with other GE Fanuc modules and devices for easy system integration and expansion.
Cons:
Higher cost: As a professional-grade output board, the price may be higher.
Professional training required: While installation and configuration is relatively simple, a certain amount of expertise and training is still required to ensure proper installation and configuration.
IC660BRD024 Startup of the GMR system: When the PLC is initialized, the GMR software automatically prevents the application from running until the initialization is complete. It also disables PLC output to the Genius output module. If disabling the output function does not complete successfully, the GMR software sets the "GMR System Initialization Error" TAB and the IC660BRD024 GMR software puts the PLC in stop mode.
IC660BRD024 GMR Startup phase activation output: When %M12257 is set to 1, each PLC starts sending output data. When the first PLC starts sending data, its output is compared to the default state that each output has been configured. When each PLC (PLCA, B) starts sending output, its output is compared with the voted output status in each output module group.
IC660BRD024 Communication between GMR PLCs systems: Global variables are automatically broadcast on the Genius bus according to certain rules, which enables the reliable exchange of information between different PLCS in the GMR system. The GMR system software uses the Genius global variable to exchange information between PLCS.
