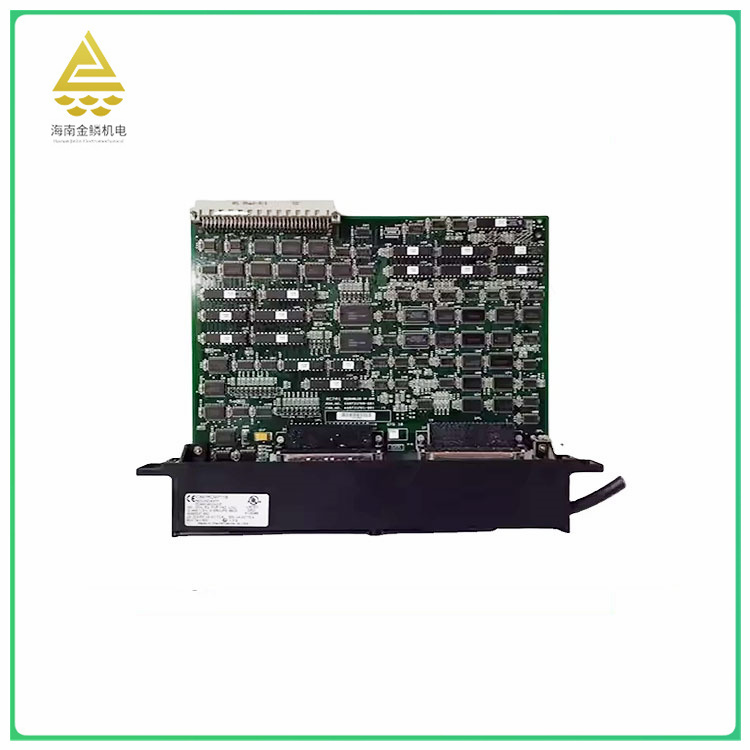

The IC687RCM711B is a redundant communication module in Schneider Electric's Modicon system. Redundant communication modules are often used in systems that require high reliability and redundancy design to ensure that the system can seamlessly switch to an alternate channel in the event of a communication failure, avoiding production disruptions.
Here are some of the key features and benefits of the IC687RCM711B:
Main features:
Redundant design: This module provides a synchronous message path from the active unit to the standby unit for synchronizing dual cpus in a FIP single-stand redundant system. It also allows the path of shared I/O data to be transferred between the two cells.
High reliability: Redundant communication modules improve system reliability and ensure that the system can continue to operate in the event of a communication failure, reducing the risk of production disruption.
Compatibility: The IC687RCM711B is compatible with a variety of CPU modules, such as the IC697CFR782 and IC697CFR28, and can be used with these CPU modules to provide seamless communication and redundancy.
Easy integration: The module uses standard interfaces and connections, which can be easily integrated into the existing Modicon system without large-scale changes to the existing system architecture.
Advantages:
High reliability: The redundant communication module ensures that the system can seamlessly switch to the standby channel when the communication fails, improving the availability and stability of the system.
Flexibility: The module is compatible with a variety of CPU modules and can adapt to different system configurations and needs, providing flexible solutions.
Easy maintenance: The redundant design makes system maintenance simple and convenient, and when a module fails, it can be easily replaced without requiring large-scale changes to the entire system.
Scalability: By adding redundant communication modules, the communication capability of the system can be expanded, and the performance and stability of the system can be improved.
