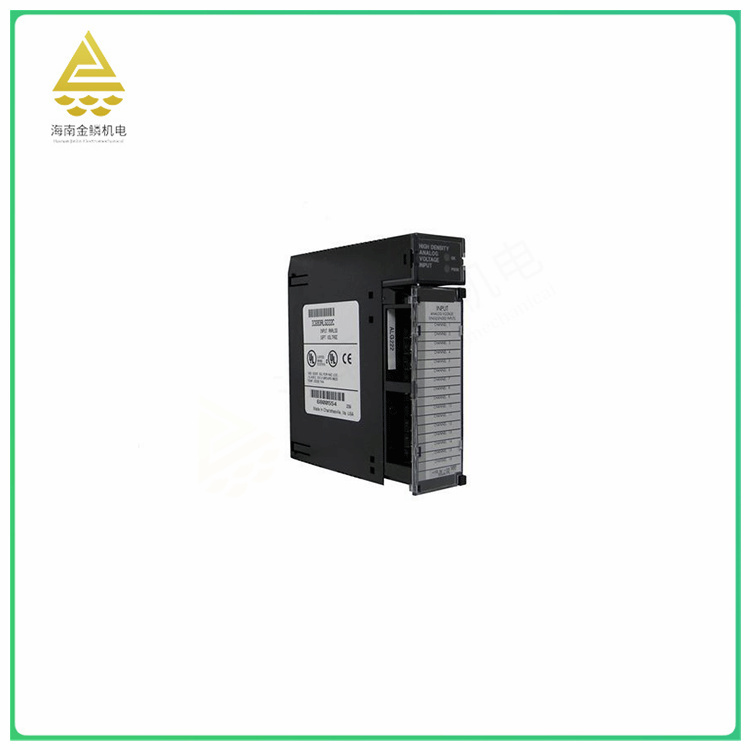

The IC693ALG222 is an analog input module for General Electric (GE) PLCS. It has 16 single-ended or 8 differential voltage signal input channels and can receive 0-10VDC (unipolar) and -10VDC - +10VDC (bipolar) signals. The module has update rates of 6 ms (single-ended configuration) and 3 ms (differential configuration), and resolutions of 2.5 mV (1 LSB = 2.5 mV) (0-10VDC) and 5 mV (1 LSB = 5 mV) (-10VDC - +10VDC). The maximum internal power consumption of the module is 112 mA for the backplane +5 VDC bus, and 41 mA for the backplane isolation +24 VDC power supply. The input type of the module can be unipolar or bipolar.
The IC693ALG222 is an analog input module with the following advantages:
High precision and stability: IC693ALG222 adopts advanced electronic technology, with high precision and stability, and can accurately receive analog signals, which is suitable for analog input requirements of various industrial automation control systems.
Multi-channel input: The module has 16 single-ended or 8 differential voltage signal input channels, which can receive analog signals of multiple devices and processes at the same time, improving the flexibility and scalability of the control system.
Easy to program and monitor: IC693ALG222 supports GE's iFIX software for programming and monitoring, and users can easily set parameters, program writing and real-time monitoring through a graphical interface, which improves development efficiency and system maintainability.
Multiple input types are supported: The input type of the module can be unipolar or bipolar, and the appropriate input type can be selected according to the actual needs to adapt to different devices and control systems.
Easy integration: IC693ALG222 has standardized interfaces and specifications, which can be easily integrated with various types of PLC and industrial control systems, reducing the integration cost and difficulty.
However, IC693ALG222 also has some disadvantages:
High power requirements: The module requires a stable power supply. If the power supply fluctuates greatly, its normal operation may be affected.
Higher price: Compared with other brands of analog input modules, IC693ALG222 has a higher price, which may increase the cost of the entire control system.
In summary, the IC693ALG222 has the advantages of high precision, multi-channel input, easy programming and monitoring, support for multiple input types and easy integration, etc., which is suitable for the analog input needs of various industrial automation control systems.
Its application scenarios include but are not limited to the following aspects:
Industrial automation control: In the industrial automation control system, a large number of analog input signals are needed to monitor various parameters, such as temperature, pressure, flow, etc. IC693ALG222 can be used as an expansion module of PLC to receive these analog signals and convert them into digital signals to facilitate the processing and calculation of the control system.
Power industry: In the power industry, power plants, substations, etc. need to be monitored and controlled to ensure the stable operation of the power system. IC693ALG222 can be used to receive analog signals from various sensor outputs, such as temperature, pressure, flow, etc., and transmit these signals to PLC or industrial control systems for processing.
Petroleum and Chemical industry: In the petroleum and chemical industry, various fluids need to be monitored and controlled, such as level, flow, pressure, etc. IC693ALG222 can be used to receive these analog signals and transmit them to a PLC or industrial control system for processing and calculation.
Medical equipment: In medical equipment, it is necessary to monitor various physiological parameters, such as blood pressure, ECG, etc. IC693ALG222 can be used as the analog input module of medical equipment, receive these analog signals, and convert them into digital signals, which is convenient for equipment processing and calculation.
In summary, IC693ALG222 has a wide range of application scenarios, including industrial automation control, power, petroleum and chemical industry, and medical equipment. Its high precision and stability make it able to meet the needs of a variety of different fields.
