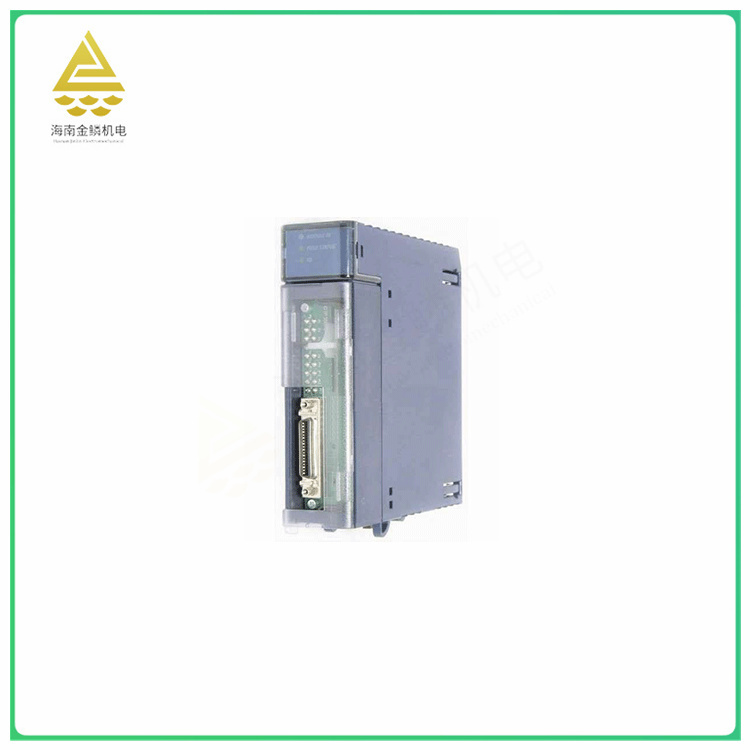

The IC695ALG708 is a programmable automation controller (PAC) analog output module for GE's RX3i systems. This module provides eight output channels, and each channel can be configured for a current signal of 0 to 20mA or 4 to 20mA, and a voltage signal of ±10V or 0 to 10V.
In addition, the IC695ALG708 module has a 15.6 to 15.9 bit ADC conversion resolution, providing high accuracy and stable analog output. The module is also available in a non-isolated design, making it suitable for applications that require isolation.
The analog output module of the IC695ALG708 Programmable automation controller (PAC) is a module for converting digital signals to analog signals. It allows the PAC system to output analog signals to control external devices or interact with other analog systems.
The main function of the analog output module is to convert the digital signal inside the PAC system into an analog signal and output it to the external device. It usually includes the following sections:
Output interface: IC695ALG708 Interface used to output analog signals, usually using analog signal output terminals or cables.
D/A converter: The core part of the digital signal into the analog signal, which converts the digital signal into the corresponding analog signal at a certain conversion rate.
IC695ALG708 signal conditioning: The output analog signal conditioning, such as filtering, amplification, attenuation, etc., to meet the requirements of external equipment.
Data processing: The converted analog signal is processed, such as data filtering, average value calculation, range conversion, etc.
The main features of the analog output module include:
Multi-channel: IC695ALG708 usually supports multiple analog output channels and can output multiple analog signals at the same time.
IC695ALG708 resolution: Applications with different resolutions to meet different accuracy requirements.
Output range: Support different output ranges, such as voltage, current, etc.
Refresh rate: Different refresh rates can be set, and the IC695ALG708 adjusts according to the changing speed of the output signal.
Isolation protection: Provides isolation protection between the output signal and the system to prevent interference and damage.
Analog output module is widely used in industrial automation, process control, instrumentation and other fields. Their IC695ALG708 can be used to control actuators, regulating valves, frequency converters and other external equipment to achieve the control and regulation of process parameters. IC695ALG708 When selecting the analog output module, it is necessary to consider the output signal type, range, resolution, refresh rate, communication interface and other factors to meet the specific application needs.
