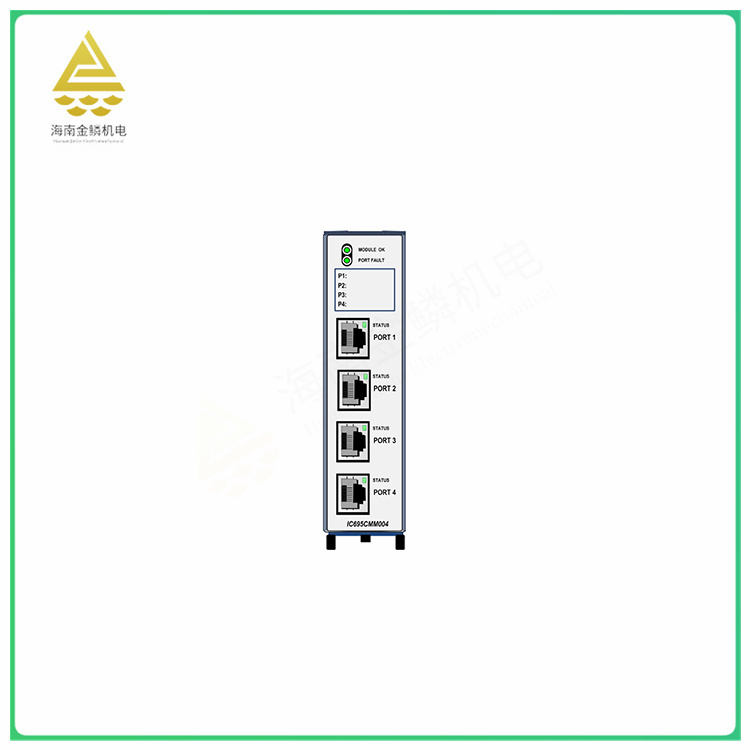

The IC695CMM004 is a serial communication module that is part of the GE Fanuc RX3i family. It provides four separate, isolated serial communication ports, and up to six such modules can be located on the main PACSystems RX3i backplane. Features of each module include software-configurable RS-232, RS-485, and RS-422 serial communication, baud rates ranging from 1200 to 115.2k baud, and fault status reporting. It also supports baud rates from 1200 to 115.2k baud rates and has software-configurable RS-232, RS-485 and RS-422 serial communication capabilities. In addition, the IC695CMM004 module complies with ATEX, CE, 1604 and UL/CUL standards and can be plugged in and out when the case is powered on.
The IC695CMM004 serial communication module is suitable for a variety of industrial automation and process control scenarios. Because it provides four independent, isolated serial communication ports, it can meet the serial communication needs between multiple devices. Specifically, application scenarios for the IC695CMM004 module may include, but are not limited to:
Industrial automation production line: In the industrial automation production line, data transmission and communication between multiple devices are required, the IC695CMM004 module can provide reliable serial communication functions to achieve data exchange and control between devices.
Smart meters and sensor networks: Smart meters and sensor networks need to transmit data in real time, and the IC695CMM004 module can be used as the interface for data transmission to realize the communication between the device and the main controller.
Industrial Internet of Things: In the field of industrial Internet of Things, various devices and systems need to conduct data interaction and communication, and the IC695CMM004 module can be used as a communication bridge between devices to achieve reliable data transmission.
IC695CMM004 Serial communication module is a component or circuit used to achieve serial communication between devices. It allows devices to transmit data via serial interfaces such as UART, SPI, I2C, etc.
The main functions of the serial communication module include:
Data sending and receiving: Sending data to or receiving data from other devices via a serial interface.
Data conversion: The IC695CMM004 converts parallel data into serial data for transmission, or serial data into parallel data for device processing.
Baud rate setting: Different baud rates can be set to meet different communication requirements.
Parity check: The parity check function is used to detect errors in data transmission.
Flow control: Support flow control mechanisms, such as hardware flow control or software flow control, to ensure the stability and reliability of data transmission.
Protocol support: IC695CMM004 can support a variety of serial communication protocols, such as RS-232, RS-485, MODBUS, etc.
IC695CMM004 Interrupt processing: Capable of generating an interrupt signal that notifies the device's processor that data has been received or sent.
Serial communication module is widely used in various electronic equipment, such as computer, microcontroller, sensor, instrument and so on. They can be used to realize data exchange between devices, communication with external devices and connection with the host computer. IC695CMM004 When selecting a serial communication module, it is necessary to consider factors such as communication protocol, baud rate, interface type, and compatibility to meet specific application requirements.
