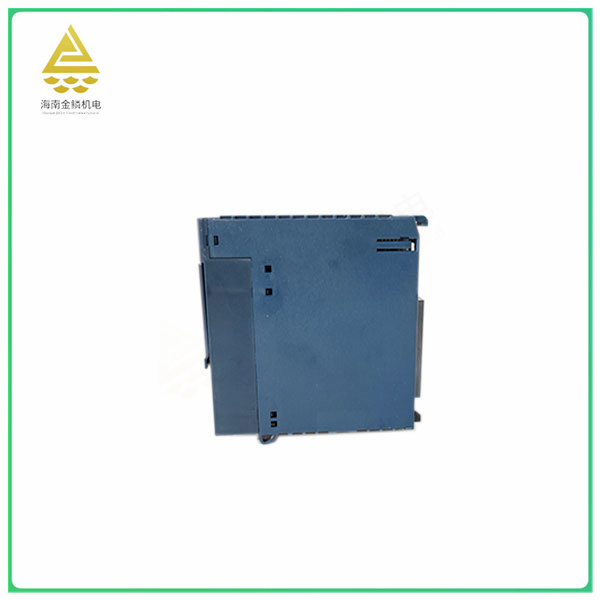

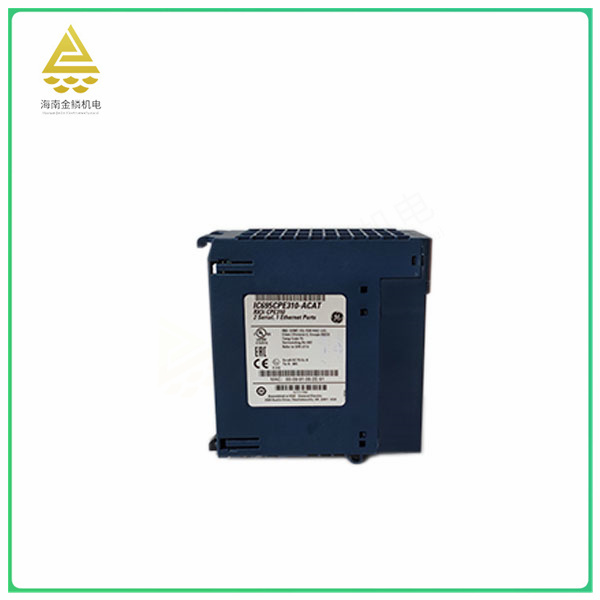

The IC695CPE310 is a central processing unit (CPU) module that is part of the PACsystem RX3i product category. Its main function is to provide logical execution, calculation and communication capabilities for the system. Specifically, the module has the following features:
Powerful processing power: The IC695CPE310 uses a 1.1GHz microprocessor speed and a Boolean logic execution speed of 0.72 ms/k, which can quickly process a variety of logic operations and instructions.

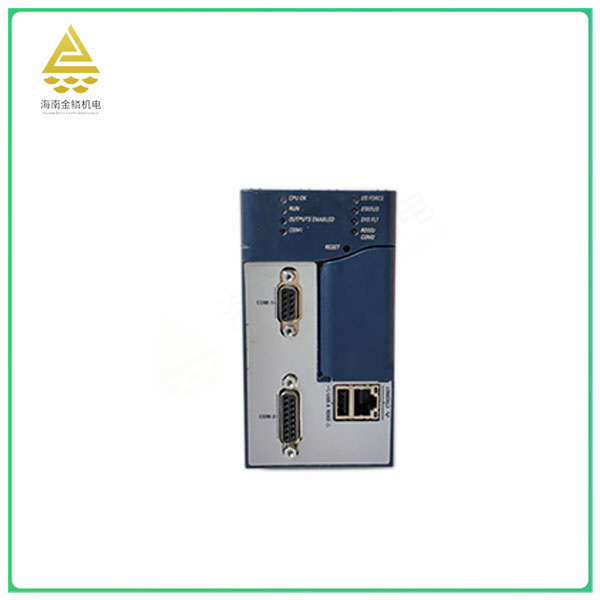

Multiple communication interfaces: The module is equipped with multiple communication interfaces, such as two serial ports (one RS232 and one RS485 port) and an Ethernet communication interface, which can easily communicate with other devices or systems.
Large capacity storage: The IC695CPE310 can accommodate up to 32K bits of discrete input and output signals, as well as 32K words of analog input and output capacity. In addition, the module offers a battery-powered memory with a capacity of 10 MB for storing data and programs.
Multiple communication protocols are supported: For Ethernet ports, the supported protocol is SRTP, the data transmission rate is 10/100 Mbaud, and the automatic negotiation function is supported. In addition, the module also supports a variety of communication protocols such as Ethernet /IP, Modbus TCP/IP, OPC UA, EGD, PROFINET, DNP3, Power Station, IEC-61850, IEC-104, HART Passthrough, etc.
Programmable and redundant configuration: The IC695CPE310 supports program development using the standard IEC 61131-3 programming language, including ladder diagrams, function block diagrams, etc. In addition, the module supports redundant configuration to improve system reliability and fault tolerance. By using multiple IC695CPE310 modules for redundancy, the system can seamlessly switch to a backup module if one module fails.
To sum up, IC695CPE310 is a powerful, rich communication interface, programmable and support redundant configuration of the CPU module. It can be widely used in various industrial control fields to meet various complex logic operations and data processing needs.

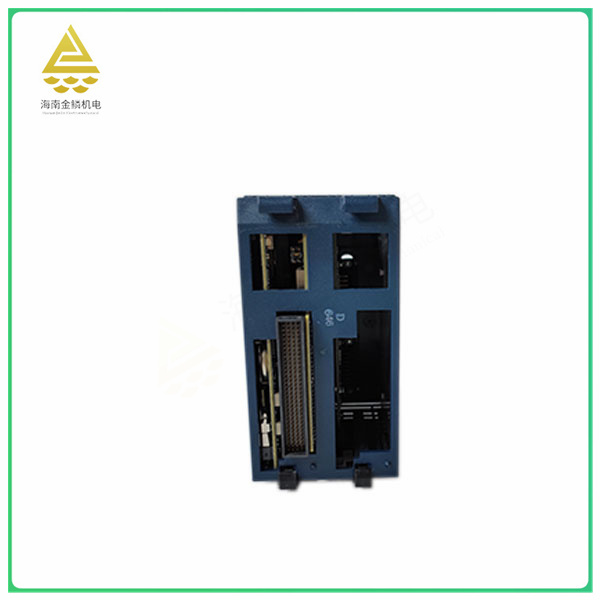

The IC695CPE310 is a central processing unit (CPU) module designed to control machines, processes and material handling systems in real time. It communicates with I/O and smart options modules through dual-purpose PCI and serial backplanes, and has powerful processing power to quickly respond to various logical operations and instructions.
In addition, the IC695CPE310 also has a variety of communication interfaces, such as two serial ports and an Ethernet communication interface, which can easily communicate with other devices or systems.
It can accommodate up to 32K bits of discrete input and output signals, as well as 32K words of analog input and output capacity. In addition, the module offers a battery-powered memory with a capacity of 10 MB for storing data and programs.
To sum up, the main use of IC695CPE310 is as a core component in the real-time control system, to achieve logical operation, calculation and communication functions, and to exchange and control data with other equipment or systems.
It can accommodate up to 32K bits of discrete input and output signals, as well as 32K words of analog input and output capacity. In addition, the module offers a battery-powered memory with a capacity of 10 MB for storing data and programs.
