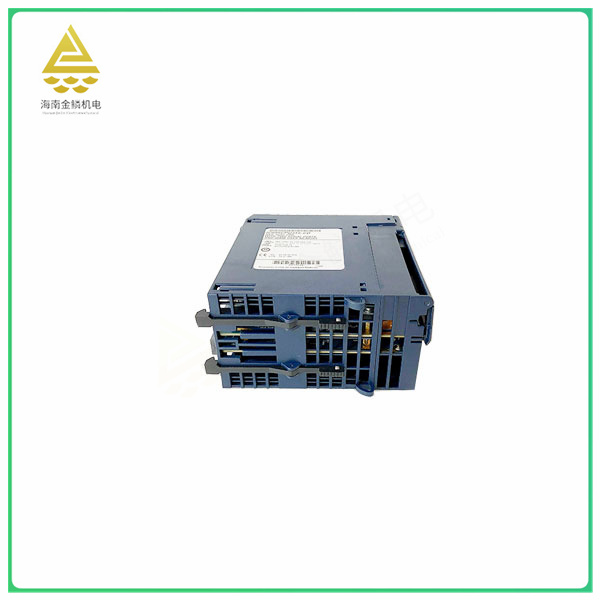

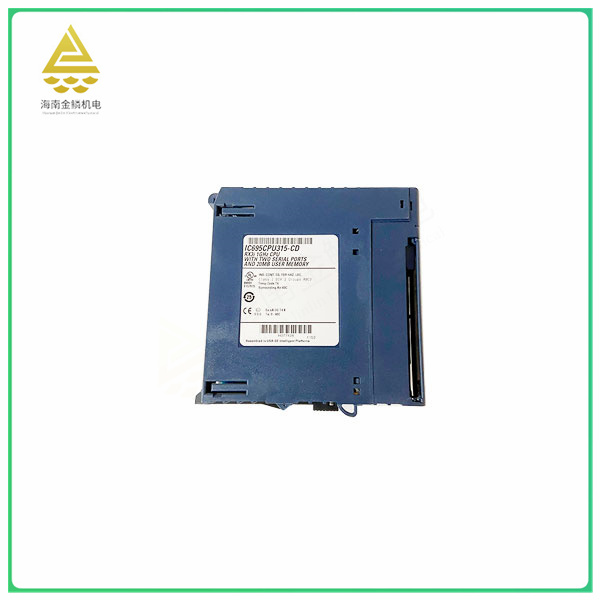

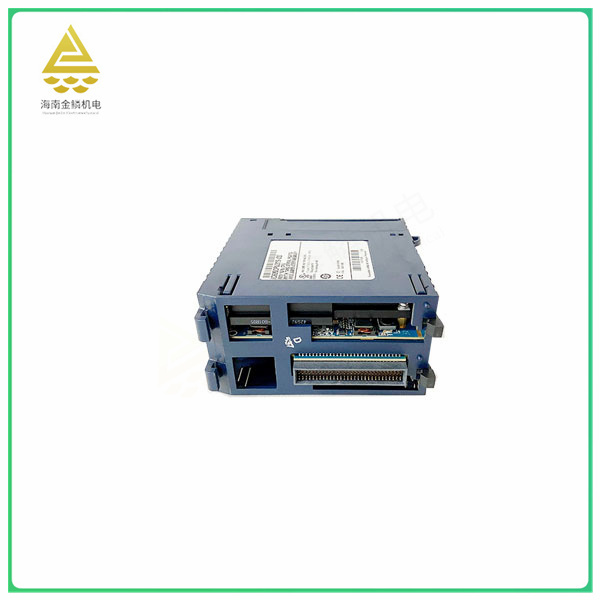

The IC695CPU315-CD is an RX3i PacSystems 1.0 Gigahertz Celeron M CPU with 20 MB of user memory.
It has a variety of features, such as automatic positioning of symbolic variables, allowing the use of any amount of user memory. It also supports 32 kb of memory reserved for discrete I/O and 32 kb of memory reserved for analog I/O. Up to 512 blocks are supported, each 128 KB in size. The IC695CPU315-CD CPU complies with PCI version 2.2.
Two integrated serial ports are provided on the module, one port supports RS-232 communication and the other port supports RS-485 communication. In addition, it supports three serial protocols, including serial I/O, Modbus RTU slave, and SNP.
The nominal current consumption of the IC695CPU315-CD CPU module is 1.2 amps at 5 volts DC and 1 amp at 3.3 volts DC. Operating temperature range is 32 to 140 degrees Fahrenheit.
IC695CPU315-CD CPU modules are commonly used in a variety of industrial control and automation scenarios, including but not limited to:
Automated production line: IC695CPU315-CD can be used to drive and control various actuators on the production line, such as conveyor belts, mechanical arms, lifting platforms, etc., to achieve automated production processes.
Robot technology: IC695CPU315-CD can be used to drive and control the joint movement of the robot, end effectors, etc., to achieve accurate motion control.
Chemical and Process control: The IC695CPU315-CD can be used to drive and control a wide range of valves, pumps and actuators for precise flow, pressure and temperature control.
Precision instruments: IC695CPU315-CD can be used to drive and control various moving parts of precision instruments, such as focus adjustment, platform movement, etc.
