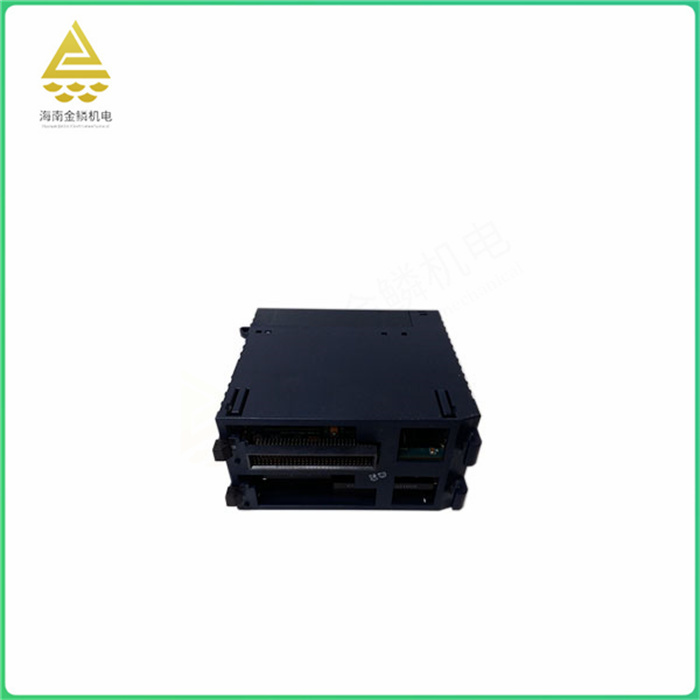

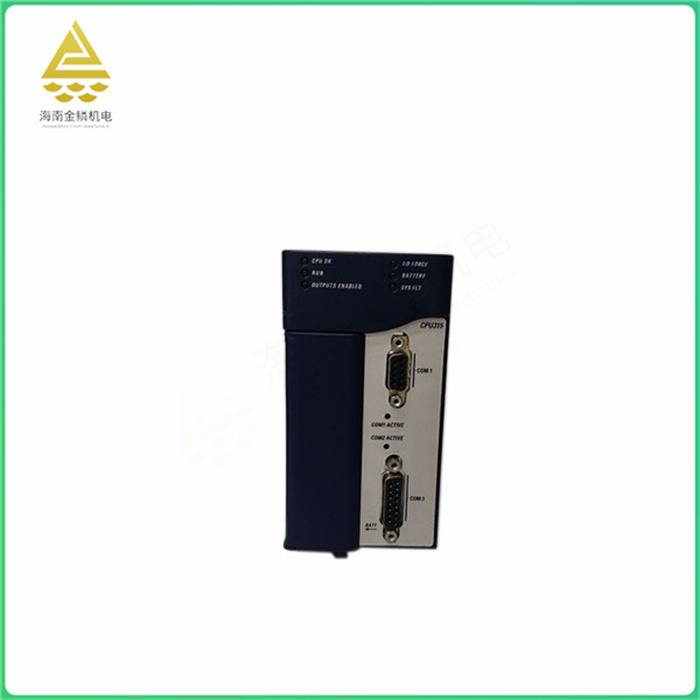

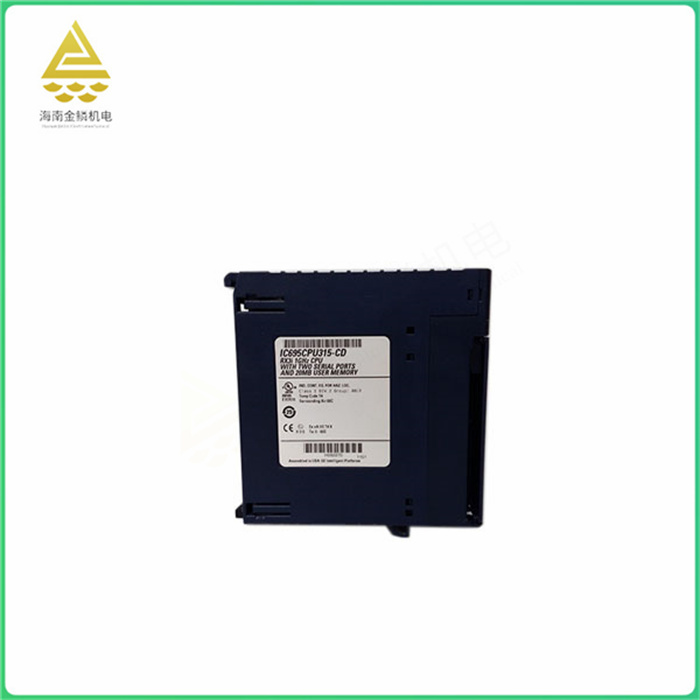

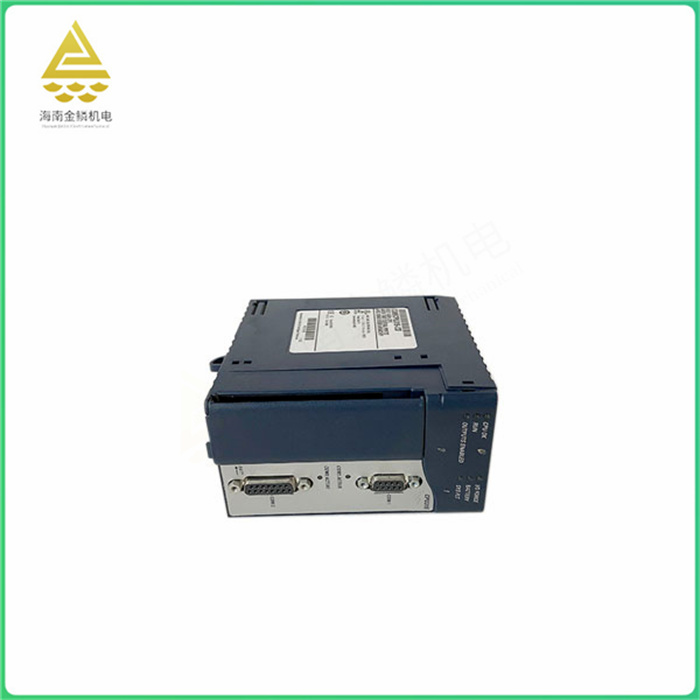

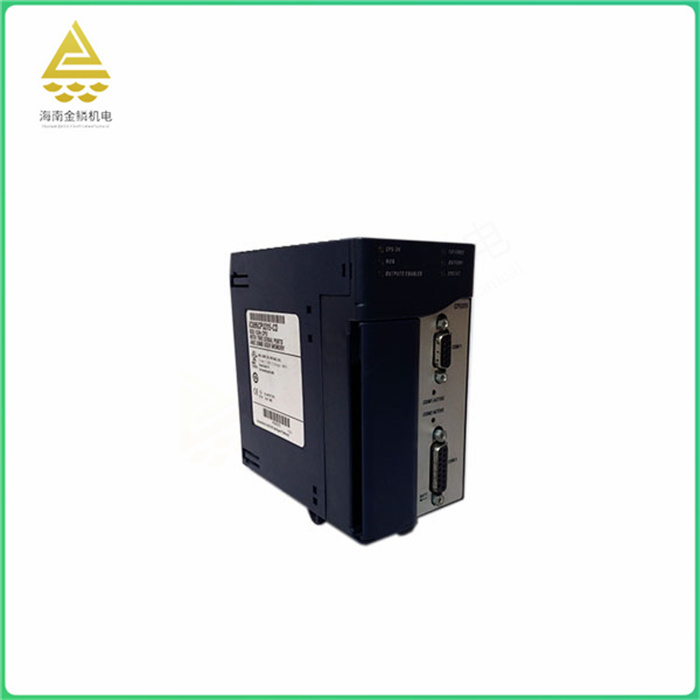

The GE IC695CPU315Module is a high-performance CPU module designed for industrial control applications.
It provides fast and reliable processing power, making it suitable for demanding control systems.
Product parameters:
Model 1 :IC695CPU315
One power supply :24V DC
One memory :64mb RAM, 64mb Flash
One communication port: Ethernet, serial, USB
A working temperature: 40°C~ 70°C
Overall dimensions :135mm x 125mm x 50mm
The GE Fanuc IC695CPU315 CPU is an RX3i PacSystems 1.0 GHZ Celeron M CPU with 20 MB of user memory. Accessories that can be ordered with the CPU- include the IC695ACC302 intelligent auxiliary battery, the IC693ACC302 ordinary auxiliary battery and the IC690RBT001 rechargeable battery. Only GEIP-approved auxiliary battery packs can be used for CPU modules. In addition to the battery-powered RAM, the module also includes 20 MB of NVRAM. The IC695CPU315 CPU reserves 32 kilobits of memory for discrete I/O and 32 kilobytes of memory for analog /O, and supports up to 512 blocks of 128KB each. The CPU module supports high-speed serial and RX3i PCU bus. The IC695CPU315 CPU complies with version 2.2 of the PCI standard.
The IC695CPU315 central processor or CPU belongs to the PACSystems RX3i family of products designed by GE Fanuc. Features 20 MB of battery-powered RAM, 20 MB of non-volatile flash user memory, 3.3 volt DC and 1 amp or 5 volt DC, and 1.2 amp power requirements, embedded communication options, operating temperature range of 0 to 60 degrees Celsius, and up to 512 program blocks. It provides a dual backplane to effectively communicate with the 1/o. The module provides 2 serial communication ports, namely RS-232 and RS-485 ports Rack-based Ethernet interface modules can be used to establish Ethernet communication.
The IC695CPU315 CPU can be programmed in a variety of languages, such as ladder diagrams, structured text, functional block diagrams, or the C programming language.
The IC695CPU315 central processing unit is compatible with programmers and HMI devices used to control and monitor the entire plant. It is equipped with a dual backplane that provides a high-speed serial bus and RX3i PCI. The typical Boolean execution speed of this module is 0.047 milliseconds per 1000 Boolean instructions. It is electrically PCI 2.2 compliant.
The main features of the IC695CPU315 CPU include access to mass memory, configurable data and program memory, in-system upgradable firmware, and embedded communications that support serial protocols. It is compatible with most 90-30 series modules, communication modules and display racks. When installing the battery, ensure that the CPU is installed in the rack and power on the rack before connecting the battery. This module is used for real-time control of machines and processes in the plant.
The IC695CPU315, a product of the GE Fanuc PACSystems RX3i family, is a 1 GHz central processing unit commonly used in a variety of industrial automation and control systems.
Specifically, IC695CPU315 is commonly used in the following areas:
Motion control: The IC695CPU315 can be used to measure the rotation position and speed of a machine or equipment, enabling high-precision motion control, such as in machine tools, robotics, conveyor belt systems and printing presses.
Position feedback: The IC695CPU315 can be used to provide position feedback to ensure that the actuator or mechanism is operating in a predetermined path and position.
In addition, the IC695CPU315 has the following features:
High performance: The built-in high performance processor can quickly execute a variety of control logic and algorithms, thereby improving the response speed and data processing ability of the system.
Programmability: Provides a programmable environment that users can configure and program using a specific programming language or software to meet a variety of complex application needs.
A variety of communication interfaces: usually equipped with Ethernet ports, serial ports and other communication interfaces, you can easily exchange and integrate data with other devices or systems.
Storage capacity: With a large storage capacity, you can store programs, data and configuration information, convenient for users to operate and maintain.
High reliability: With multiple protection functions and fault diagnosis capabilities, it can discover and handle faults in time to ensure device stability and reliability.
Scalability: It can be extended and integrated with other devices or systems to facilitate automatic control and monitoring.
Overall, the IC695CPU315 is a high-performance, programmable, reliable and flexible industrial automation product for a wide range of industrial automation and control systems to meet the needs of a wide range of complex applications.
