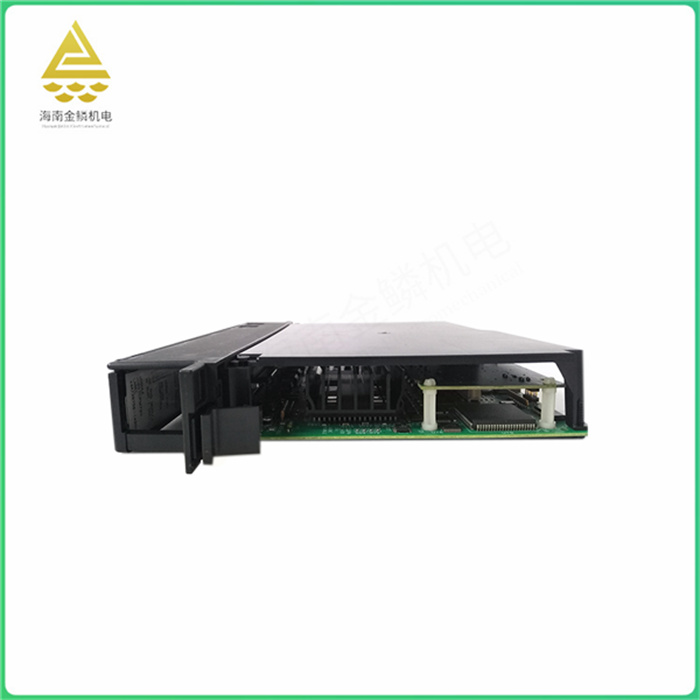

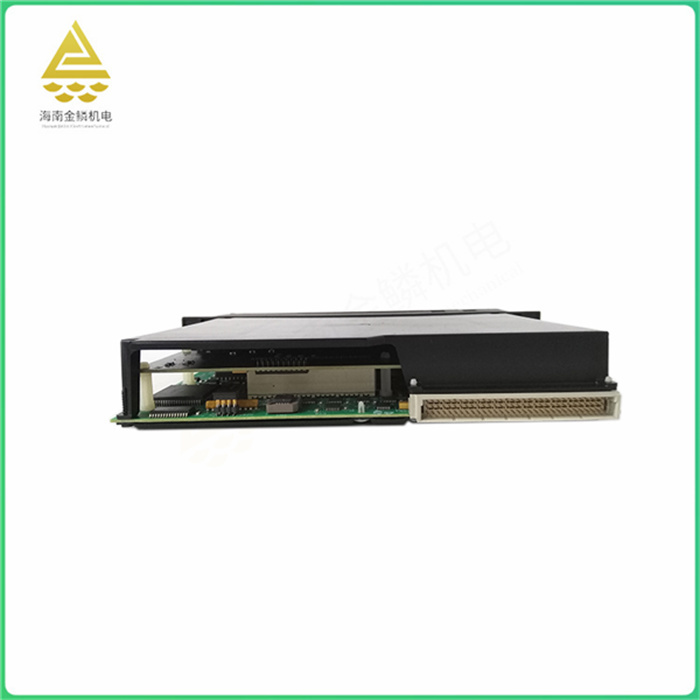

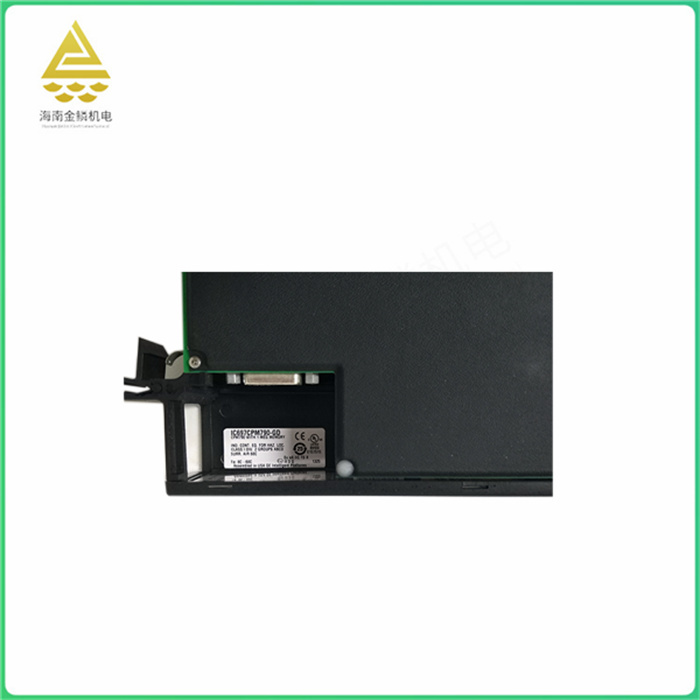

The IC697CPM790-GD is a model in the GE 90-70 series of programmable logic controllers (PLCS). This PLC is designed to meet a variety of challenges with advanced batch processing, triple redundancy and high-speed processing. It can handle a large number of I/O, and has a large user program processing memory, can meet the needs of complex production.
The IC697CPM790 is a 64 MHz CPU manufactured by GE FANUC with computing power using 32-bit floating point and a microprocessor 80486DX2. The CPU utilizes single-slot programming software that performs configuration and programming with Windows or MS-DOS. The IC697CPM790 includes discrete inputs and outputs of up to 12K (mixed simplex mode only). It has flash memory dedicated to the operating system firmware, allowing firmware updates via a connection between the PC and the module serial port.
The user controls the module operation through the programming software, or uses the RUN/STOP three-digit switch to control the module operation through the operation mode. Memory-protected keys or software passwords lock configuration and program data.

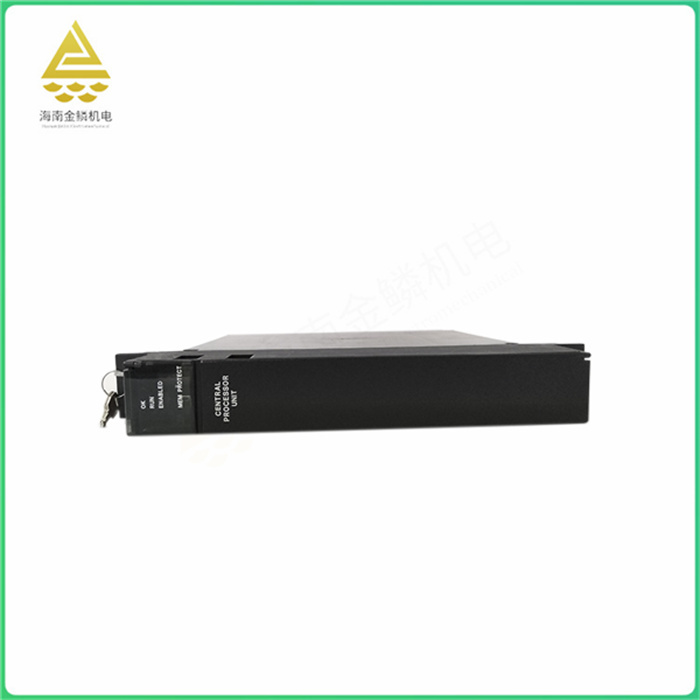

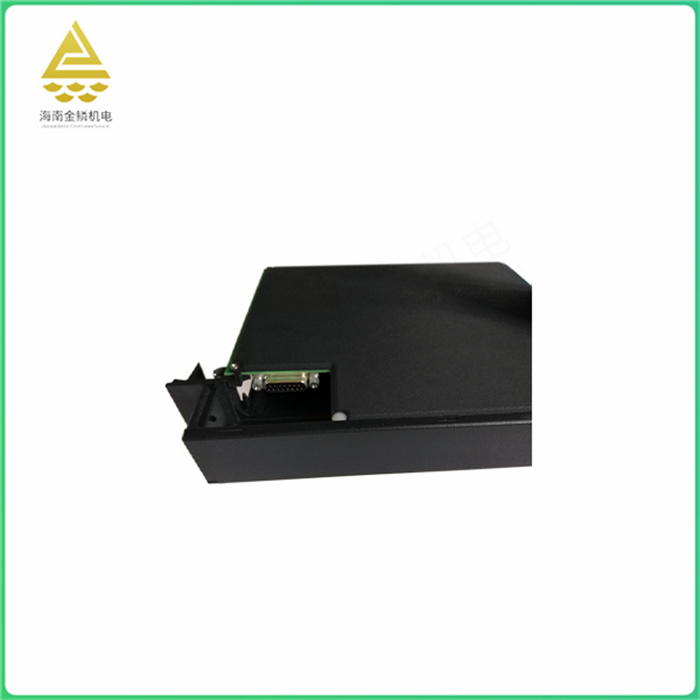

The IC697CPM790 has four green LED indicators indicating the status of the CPU. Air cooling requires fan components. Donkey can connect the bus transmitter module IC697BEM71.3 to the programmer for parallel interface. A Type D connector with 15 pins connects the serial port, which is compatible with RS-485. During actual operation and power-on, the CPU verifies the rack configuration while its alarm function reports any deviations in the programming and/or actual configuration. The IC697CPM790 has a lithium battery that can maintain calendar clock operation, data storage and program memory.
The functions of IC697CPM790-GD include:
Batch processing and redundancy: The IC697CPM790-GD is designed to meet a variety of challenges with advanced batch processing and triple redundancy to handle high volumes of I/O and meet the needs of complex production.
High-speed processing: This type of PLC has high-speed processing function, which can quickly respond to and control various system operations.
Mass storage: It has a relatively large storage capacity, can store programs, data and configuration information, convenient for users to operate and maintain.
Programmability: Users can be configured and programmed using specific programming languages or software to meet a variety of complex application needs.
Communication interface: Usually equipped with a communication interface to exchange and integrate data with other devices or systems.
In addition, the IC697CPM790-GD supports Triple modular redundancy (TMR), which is used to keep the system from shutting down. This TMR setup essentially consists of triple PLC racks, each with a CPU, triple Genius I/O bus, and triple input sensors and triple output loads.
Overall, the IC697CPM790-GD is a powerful, feature-rich PLC for a variety of applications that require high reliability, fast response and heavy I/O processing.
The benefits of IC697CPM790-GD include:
High performance: The IC697CPM790-GD is designed to meet a variety of challenges, with advanced batch processing, triple redundancy and high-speed processing capabilities to handle large amounts of I/O and meet the needs of complex production.
High reliability: Thanks to its triple redundancy design, the system continues to operate even in the event of a single component failure. This design improves the overall reliability of the system.
Flexibility: The IC697CPM790-GD is programmable and can be configured and programmed using a specific programming language or software to meet a variety of complex application needs.
Fast response: Thanks to its high-speed processing function, various system operations can be quickly responded to and controlled.
Mass storage: It has a relatively large storage capacity, can store programs, data and configuration information, convenient for users to operate and maintain.
Communication interface: Usually equipped with a communication interface to exchange and integrate data with other devices or systems.
Safety: Since all four output contacts operate in series, this solution has no engineering and wiring costs and usually does not require manual synchronization of the system, further improving safety.
Overall, the IC697CPM790-GD is a high performance, high reliability, fast response, flexible programmable, large storage capacity and secure PLC for a variety of applications requiring high reliability, fast response and heavy I/O processing.
