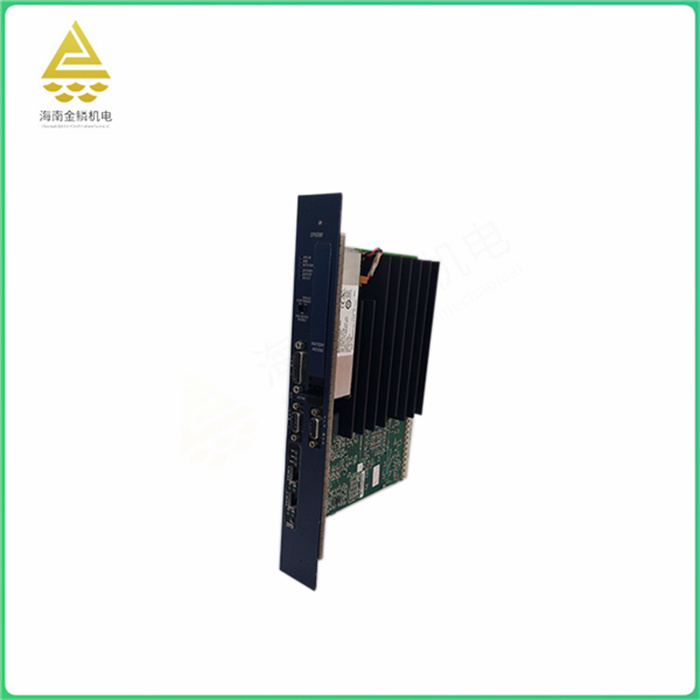

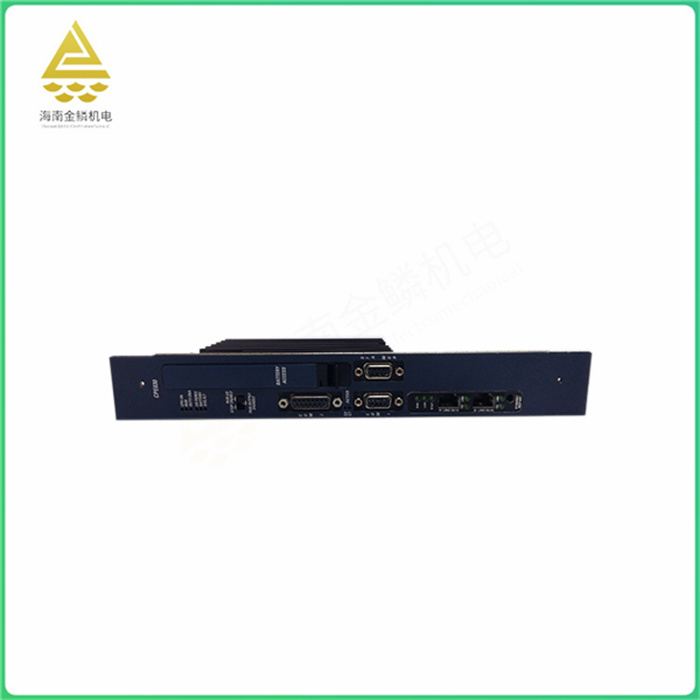

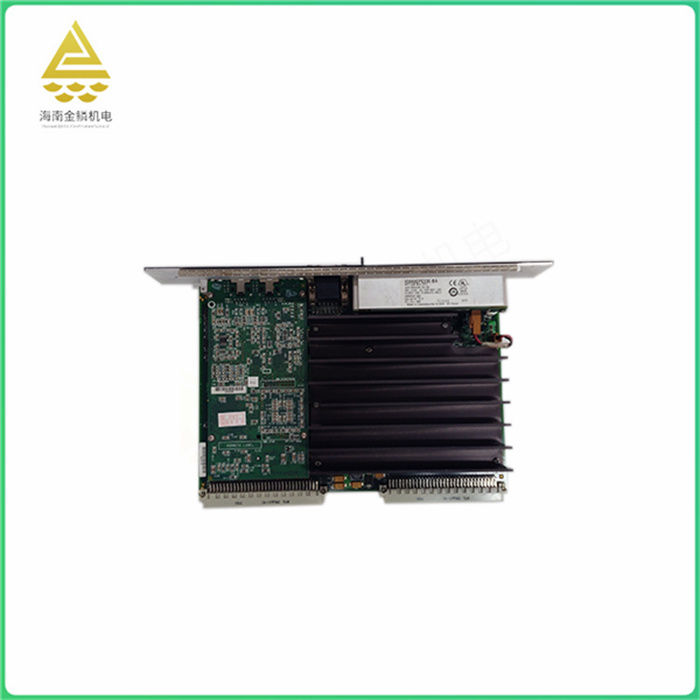

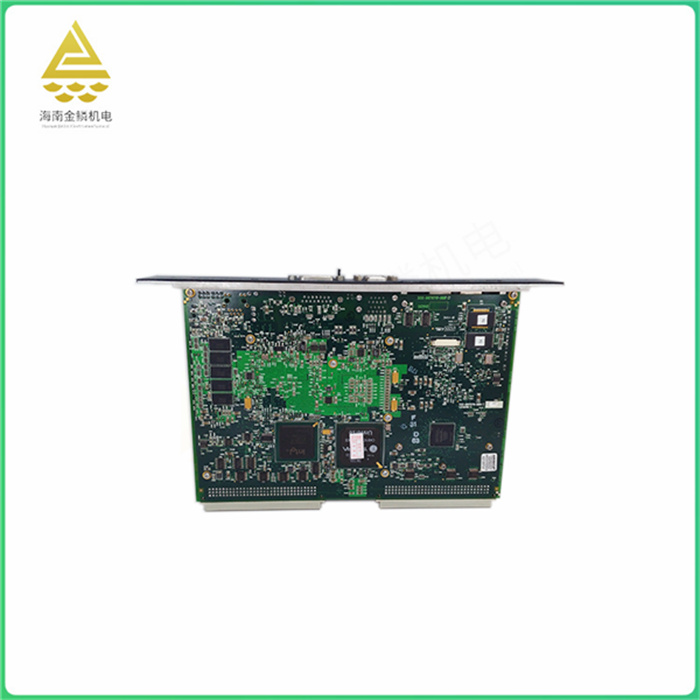

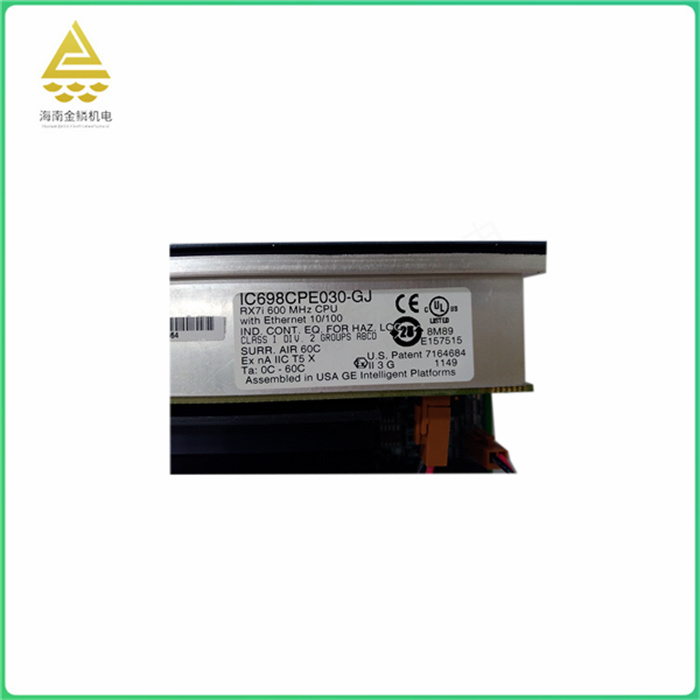

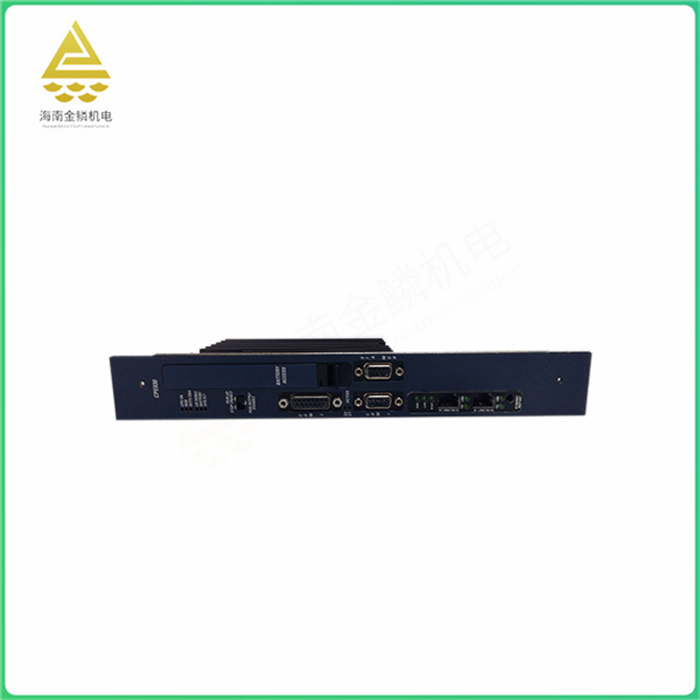

The IC698CPE030 is a 600 MHz CPU(central processing unit) produced by GE Fanuc for the RX7i series. Selected features of the IC698CPE030 include battery-encapsulated user memory and non-volatile flash memory for data, mass memory access, configurable data/program memory, and automatic location of symbol variables. The CPU supports the 90-70 series discrete and analog I/O, communication, and other modules, including the VME module.
The CPU is equipped with a Pentium-M microprocessor. It has 64 MB of user memory and user flash memory. As an RX7i CPU, the IC698CPE030 is configured for real-time control of process and material handling structures.
The IC698CPE030 unit communicates with the I/O and Smart Options modules through a rack-mounted backplane using the VME64 standard format. To communicate with programmers and different HMI devices, an embedded Ethernet port is used. Serial ports using the SNP slave protocol can also be used for communication. After power-on, the IC698CPE030 begins a full self-diagnostic examination. During the initialization process, the LED lights will emit an on or off state in a specific order. After the initialization process is complete, the "OK" LED light will flash and then light up.
The IC698CPE030 is a CPU module commonly used in GE's industrial automation and control systems. It is part of the GE PACSystems RX7i family and is used to control and monitor various equipment and systems in industrial processes.
The CPU module has powerful processing power and can handle complex control logic, data processing and communication tasks to ensure the operation and control of automated systems. It is usually equipped with Ethernet ports, serial ports and other communication interfaces, which can easily exchange and integrate data with other devices or systems.
In addition, IC698CPE030 also has the following features:
Programmability: Users can be configured and programmed using specific programming languages or software to meet a variety of complex application needs.
Large-capacity storage: has a relatively large storage capacity, can store programs, data and configuration information, convenient for users to operate and maintain.
High reliability: With multiple protection functions and fault diagnosis capabilities, it can discover and handle faults in time to ensure device stability and reliability.
Scalability: It can be extended and integrated with other devices or systems to facilitate automatic control and monitoring.
In summary, the IC698CPE030 is a high-performance, programmable, reliable and flexible industrial automation product for a variety of industrial automation and control systems to meet a wide range of complex application needs.
The functions of IC698CPE030 include:
Control and monitoring: As a CPU module, the IC698CPE030 is mainly used to control and monitor various equipment and systems in industrial processes. It can execute complex control logic, automate control, and monitor the operating status and data of the system.
Data processing: The module has a powerful processing capacity, can carry out data processing and analysis, including data acquisition, storage, conversion and transmission.
Communication interface: IC698CPE030 is usually equipped with a variety of communication interfaces, such as Ethernet ports, serial ports, etc., which can be used for data exchange and integration with other devices or systems to achieve information sharing and transmission.
Programmability: Users can be configured and programmed using specific programming languages or software to meet a variety of complex application needs. This enables the IC698CPE030 to adapt to different industrial environments and control requirements.
Storage capacity: This module has a relatively large storage capacity and can store programs, data, and configuration information. This makes it easy for users to operate and maintain, and to save important data and configuration information.
Reliability: The IC698CPE030 has multiple protection functions and fault diagnosis capabilities to detect and handle faults in a timely manner to ensure device stability and reliability. It also supports redundant configurations to further improve system reliability.
Scalability: The IC698CPE030 can be extended and integrated with other devices or systems to facilitate automated control and monitoring. This enables the module to adapt to industrial automation systems of different sizes, and to achieve system expansion and upgrading.
In short, the functions of IC698CPE030 cover control and monitoring, data processing, communication interface, programmability, storage capacity, reliability and scalability, etc., suitable for a variety of industrial automation and control systems, to meet a variety of complex application needs.
