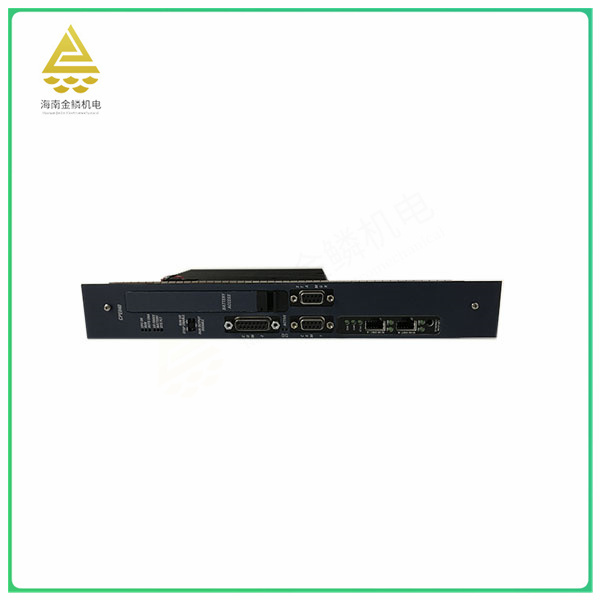

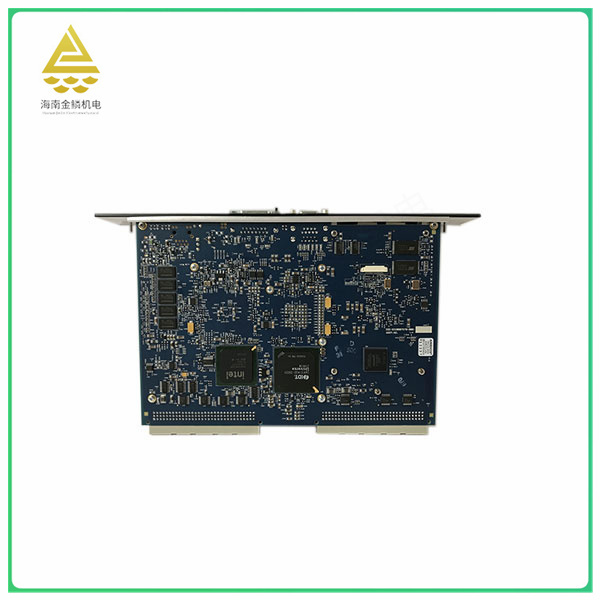

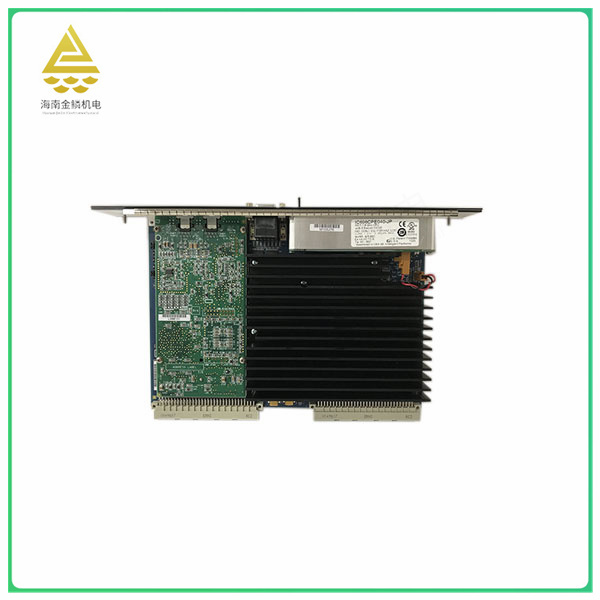

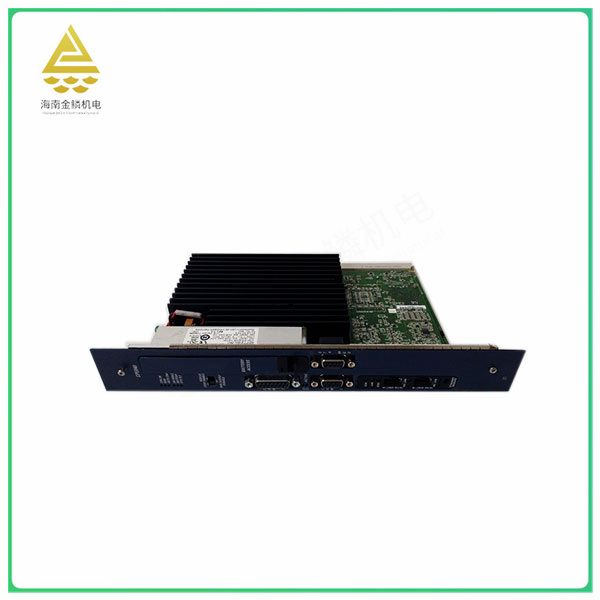

The IC698CPE040-FJ is a CPU module in the GE Fanuc RX7i PACSystem PLC or programmable logic controller.
This CPU module has fast program and application execution speed, considerable memory capacity, and the ability to upgrade easily. Its load requirements are 6.8 amps at 5 volt DC and 0.003 amps at 12 volt DC and -12 volt DC. It has 64 MB of user memory and a rated processor speed of 1800 MHZ. In addition, it also has a RS-232 compatible port, RS-485 compatible port and other firmware ports.
The IC698CPE040-FJ features include high-speed processing capability, real-time clock, multiple input channels, electrical isolation function, high-speed sampling function, and support for multiple communication protocols.
Specifically, it features an Intel Celeron M 1 GHz processor and 512 MB of user memory, providing high-speed processing power capable of handling complex industrial processes. It also has real-time clock (RTC) support, which keeps time synchronized with the help of a battery. In terms of input channels, it usually has multiple input channels for receiving and processing digital input signals, and the number of channels can vary according to the specific module configuration. In addition, the module card usually has an electrical isolation function to isolate electrical interference between the input signal and other system components to improve the reliability and stability of the system.
In terms of sampling, some module cards may have high-speed sampling functions, which can quickly read and process input signals, and adapt to application scenarios with high real-time requirements. It also supports multiple communication protocols such as Modbus TCP/IP, Ethernet Global Data (EGD), and Simple Network Management Protocol (SNMP), making it easy to connect to other devices on the network.
In addition to the above functions, the IC698CPE040-FJ is also designed to be compact and suitable for industrial environments. It has a wide operating temperature range and is resistant to vibration and shock. These characteristics make it widely used in the manufacturing industry, which has a large number of open-loop sequence control based on switching quantity, and the control of chain protection action in accordance with logical relations unrelated to sequence and time series.
Overall, the IC698CPE040-FJ is a reliable and efficient CPU module that provides high-speed processing and reliable communication for the RX3i PLC family.
