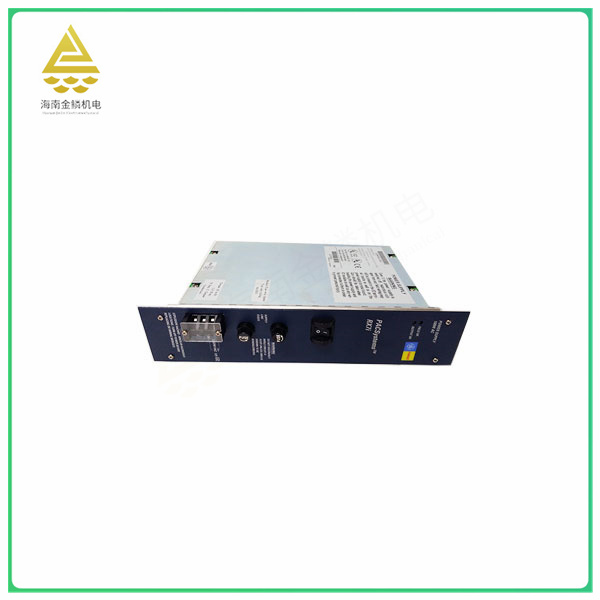

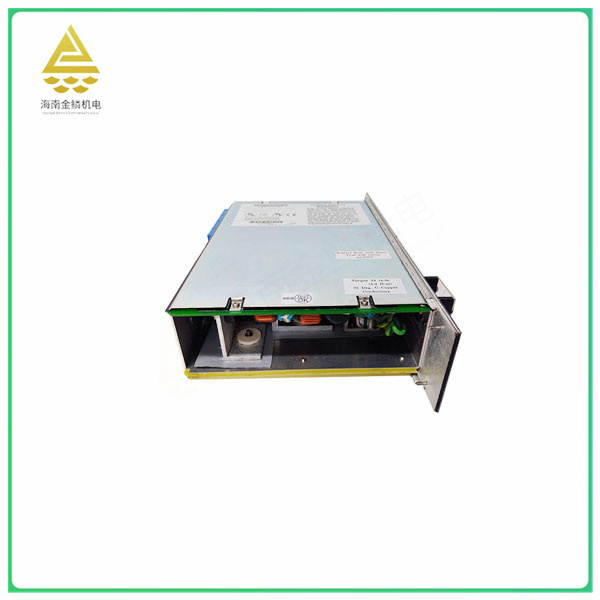

The IC698PSA100 is a PACSystems RX7i power module manufactured by Emerson Automation. Install in the leftmost slot of any RX7i standard rack, specifically slot 0. It is equipped with spiral input terminals and is designed for input voltage ranges from 85 to 264 VAC(nominal voltage 120/240 VAC), frequencies from 47 to 63 Hz and 100 to 150VDC(nominal voltage 125 VDC).
Power protection: such as overcurrent protection, overvoltage protection, etc., to ensure that the connected device will not be affected by power problems.
Power monitoring: Some modules may provide power status monitoring, allowing users to monitor the working status of the power supply in real time.
Diagnosis and alarm: The IC698PSA100 power adapter module may be able to detect power problems and send an alarm signal when needed.
The IC698PSA100 is a multi-function power module with the following functions and features:
Multi-channel power output: The module usually has multiple power output channels, which can provide power with different voltages and currents to meet a variety of different application needs.
Power protection function: Including overcurrent, overvoltage, and short circuit protection, can prevent the system from being affected by power failure to ensure system stability and security.
Modular design: allows users to add or change modules according to the needs of the application, improving the flexibility and maintainability of the system.
Communication interface: The IC698PSA100 multifunctional power module usually has a communication interface that can communicate with other modules and systems to transmit power status and monitoring information.
Programmable features: Some power modules have programmable features that allow users to configure power output parameters to suit the requirements of a specific application.
Multiple operating voltages: It can operate in the voltage range of 85 to 264 VAC or 100 to 150 VDC to adapt to different power conditions.
High efficiency and low heat dissipation: ensures stable performance of the power module over long periods of operation, while reducing the need for cooling systems.
High output power density: Provides high output power in a small volume, saving installation space.
Wide input frequency range: Can adapt to different power supply frequencies, including standard frequency and variable frequency power supplies.
High reliability: Through strict quality control and testing, to ensure stable operation in a variety of harsh environments.
In general, the IC698PSA100 multi-function power module has rich features and excellent performance, which is suitable for a variety of applications requiring stable and efficient power supply.
