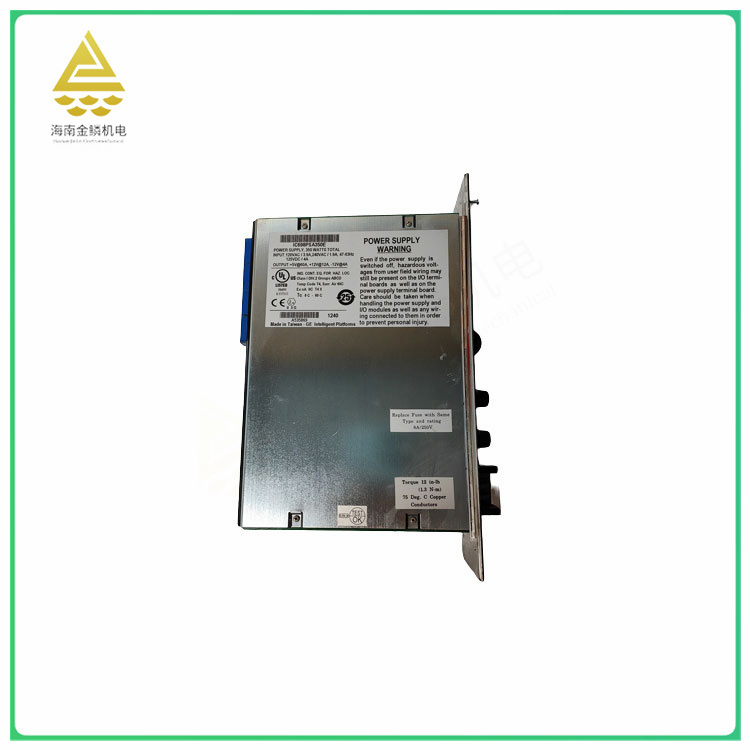

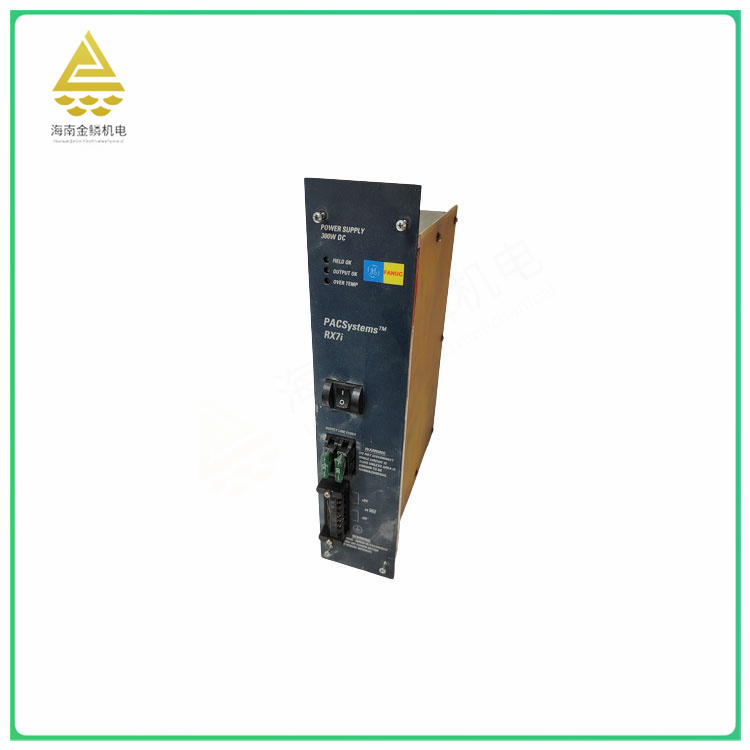

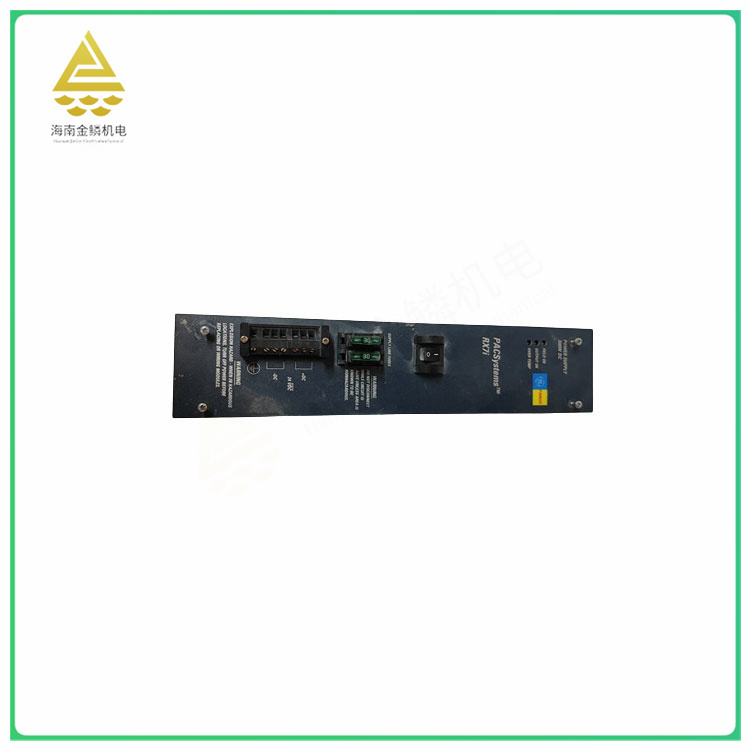

The IC698PSA350E is a power module from GE and a member of the GE family of programmable controllers
(PLC) system. The module provides 24V DC power to power other modules and devices in the PLC system.
The IC698PSA350E is a power supply module primarily used in industrial automation and control systems from General Electric (GE). It provides a stable DC power supply to power the entire control system. Similar to the IC698PSA350D, the IC698PSA350E also has a variety of protection features to ensure stable operation of the system and is easy to maintain and debug.
In practical applications, the IC698PSA350E power supply module is widely used in various industrial automation equipment and systems, such as power, chemical, pharmaceutical, food processing and other fields. It can provide a reliable power supply, ensure the stable operation of the equipment, and improve production efficiency and product quality. In addition, the module also has the characteristics of energy saving and environmental protection, which can reduce energy consumption and reduce the impact on the environment.
In addition to the application scenarios mentioned above, the IC698PSA350E may also be used in the following situations:
Robot control: This module can be applied in the robot controller to provide a stable energy supply for the robot and ensure its normal operation.
Intelligent manufacturing: In the intelligent manufacturing system, the IC698PSA350E module can cooperate with other equipment to realize the automation and intelligence of the production process.
Smart home: In the smart home system, the module can provide a stable power supply for various household devices to ensure the normal operation of the equipment.
In short, the IC698PSA350E is a highly reliable and stable power supply module with a variety of protection functions and a wide range of application prospects.
IC698PSA350E power module features mainly include the following aspects:
Wide input voltage range: The module can operate in a voltage range of 85 to 264 VAC or 100 to 150 VDC, enabling it to adapt to different power supply environments.
Ac operation power factor correction: This feature helps optimize power usage efficiency and reduce energy waste.
Simple slide-in rack mounting structure: This design makes module installation and removal easy and conducive to improving maintenance efficiency.
Output channel control: The module is equipped with a two-position on/off logic level switch, located on the front panel, which enables or disables the output channel without interfering with the AC line input.
Power indicator and alarm function: The green LED indicator on the module is used to monitor the status of the field and output, and these indicators light up when the power supply is within an acceptable range and the DC output channel is operating normally. If the critical supply temperature is too high or there is a problem with airflow, the module's unique red LED alerts the user.
Multiple protection: In addition to electronic short circuit protection, overcurrent and overvoltage fault protection is also provided to ensure that the module can operate safely under various abnormal conditions.
High output power: At ambient temperatures of 0 to 60°C, the module allows a total output power of 100 watts without forced air cooling.
Multiple output voltages: The module offers +5 volts DC, +12 volts DC and -12 volts DC outputs to meet the power needs of different devices.
Overall, the IC698PSA350E power module features a wide input voltage range, efficient power factor correction, convenient installation structure, flexible output channel control, intuitive power indication and alarm functions, multiple protection, high output power and multiple output voltages, making it suitable for a variety of industrial automation and control system applications.
