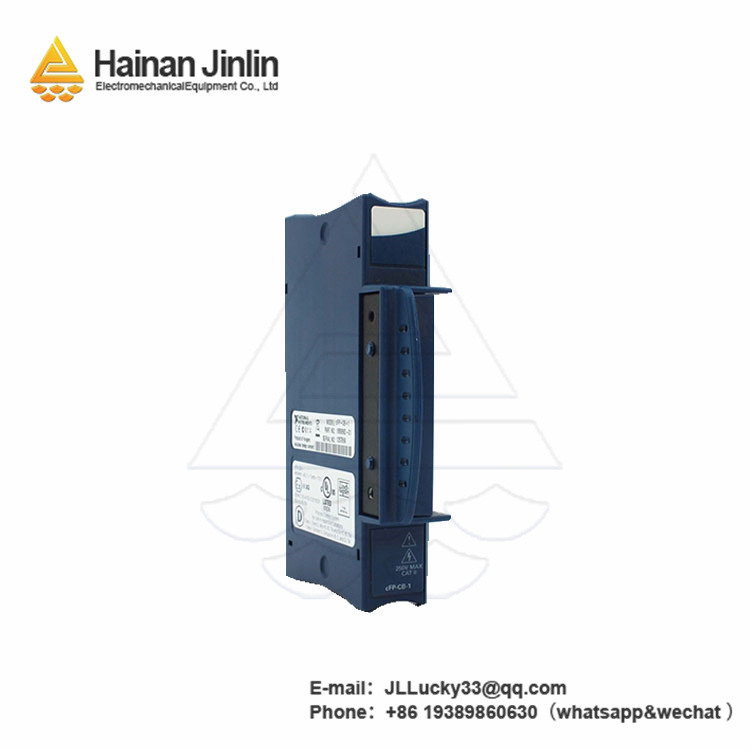

Product Overview
The CFP-CB-1 is a compact and robust communication bridge module designed to facilitate seamless data transfer between industrial field devices and control systems. As a critical connectivity solution in distributed automation setups, the CFP-CB-1 excels in translating protocols, enabling interoperability between legacy equipment and modern control architectures. Its durable design ensures reliable operation in harsh industrial environments, making it suitable for applications in manufacturing, oil and gas, and water treatment facilities. The CFP-CB-1 integrates effortlessly with compatible CFP (Compact FieldPoint) systems, offering a plug-and-play solution that reduces setup time and simplifies system expansion. Whether deployed to connect sensors to PLCs or link remote I/O modules to SCADA systems, the CFP-CB-1 delivers consistent performance, ensuring data integrity and minimizing communication latency.
Hainan Jinlin Mechanical & Electrical is a distributor of industrial control products, specializing in a wide range of brands. We possess extensive industry knowledge and market insights. Adhering to the "Customer First, Forge Ahead" business philosophy, we provide high-quality customer service. We're here for you, dedicated to meeting your needs!
Technical Specifications
|
Parameter
|
Value
|
|
Product Model
|
CFP-CB-1
|
|
|
|
Product Type
|
Industrial Communication Bridge
|
|
Operating Voltage
|
24V DC
|
|
Temperature Range
|
-20°C to 60°C (-4°F to 140°F)
|
|
Supported Protocols
|
Modbus RTU, DeviceNet, Ethernet/IP
|
|
Data Transfer Rate
|
Up to 10 Mbps
|
|
Dimensions
|
85mm x 65mm x 25mm (L x W x H)
|
|
IP Rating
|
IP30 (panel-mounted)
|
Key Features and Benefits
The
CFP-CB-1 is engineered to address the challenges of protocol fragmentation in industrial automation, offering a range of features that enhance connectivity and system efficiency. Its multi-protocol support—including Modbus RTU, DeviceNet, and Ethernet/IP—allows it to act as a universal translator, enabling communication between devices that would otherwise be incompatible. This capability eliminates the need for multiple specialized gateways, reducing system complexity and lowering operational costs.
Durability is a defining attribute of the CFP-CB-1. Constructed with industrial-grade materials and designed to withstand vibration, temperature fluctuations, and electrical noise, it ensures uninterrupted operation in demanding settings such as factory floors or outdoor installations. This reliability is crucial for maintaining continuous production processes, as communication failures can lead to costly downtime.
The CFP-CB-1 also boasts high-speed data transfer capabilities, with rates up to 10 Mbps, ensuring real-time responsiveness in time-critical applications. Whether transmitting sensor data for process control or relaying commands to actuators, the module minimizes latency, enabling precise and timely decision-making.
Its compact form factor makes the CFP-CB-1 ideal for space-constrained environments, such as control cabinets with limited rack space. Additionally, the module’s compatibility with CFP systems allows for easy integration into existing setups, while its plug-and-play design simplifies installation, reducing the need for extensive technical expertise.
Backed by a one-year warranty and our dedicated technical support, the CFP-CB-1 offers long-term peace of mind. Our pre-sales team can assist with system design to ensure optimal protocol mapping, while post-sales support provides troubleshooting to resolve any connectivity issues promptly.
Related Models
- CFP-CB-2 – Advanced version of the CFP-CB-1 with expanded protocol support, including Profibus DP and PROFINET.
- CFP-CB-1-LTE – Wireless variant of the CFP-CB-1 with LTE connectivity, enabling remote monitoring in distributed systems.
- CFP-CB-1-R – Redundant communication bridge, designed to pair with the CFP-CB-1 for failover protection in mission-critical applications.
- CFP-CB-0 – Previous generation model with basic protocol support, compatible with legacy systems using the CFP-CB-1.
- CFP-CB-1-HV – High-voltage tolerant version, suitable for industrial environments with unstable power supplies, an upgrade from the standard CFP-CB-1.
- CFP-CB-3 – High-speed model with data transfer rates up to 100 Mbps, ideal for large-scale data acquisition systems alongside the CFP-CB-1.
- CFP-CB-1-EXT – Extended temperature range module (-40°C to 70°C), engineered for extreme environments where the CFP-CB-1 may not operate reliably.
As a trusted distributor, we provide comprehensive support for the CFP-CB-1, including technical 咨询，integration guidance, and post-sales service. Our one-year warranty ensures reliability, and our team is ready to assist with any customization or additional model requirements.
