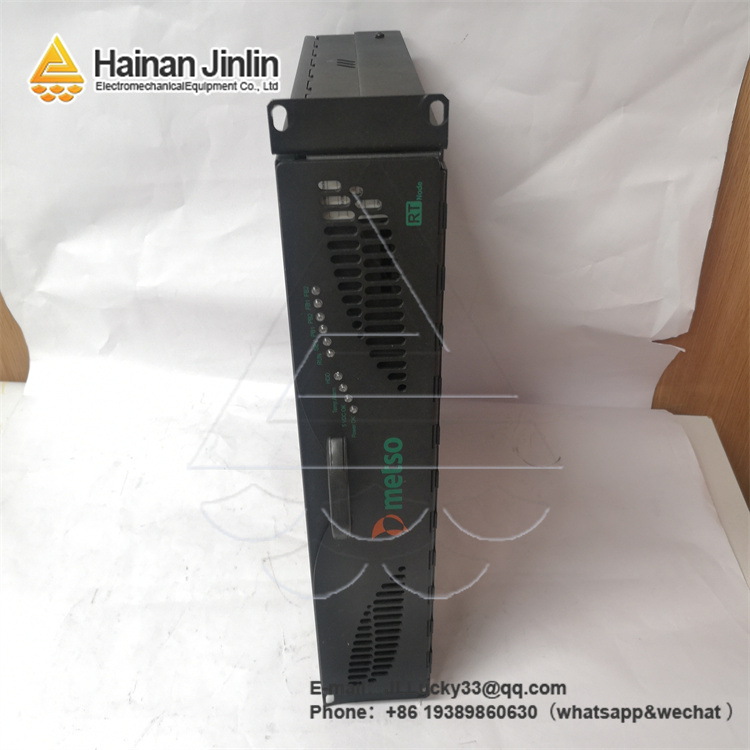

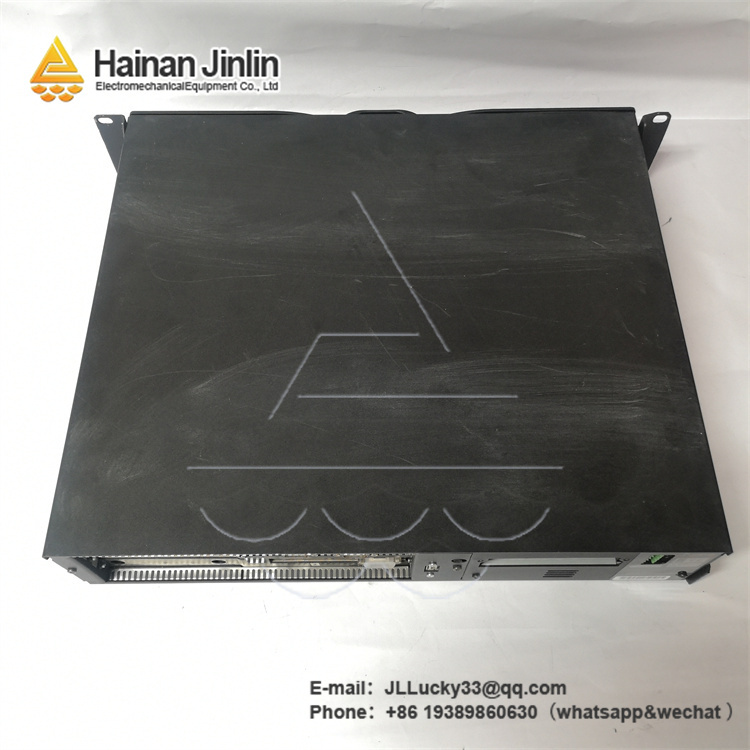

Product Overview
The Metso D200137 is a high-reliability digital input module designed exclusively for Metso’s industrial automation platforms, including the Metso DNA Distributed Control System (DCS) and Metso Outotec mineral processing solutions—critical for mining, aggregates, cement, and chemical industries. As a foundational component for discrete signal acquisition, the Metso D200137 collects digital data from field devices (e.g., limit switches, proximity sensors, emergency stop buttons) and transmits it to central controllers, enabling real-time monitoring of equipment status and safety interlocks. Its ruggedized construction is engineered to withstand the harsh conditions of heavy-industry sites, including dust, vibration, and extreme temperature fluctuations, while maintaining consistent performance. The Metso D200137 also features built-in diagnostic capabilities, allowing operators to quickly identify faulty channels or communication issues—minimizing unplanned downtime in 24/7 production environments. With seamless compatibility with Metso’s proprietary control software and industry-standard mounting, the Metso D200137 ensures easy integration into existing Metso systems, making it a cost-effective choice for system upgrades or replacements.
We are a distributor of industrial control products, specializing in a wide range of brands. We possess extensive industry knowledge and market insights. Adhering to the "Customer First, Forge Ahead" business philosophy, we provide high-quality customer service. We're here for you, dedicated to meeting your needs!
Technical Specifications
|
Parameter
|
Value
|
|
Product Model
|
Metso D200137
|
|
Manufacturer
|
Metso (Outotec)
|
|
Product Type
|
Industrial Digital Input Module
|
|
Number of Input Channels
|
16 Isolated Digital Inputs
|
|
Input Signal Type
|
Dry Contact (NO/NC), 24 V DC PNP/NPN
|
|
Input Voltage Range
|
18-32 V DC
|
|
Operating Temperature
|
-30°C to +70°C (-22°F to +158°F)
|
Key Features and Benefits
Optimized for Metso’s Automation Ecosystem
The Metso D200137 is purpose-built to integrate with Metso’s core systems, such as the Metso DNA DCS (used in large-scale mineral processing plants) and Metso Outotec grinding mills. This native compatibility eliminates the risk of communication delays or signal loss common with third-party modules, ensuring deterministic data transfer between the module and Metso controllers. For example, in a mining operation, the Metso D200137 collects status signals from conveyor belt limit switches and transmits them to the Metso DNA controller—enabling the system to trigger immediate shutdowns if a belt misaligns, preventing equipment damage and ensuring worker safety. This seamless integration reduces system complexity and lowers operational risks.
Rugged Design for Heavy-Industry Durability
Unlike standard digital input modules, the Metso D200137 is engineered to survive the harshest industrial environments. It meets IEC 60068 standards for wide-temperature operation (-30°C to +70°C) and vibration resistance (5 g peak at 10-500 Hz), making it suitable for outdoor mine sites, dusty cement kilns, or high-vibration aggregate crushers. Its IP30-rated housing protects internal components from dust and debris, while corrosion-resistant terminal blocks ensure reliable connections in humid or chemically exposed areas (e.g., chemical processing plants). This ruggedness translates to a longer service life (typically 8-10 years) and lower maintenance costs—critical for remote sites where module replacement is logistically challenging.
Advanced Channel Isolation & Diagnostics
Each of the Metso D200137’s 16 input channels features 500 Vrms isolation, preventing cross-talk between signals and protecting the module from voltage surges caused by faulty field devices (e.g., shorted sensors). The module also includes real-time diagnostic tools: front-panel LEDs indicate channel activity, power status, and fault conditions (e.g., “Overvoltage,” “Open Circuit”), while detailed error logs can be accessed via Metso’s DNA Operator Station software. For instance, if a proximity sensor connected to Channel 5 fails, the Metso D200137 immediately alerts operators and logs the fault code—enabling technicians to replace the sensor without shutting down the entire conveyor system. This targeted troubleshooting reduces mean time to repair (MTTR) by up to 40% compared to non-isolated modules.
Flexible Input Compatibility
The Metso D200137 supports both dry contact (NO/NC) and 24 V DC PNP/NPN signals, making it compatible with a wide range of field devices common in Metso applications. This flexibility allows the module to adapt to diverse tasks: from monitoring emergency stop buttons (dry contact) to detecting the presence of materials via proximity sensors (PNP/NPN). It also accepts a broad input voltage range (18-32 V DC), ensuring stable performance even if the plant’s power supply fluctuates— a common issue in remote mining operations. This versatility eliminates the need for multiple specialized modules, simplifying system design and reducing inventory costs.
Compliance with Global Industry Standards
The Metso D200137 meets strict global standards, including CE (EN 61000-6-2 for EMC immunity), UL 508 (for industrial control equipment), and ATEX Zone 2 (for hazardous areas). It also adheres to Metso’s rigorous quality control processes, undergoing temperature cycling, vibration testing, and electrical stress tests before shipment. This compliance ensures safe operation in explosive environments (e.g., chemical plants handling flammable materials) and simplifies regulatory audits—especially critical for industries like mining, where safety and compliance are tightly regulated.
Related Models
- Metso D200136 – Previous generation of the Metso D200137, offering 8 digital input channels for smaller Metso systems.
- Metso D200138 – Upgraded version of the Metso D200137 with 32 digital input channels for high-density signal acquisition.
- Metso D200140 – Digital output module compatible with the Metso D200137, providing 16 isolated outputs to control valves or alarms.
- Metso D200150 – Analog input module that pairs with the Metso D200137, supporting 4-20 mA signals from pressure/temperature sensors.
- Metso D200139 – Redundant digital input module, a safety-focused companion to the Metso D200137 for mission-critical loops (e.g., mill emergency shutdowns).
- Metso D200160 – Communication interface module that extends the Metso D200137’s connectivity to Profinet networks for remote monitoring.
- Metso D200135 – Compact variant of the Metso D200137 with 16 channels but a smaller form factor for space-constrained control cabinets.
- Metso D200170 – Mixed-signal module (8 digital inputs + 4 analog inputs), ideal for integrating with the Metso D200137 in hybrid process-discrete applications.
About Us
As a certified partner of industry leaders such as Metso, Woodward, and Emerson, we provide key components for industrial automation in mining, aggregates, and process industries. We prioritize professionalism in both pre-sales and after-sales service: our team of Metso-specialized engineers offers technical consultations to help you integrate the Metso D200137 into your existing Metso DNA or Outotec systems, and we provide a one-year warranty on all products—including the Metso D200137—to protect your investment.
Typical Application Areas
- Mining & Mineral Processing: Integration into Metso DNA DCS for monitoring crusher safety interlocks, conveyor belt status, and grinding mill sensors (e.g., using the Metso D200137 to detect mill liner wear via proximity switches).
- Aggregates & Cement: Control of Metso Lokotrack® mobile crushers, where the Metso D200137 collects signals from material level sensors to prevent overloads.
- Chemical Manufacturing: Safety system monitoring (e.g., emergency stop buttons, door interlocks) in batch processing plants, leveraging the Metso D200137’s isolation to protect sensitive controllers.
If you cannot find the model you need, please contact us immediately.
