Product Overview

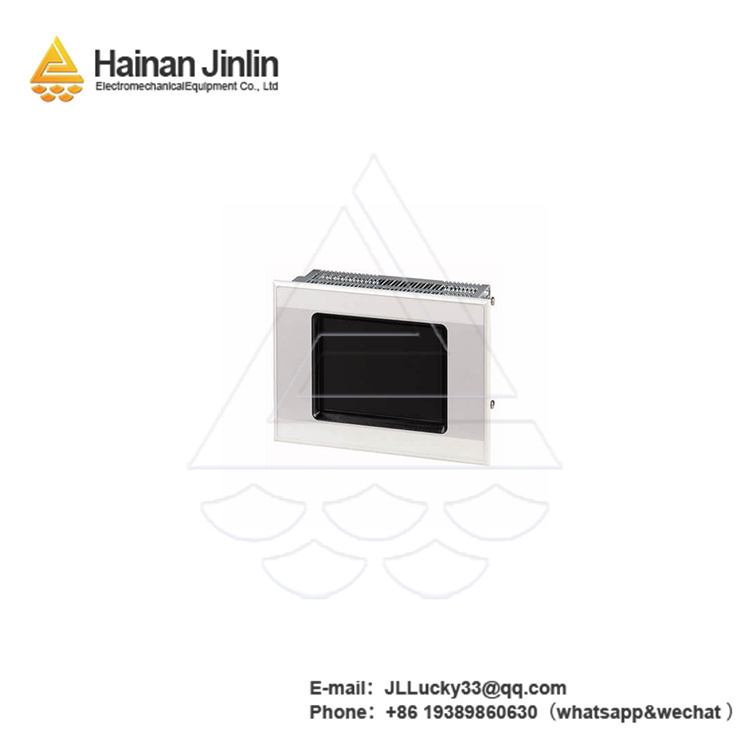

The
XVH-330-57MPI-1-10 is a high-performance human-machine interface (HMI) panel designed for intuitive industrial control and monitoring, serving as a critical bridge between operators and automation systems. Ideal for applications in manufacturing, energy, and process industries, the
XVH-330-57MPI-1-10 enables real-time visualization of system data, alarm management, and manual control of machinery—enhancing operational efficiency and reducing response times to process anomalies.
Core features of the XVH-330-57MPI-1-10 include a 10-inch high-resolution touchscreen, robust processing power, and support for multiple communication protocols, ensuring seamless integration with PLCs, DCSs, and other industrial devices. Its rugged design withstands harsh industrial environments, while its user-friendly interface simplifies operator training and daily use. With a focus on reliability, the XVH-330-57MPI-1-10 ensures continuous operation in mission-critical systems, minimizing downtime and supporting uninterrupted production.
Hainan Jinlin Mechanical & Electrical is a distributor of industrial control products, specializing in a wide range of brands. We possess extensive industry knowledge and market insights. Adhering to the "Customer First, Forge Ahead" business philosophy, we provide high-quality customer service. We're here for you, dedicated to meeting your needs!
Technical Specifications
|
Parameter
|
Value
|
|
Product Model
|
|
|
Product Type
|
Industrial HMI Panel
|
|
Display Size
|
10-inch TFT touchscreen
|
|
Resolution
|
1024 x 600 pixels
|
|
Processor
|
1.2 GHz dual-core ARM Cortex-A9
|
|
Memory
|
1 GB RAM, 8 GB flash storage
|
|
Communication Ports
|
1 x Ethernet, 2 x USB, 1 x MPI/DP
|
|
Operating Temperature
|
0°C to 50°C
|
|
Protection Class
|
IP65 (front panel)
|
|
Power Supply
|
24 VDC (1.5 A typical)
|
Key Features and Benefits
High-Resolution Visualization
The
XVH-330-57MPI-1-10 features a 10-inch TFT touchscreen with 1024 x 600 resolution, delivering crisp, clear graphics for displaying process trends, equipment status, and alarm logs. The high-brightness display ensures visibility even in well-lit industrial environments, while the multi-touch capability allows operators to zoom, pan, and navigate intuitively—reducing the time to access critical information.
Seamless System Integration
Equipped with versatile communication ports (Ethernet, USB, MPI/DP), the XVH-330-57MPI-1-10 connects effortlessly to Schneider Electric’s Modicon PLCs, as well as third-party devices using protocols like Modbus TCP/IP and Profibus. This flexibility makes it suitable for both new installations and retrofits, enabling operators to monitor and control diverse automation systems from a single interface.
Powerful Processing Performance
With a 1.2 GHz dual-core ARM Cortex-A9 processor and 1 GB RAM, the XVH-330-57MPI-1-10 handles complex HMI applications with ease, supporting fast screen transitions and real-time data updates. This processing power ensures smooth operation even when displaying multiple dynamic widgets, such as live pressure gauges, flow meters, or production counters.
Rugged Industrial Design
The front panel of the XVH-330-57MPI-1-10 boasts an IP65 rating, protecting against dust and water jets—making it suitable for installation in factory floors, washdown areas, or outdoor enclosures. Its robust construction withstands vibration (up to 1 g) and temperature fluctuations (0°C to 50°C), ensuring reliable performance in harsh operating conditions.
Simplified Configuration
The XVH-330-57MPI-1-10 is programmed using Schneider Electric’s Vijeo Designer software, which offers a library of pre-built objects, templates, and wizards to accelerate project development. Operators can customize screens with company branding, multilingual support, and role-based access controls, tailoring the interface to specific operational needs.
We stand behind the XVH-330-57MPI-1-10 with a one-year warranty, supported by our team of HMI and automation experts. From pre-sales system design to post-installation training, we provide comprehensive support to ensure the panel delivers optimal performance in your specific application.
Related Models
- XVH-330-57MPI-1-07 – 7-inch variant of the XVH-330-57MPI-1-10, ideal for space-constrained installations requiring basic monitoring.
- XVH-330-57MPI-1-15 – 15-inch model with enhanced resolution (1920 x 1080), offering larger display area than the XVH-330-57MPI-1-10 for complex systems.
- XVH-330-57MPI-2-10 – Advanced version with additional communication ports (Wi-Fi, Bluetooth), expanding connectivity options for the XVH-330-57MPI-1-10.
- VJDS300 – Software license for Vijeo Designer, required for programming the XVH-330-57MPI-1-10 and customizing HMI applications.
- XVH-330-57MPI-1-10-R – Redundant HMI kit, pairing two XVH-330-57MPI-1-10 panels for fault tolerance in mission-critical systems.
- XVH-320-57MPI-1-10 – Lower-cost model with reduced processing power, compatible with the XVH-330-57MPI-1-10 for budget-conscious projects.
- HMIGXO3500 – Schneider Electric’s legacy HMI panel, offering similar functionality to the XVH-330-57MPI-1-10 for retrofits of older systems.
As a certified distributor of Schneider Electric and other leading automation brands, we specialize in delivering reliable HMI and control solutions. Our pre-sales team can assist with panel selection and system integration, while after-sales support includes software configuration, troubleshooting, and operator training. The
XVH-330-57MPI-1-10 comes with a one-year warranty. For more details or to inquire about related products, contact us via WhatsApp: [
