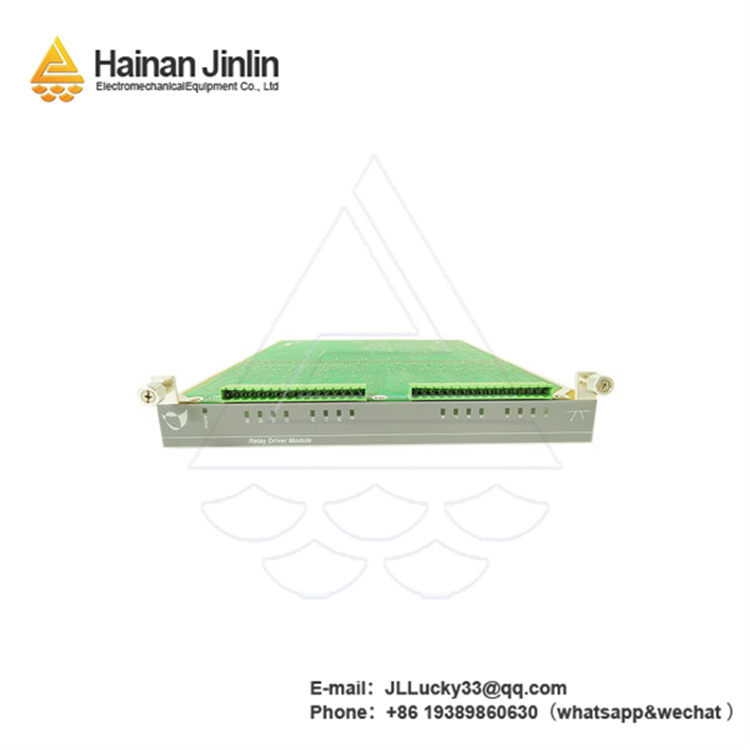

ALSTOM IOP353 Product Description
Product Overview
The ALSTOM IOP353 is a sophisticated industrial I/O (Input/Output) module, a fundamental building block in modern industrial control and automation ecosystems. Engineered by the esteemed ALSTOM, a global leader in power generation and transportation solutions, this module is meticulously designed to interface between industrial field devices and control systems with utmost precision and reliability.
The IOP353 features a compact, yet ruggedized form factor, making it suitable for installation in diverse industrial environments, including those with limited space, high levels of electromagnetic interference, and fluctuating temperatures. Its internal architecture is based on advanced semiconductor technology and high - speed data processing circuitry, enabling rapid and accurate transfer of input signals to control systems and seamless delivery of control commands to actuators.
Hainan Jinlin Mechanical & Electrical, adhering to the "Customer First, Forge Ahead" business tenet, distributes the ALSTOM IOP353 with top - tier customer service, ensuring clients receive comprehensive support from product selection to after - sales maintenance.
Technical Specifications
|
Parameter
|
Value
|
|
Product Model
|
IOP353
|
|
Manufacturer
|
ALSTOM
|
|
Product Type
|
Industrial I/O Module
|
|
Input Channels
|
16 isolated digital inputs (24V DC compatible) 8 analog inputs (4 - 20 mA, 0 - 10V DC selectable)
|
|
Output Channels
|
12 isolated digital outputs (relay - based, 250V AC/30V DC switching capacity) 4 analog outputs (4 - 20 mA, 0 - 10V DC)
|
|
Communication Interface
|
Profibus DP, Modbus RTU/ASCII (selectable via software configuration)
|
|
Power Supply
|
24V DC ±10%
|
|
Operating Temperature Range
|
- 25°C to 70°C
|
|
Dimensions
|
100 mm x 120mm x 50mm
|
|
Weight
|
Approximately 0.5 kg
|
Key Features and Benefits
Versatile I/O Configuration
The
ALSTOM IOP353 offers an extensive array of input and output channels, catering to a wide variety of industrial sensing and control requirements. The 16 digital inputs can interface with proximity sensors, pushbuttons, and limit switches, providing real - time status information on equipment operation. The 8 analog inputs, with selectable ranges, can accurately measure variables such as temperature, pressure, and flow rate from industrial transducers. On the output side, the 12 digital relay outputs are capable of driving high - power loads like motors, solenoid valves, and contactors, while the 4 analog outputs can precisely control the speed of variable - frequency drives or the position of proportional valves. This versatility makes the IOP353 suitable for use in complex industrial processes, from manufacturing assembly lines to power generation plants.
High - Speed Data Transfer
Equipped with high - speed communication interfaces, the IOP353 ensures rapid data exchange between field devices and control systems. The Profibus DP interface, known for its high - speed and deterministic data transfer capabilities, enables seamless integration with PLCs (Programmable Logic Controllers) and other automation devices in a factory - floor network. The Modbus RTU/ASCII option provides flexibility for communication with legacy systems or devices that follow the Modbus protocol. This high - speed data transfer is crucial for applications that require real - time monitoring and control, such as in a chemical plant where any delay in receiving sensor data or sending control commands could lead to process instability or safety risks.
Reliable Operation in Harsh Environments
Built to withstand the rigors of industrial environments, the IOP353 has a rugged construction. It is designed to operate within a wide temperature range of - 25°C to 70°C, making it suitable for use in both indoor and outdoor industrial settings, including cold storage facilities and hot processing plants. The module is also highly resistant to electromagnetic interference (EMI) and radio - frequency interference (RFI), ensuring stable operation even in close proximity to high - voltage equipment, motors, and other sources of electrical noise. Additionally, its isolated input and output channels protect against electrical transients and short - circuits, safeguarding both the module and the connected field devices.
Easy Installation and Configuration
The IOP353 is designed for user - friendly installation and configuration. It features a DIN - rail mounting design, allowing for quick and secure installation in standard industrial control cabinets. The module's configuration is simplified through an intuitive software tool provided by ALSTOM. Operators can easily set up input and output parameters, configure communication settings, and assign addresses to the module using this software. This ease of use reduces installation time and training requirements, making it accessible to both experienced automation engineers and maintenance technicians.
Related Models
- IOP353A – An advanced version with additional communication interfaces, such as Ethernet/IP, for seamless integration with modern industrial IoT (Internet of Things) systems. This model is suitable for applications that require high - speed, large - volume data transfer for remote monitoring and cloud - based analytics.
- IOP351 – A more cost - effective variant with a reduced number of I/O channels. It has 8 digital inputs, 4 analog inputs, 6 digital outputs, and 2 analog outputs. Ideal for small - scale industrial applications or for use in areas where the I/O requirements are less complex, such as in a small - scale packaging line or a simple environmental monitoring system.
- IOP353S – A ruggedized version with enhanced protection against dust, moisture, and vibration. It is IP65 - rated, making it suitable for use in harsh outdoor environments, such as in mining operations, construction sites, or oil and gas fields.
- IOP353C – This model is equipped with advanced diagnostic features. It can continuously monitor the status of its internal components and connected field devices, providing early warnings of potential failures. It also has the ability to log diagnostic data for later analysis, making it an ideal choice for applications where system uptime is critical, such as in power generation and transportation systems.
As a certified partner of industry leaders like Bentley Nevada, Honeywell, and ABB, we supply the ALSTOM IOP353 for a broad range of application areas. In manufacturing, it plays a vital role in automated production lines, quality control systems, and robotics integration. In power generation, it is used to monitor and control various parameters in power plants, including boiler operations, turbine control, and electrical distribution. In infrastructure, it contributes to the efficient operation of water treatment plants, wastewater treatment facilities, and transportation systems, such as railway signaling and traffic control. We offer a one - year warranty for the ALSTOM IOP353. If you cannot find the model you need, please contact us immediately.
