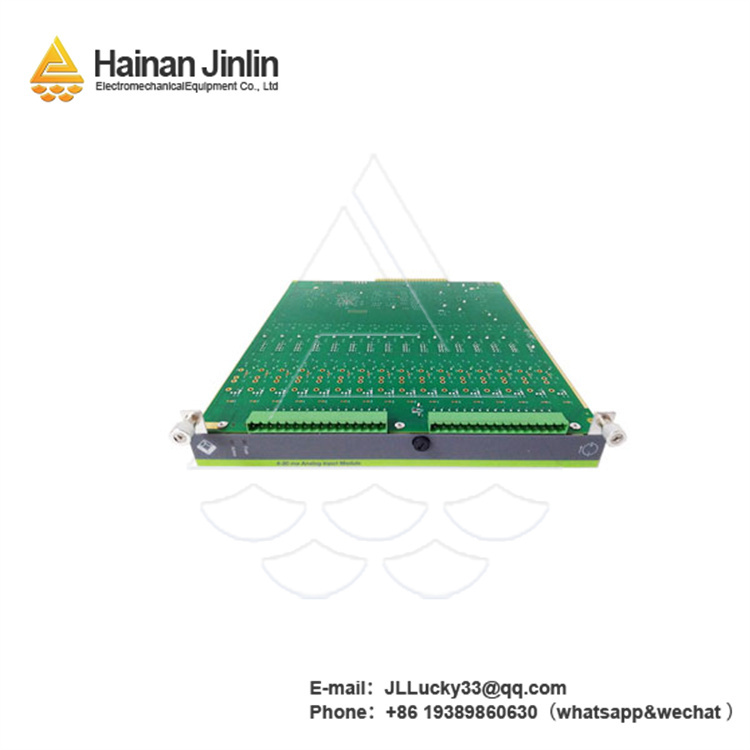

IOP310 Product Description
Product Overview
The IOP310 is an advanced intelligent I/O module designed to serve as a critical interface in industrial automation systems, bridging the gap between field devices and central control systems. Engineered for high reliability and flexibility, it integrates seamlessly with PLCs, DCS, and SCADA systems to enable efficient data acquisition and control signal distribution. This module is tailored for complex industrial environments, where precise monitoring and rapid response to process changes are essential for maintaining productivity and safety.
Hainan Jinlin Mechanical & Electrical, a trusted distributor of industrial control products, offers the IOP310 with a focus on providing expert support. Our team is dedicated to helping you integrate this module into your automation infrastructure, ensuring optimal performance and system compatibility.
Technical Specifications
|
Parameter
|
Value
|
|
Product Model
|
IOP310
|
|
Product Type
|
Intelligent I/O Module
|
|
Power Supply
|
24 VDC ± 10%
|
|
Input Channels
|
8 universal analog inputs (supports 4-20 mA, 0-10 V, thermocouples, RTDs)
|
|
Output Channels
|
4 analog outputs (4-20 mA / 0-10 V) + 8 digital outputs (24 VDC, 2 A)
|
|
Communication Protocols
|
Profibus DP, Modbus TCP/IP
|
|
Operating Temperature
|
-25 °C to +70 °C
|
|
Storage Temperature
|
-40 °C to +85 °C
|
|
Dimensions
|
140 mm × 90 mm × 65 mm (approx.)
|
|
Weight
|
0.4 kg (approx.)
|
|
Protection Rating
|
IP20 (DIN rail mount)
|
|
Certifications
|
CE, UL, ATEX
|
Key Features and Benefits
Universal Input Compatibility: The IOP310 stands out with 8 universal analog inputs that support multiple signal types, including 4-20 mA, 0-10 V, thermocouples (J, K, T, etc.), and RTDs (Pt100, Ni100). This versatility eliminates the need for specialized modules, simplifying system design and reducing inventory costs in applications requiring mixed sensor types.
Dual Communication Protocols: Equipped with both Profibus DP and Modbus TCP/IP, the module ensures seamless integration with legacy and modern control systems. This dual-protocol support enhances flexibility, allowing it to adapt to evolving automation architectures without hardware replacement.
High-Precision Signal Processing: With 16-bit resolution for analog inputs and outputs, the IOP310 delivers accurate measurement and control, critical for applications like temperature regulation in chemical reactors or pressure monitoring in water treatment plants. Its advanced filtering algorithms minimize noise, ensuring stable data transmission even in electrically noisy environments.
Ruggedized Design: Built to withstand extreme industrial conditions, the IOP310 operates reliably in a temperature range of -25 °C to +70 °C and resists vibration (up to 10 g) and shock (up to 50 g). ATEX certification makes it suitable for hazardous areas (Zone 2), expanding its applicability to oil & gas and chemical processing facilities.
Intelligent Diagnostics: The module features built-in self-diagnostics, including open-wire detection for sensors and short-circuit protection for outputs. Real-time status updates (via LED indicators and communication protocols) enable proactive maintenance, reducing downtime by alerting operators to issues like sensor failures or wiring faults before they affect process performance.
Related Models
- IOP311: A compact variant with 4 analog inputs and 2 analog outputs, ideal for space-constrained applications requiring basic I/O functionality compared to the IOP310.
- IOP320: An expanded model with 16 analog inputs and 8 analog outputs, designed for large-scale systems needing higher channel density than the IOP310.
- IOP310-DO: A digital-only version with 16 digital inputs and 16 digital outputs, serving as a cost-effective alternative to the IOP310 in applications where analog signals are unnecessary.
- B161S-E176: An industrial control module that can be paired with the IOP310 to extend digital I/O capacity, combining analog precision (IOP310) and high-density relay control (B161S-E176) in complex automation setups.
Application Areas
The IOP310 is widely used across industries:
- Chemical Processing: Monitors and controls temperature, pressure, and flow rates in reactors and pipelines, ensuring compliance with safety standards.
- Oil & Gas: Enables precise measurement of viscosity and pressure in upstream and midstream operations, with ATEX certification supporting use in hazardous zones.
- Water & Wastewater: Manages pH levels, turbidity, and flow in treatment plants, leveraging universal inputs to integrate diverse water quality sensors.
- Food & Beverage: Regulates oven temperatures and mixing speeds in production lines, with high precision ensuring product consistency and compliance with hygiene standards.
We provide a one-year warranty for the
IOP310. Our pre-sales team offers guidance on sensor compatibility, protocol configuration, and system integration. Post-purchase support includes technical troubleshooting, firmware updates, and on-site installation assistance. For custom configurations or specific application queries, please contact us promptly.
