The IS200DTAOH1ABA is an analog output module that measures temperatures in the 100 to 1600 ° C (212 to 2912 ° F) range using nine fiber optic lens options, three polymer bolt probes, and twelve glass and quartz components. The series features a variety of standard features such as adjustable emissivity, linear analog output, high and low alarm voltage output, RS232 PC interface, built-in laser sight, and more.
In addition, through the Windows-based PC interface software, users can choose the response time, peak retention and other functions.
IS200DTAOH1ABA is a Mark

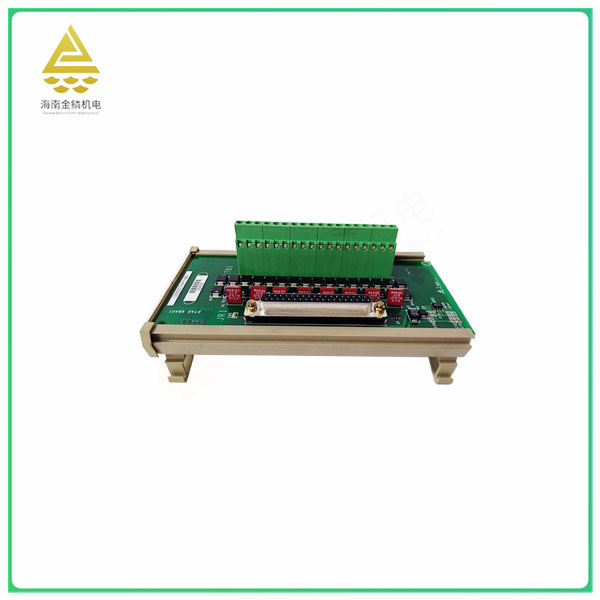

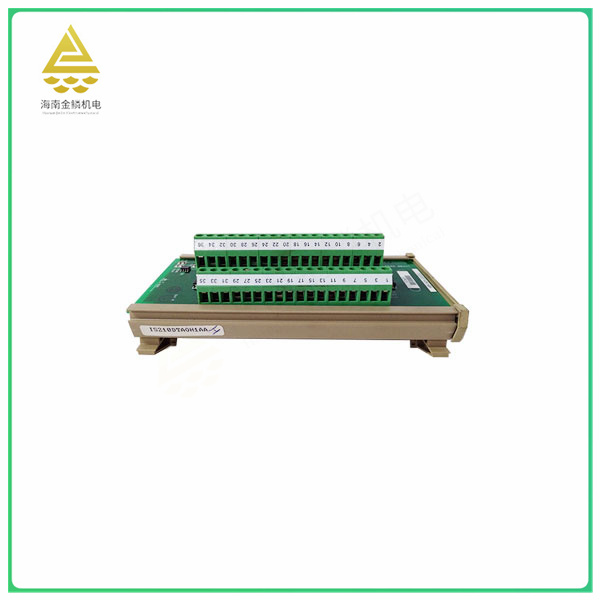

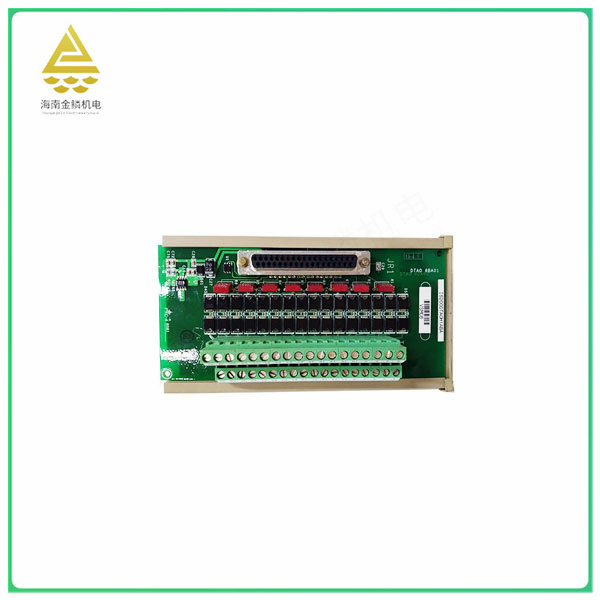

The VI system creates the AG Assembly, a compact input board with analog signals that is mounted on a plastic holder that allows the PCB to be mounted on a DIN rail. The board has ten analog inputs and two analog outputs ranging from 0-20mA, but one of them can be configured for 0-200mA current by reconfiguring the jumper.
Features of the board include:
Comes with a 37-pin connector with latch and a terminal board with 48 screw connections.
Equipped with 21 jumper switches, labeled JP1A/B-JP10A/B (20) plus JP0.
Features a variety of capacitors, resistors and integrated circuits, as well as four sub-panels.
Jumpers on the board are used to configure current and voltage.
In addition, GE provides technical support for the IS200DTAOH1ABA, and users can find information about the PCB, its components or installer through manuals, user guides and data manuals.
Overall, the IS200DTAOH1ABA is a feature-rich and flexible analog input/output terminal board.
