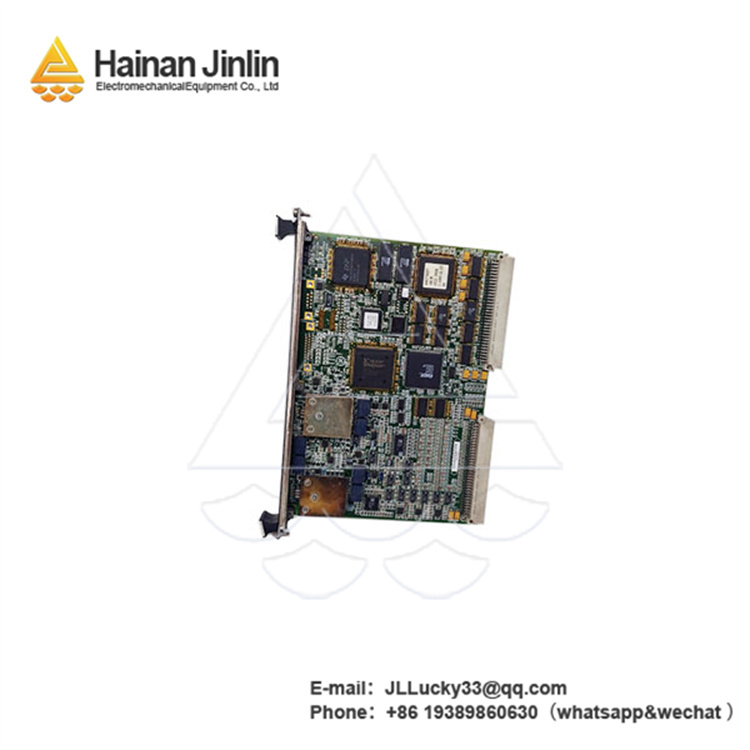

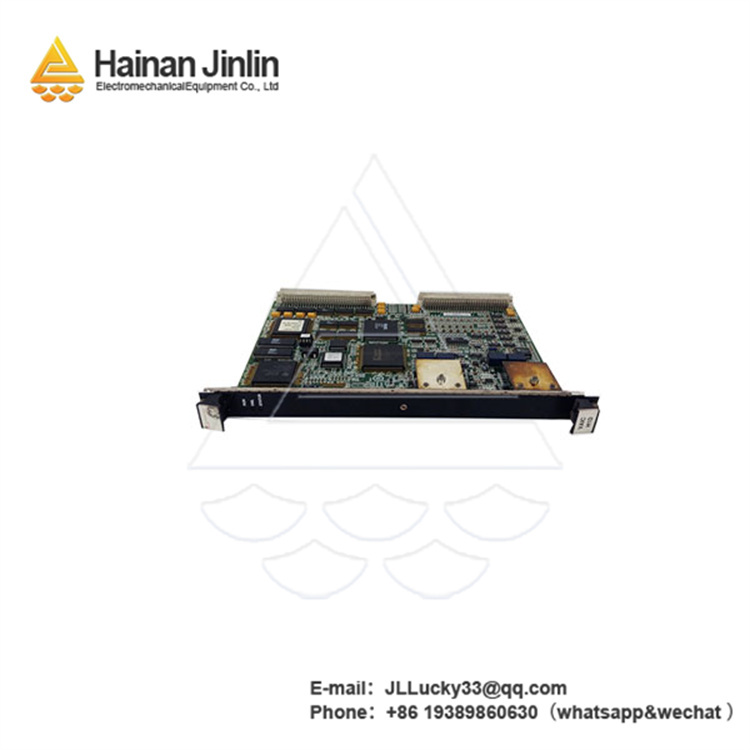

IS200TCATH1A | Temperature Input Module (Thermocouple/RTD)

Product Overview

The IS200TCATH1A is a high-performance temperature input module engineered for seamless integration into GE’s Mark VIe Distributed Control System (DCS)—a core platform for controlling critical industrial processes in power generation (e.g., gas/steam turbines, coal-fired plants), oil & gas refining, and large-scale manufacturing. As a specialized temperature acquisition component, the IS200TCATH1A is designed to accurately measure and transmit temperature data from a wide range of industrial sensors (e.g., thermocouples, RTDs), enabling real-time process monitoring, control, and safety interlocks. Key attributes of the IS200TCATH1A include multi-channel input capability, high measurement precision, and compliance with industrial reliability standards (e.g., IEC 61000 for electromagnetic compatibility), making it indispensable for applications where temperature accuracy directly impacts equipment efficiency and safety. With its rugged design and seamless compatibility with GE’s DCS ecosystem, the IS200TCATH1A ensures consistent data integrity, minimizes measurement drift, and supports continuous operation in harsh environments—from high-vibration turbine enclosures to temperature-fluctuating chemical processing plants. As a trusted component in GE’s industrial control portfolio, the IS200TCATH1A upholds the brand’s legacy of engineering excellence, ensuring long-term operational stability for critical temperature-dependent processes.

Hainan Jinlin Mechanical & Electrical is a distributor of industrial control products, specializing in a wide range of brands. We possess extensive industry knowledge and market insights. Adhering to the "Customer First, Forge Ahead" business philosophy, we provide high-quality customer service. We're here for you, dedicated to meeting your needs!

Technical Specifications

Key Features and Benefits

Multi-Channel Temperature Acquisition for Comprehensive Monitoring

The IS200TCATH1A offers 8 independent differential input channels, enabling simultaneous measurement of temperature from up to 8 sensors (thermocouples or RTDs)—critical for applications requiring multi-point temperature monitoring, such as gas turbine combustion chambers, boiler tubes, or chemical reactor vessels. Each channel supports automatic sensor type detection and range calibration, eliminating the need for manual configuration and reducing setup time. For example, in a coal-fired power plant, the IS200TCATH1A can monitor temperatures at multiple boiler tube locations, providing operators with real-time data to prevent overheating and tube failure. This multi-channel capability also reduces the number of modules required for large-scale systems, simplifying rack layout and lowering hardware costs.

High Measurement Precision for Process Control

With ±0.1°C accuracy for Pt100 RTDs (within -100°C to +200°C) and ±0.25% of reading for thermocouples, the IS200TCATH1A delivers the precision required for tight temperature control in critical processes. Its advanced signal conditioning—including cold-junction compensation (for thermocouples) and lead-wire resistance compensation (for RTDs)—minimizes measurement drift caused by environmental factors (e.g., ambient temperature changes, cable resistance). For instance, in a pharmaceutical manufacturing process requiring precise temperature control (±0.5°C) for chemical reactions, the IS200TCATH1A ensures consistent readings, reducing product waste and ensuring compliance with regulatory standards (e.g., FDA guidelines). This precision also supports predictive maintenance, as small temperature deviations can be detected early to address potential equipment issues (e.g., bearing wear in turbines).

Seamless Integration with GE Mark VIe DCS

Engineered exclusively for GE’s Mark VIe DCS, the IS200TCATH1A integrates seamlessly with the system’s backplane and software (e.g., GE CIMPLICITY HMI/SCADA). It leverages GE’s Speedtronic® communication protocol for high-speed data transfer (100 ms per channel) to the DCS controller, ensuring real-time visibility and control. The module is automatically recognized by the Mark VIe system, eliminating the need for custom drivers or third-party adapters. Operators can configure sensor types, alarm thresholds, and data logging parameters via the DCS interface, streamlining setup and reducing the risk of configuration errors. For power plants using the Mark VIe system to control turbines, the IS200TCATH1A provides critical temperature data for turbine speed control and load balancing, ensuring optimal performance and efficiency.

Robust Design for Industrial Reliability

Built to withstand the demands of industrial environments, the IS200TCATH1A features 500 V AC galvanic isolation between channels and the Mark VIe backplane, protecting against electrical noise and voltage transients from nearby equipment (e.g., motors, variable frequency drives). It complies with IEC 61000-6-2 (industrial electromagnetic interference immunity) and operates reliably in temperatures ranging from 0°C to +60°C—suitable for control rooms and equipment enclosures in power plants and refineries. The module’s components are selected for long-term durability, with a mean time between failures (MTBF) exceeding 200,000 hours, ensuring minimal unplanned downtime for critical temperature monitoring systems.

Advanced Diagnostics for Maintenance Efficiency

The IS200TCATH1A includes built-in diagnostic features to simplify maintenance and troubleshooting. It detects common sensor faults, such as open circuits (for RTDs/thermocouples), short circuits, and sensor drift, and communicates these faults to the Mark VIe DCS via clear fault codes (e.g., “RTD open circuit,” “thermocouple short to ground”). This allows maintenance teams to quickly identify and resolve issues without manually testing each sensor. The module also supports self-test functionality, enabling periodic validation of its measurement accuracy without removing it from the rack. For example, if a thermocouple connected to the IS200TCATH1A fails, the module immediately alerts the DCS, allowing technicians to replace the sensor before a critical temperature spike goes undetected. This proactive diagnostics capability reduces maintenance time and improves overall system availability.
