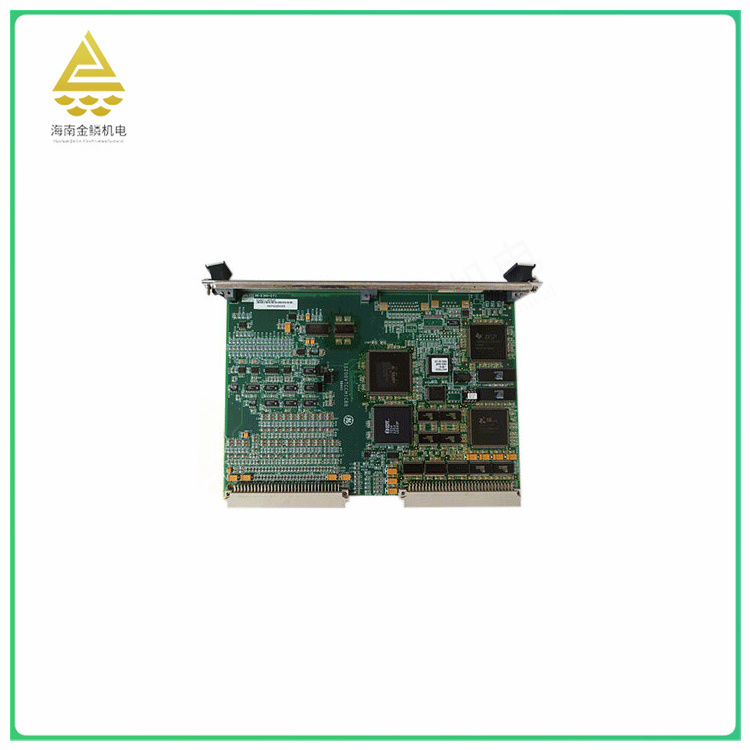

The IS200VTCCH1CBB is a General Electric (GE) control module commonly used in industrial automation. This module has multiple functions and is suitable for various application scenarios.
First, the IS200VTCCH1CBB is a thermocouple input terminal board that can accept up to 24 thermocouple inputs. A thermocouple is a common temperature sensor used to measure temperature and convert it into an electrical signal. Therefore, the module has a wide range of applications in systems requiring temperature monitoring and control.
Secondly, the module has a variety of input and output types, including digital input and output, analog input and output. This allows it to communicate and interact with a wide variety of different types of devices and sensors. In addition, it also has a variety of communication interfaces, such as Ethernet, RS232, RS485, etc., to facilitate data exchange and communication with other devices.
In addition, the IS200VTCCH1CBB features a high-performance processor and modern electronics to provide efficient and stable control functions. It also has a variety of protection functions, such as overvoltage protection, overcurrent protection, etc., to ensure the safety and stability of the system.
In summary, the IS200VTCCH1CBB is a powerful, easy-to-use and highly reliable control module for a variety of industrial automation and temperature control applications.
The IS200VTCCH1CBB is a thermocouple input panel manufactured by General Electric (GE) for its Mark VI system, specifically for the management characteristics of gas and steam turbines. The following are its functions and features:
Thermocouple inputs: The board is designed to accept up to 24 thermocouple inputs. A thermocouple is a temperature sensor that is often used to measure temperature and convert it into an electrical signal. This makes the IS200VTCCH1CBB useful in systems requiring accurate temperature monitoring and control.
Variety of input types: The board supports thermocouples of type E, J, K, S, and T, as well as mV inputs with a span of -8mV to +45mV. This diversity allows it to adapt to many different sensor and application needs.
Powerful communication capabilities: Although the specific communication interface details may vary depending on the actual application, the IS200VTCCH1CBB is usually equipped with a variety of communication interface options, such as Ethernet, serial communication interfaces (such as RS-232, RS-485), in order to exchange data and communicate with other devices and systems.
Highly integrated: The board consists of hundreds of resistors, capacitors, inductors/beads, test points, diodes, and integrated circuits, including Xilinx Spartan XCS30 field programmable gate arrays, dual-port SRAM, CMOS static RAM, and digital signal processors, all integrated on a compact board.
Reliability and durability: GE's PLCS are typically highly reliable and durable, and the IS200VTCCH1CBB is no exception. It is designed for use in industrial environments to withstand harsh conditions and temperature fluctuations, ensuring system stability and long-term operation.
Programming and configuration flexibility: Users can program and configure the IS200VTCCH1CBB with specific programming tools to define control logic, input/output mapping, communication parameters, and data processing tasks. This gives users the flexibility to customize and adjust to their actual needs.
In summary, the IS200VTCCH1CBB is a powerful, highly integrated, reliable and durable thermocouple input board for a variety of industrial automation applications requiring accurate temperature monitoring and control. Its multiple functions and features allow it to flexibly adapt to different system requirements and provide efficient and stable control functions.
