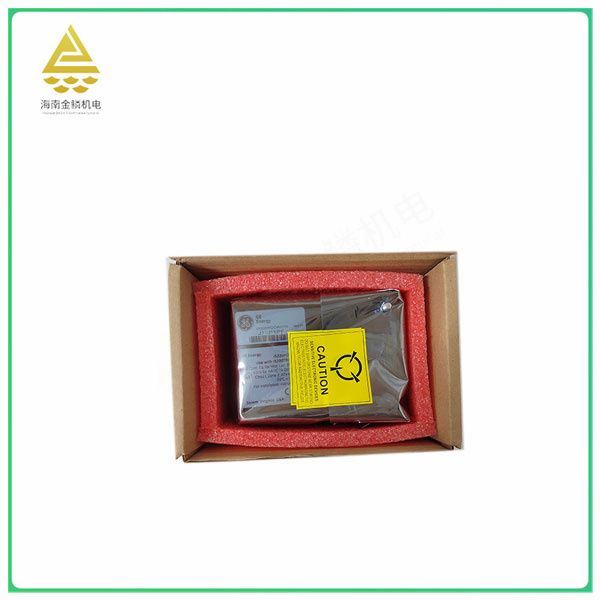

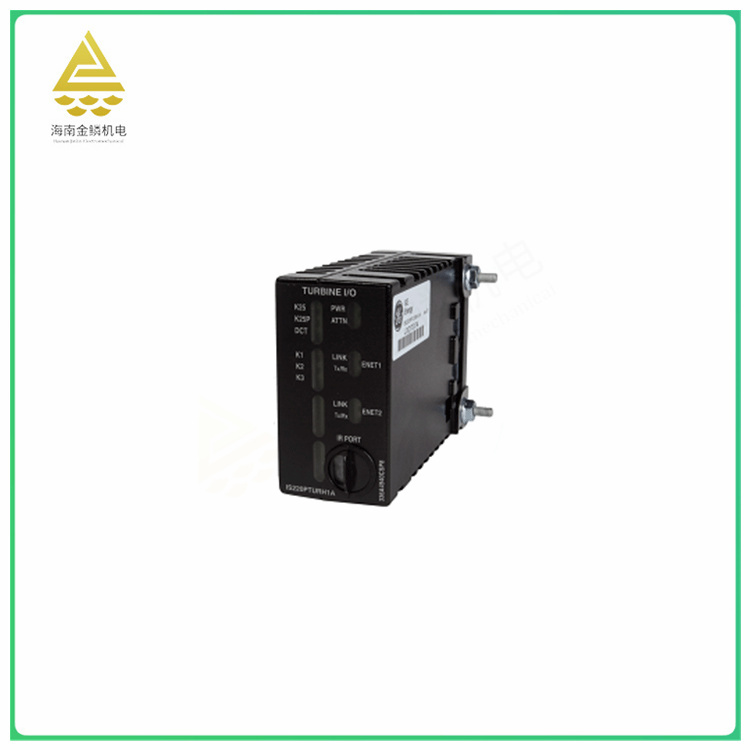

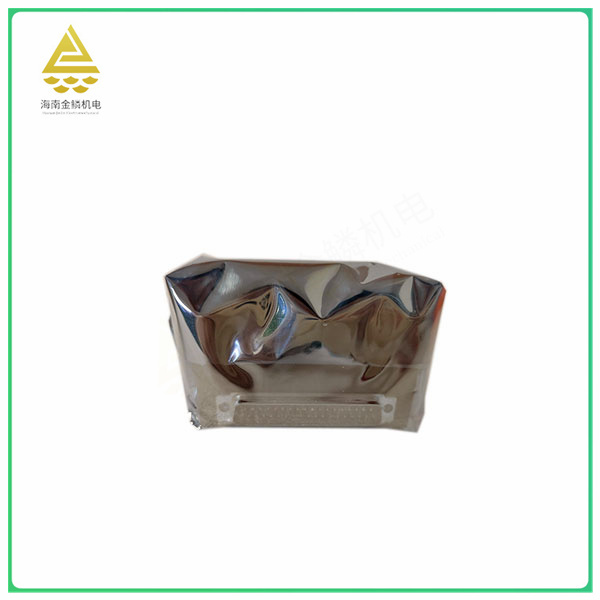

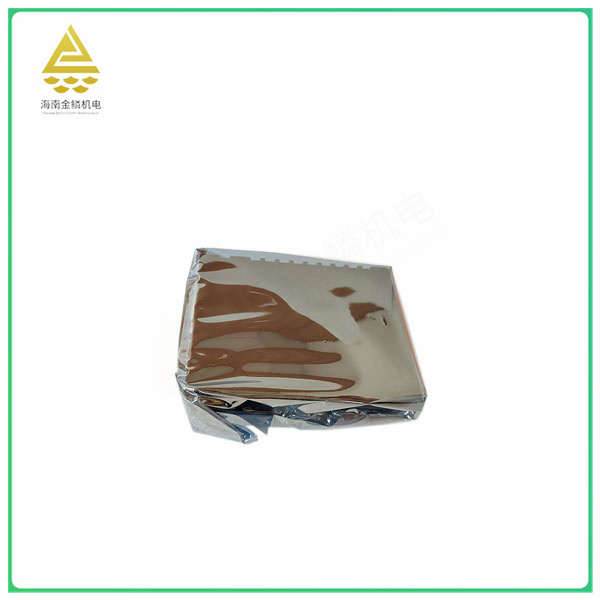

The IS220PDOAH1A is a discrete output package in the General Electric Speedtronic Mark VIe gas turbine control system. This module plays a key role in the control system and is mainly used to convert electrical signals into control signals for the actual equipment or actuators.
Main features and functions:
Electrical interface: It provides one or two I/O Ethernet networks connected to a discrete output terminal board, which enables the control system to communicate and exchange data with other devices or subsystems.
Output function: This module can control up to 12 relays and provide feedback on the status of relays. These relays can be used to control various devices such as valves, motors, indicator lights, etc.
Power and communication: The module is powered by a three-pin power input and communicates via two RJ45 Ethernet connectors. Output is performed via a DC-37 pin connector connected directly to the associated terminal board connector.
Monitoring and diagnosis: The LED indicator provides visual diagnosis, so that users can quickly identify the working status of the module. In addition, the infrared port allows for local diagnostic serial communication, which helps with maintenance and troubleshooting.
Application field:
The IS220PDOAH1A is primarily used in control systems that require accurate and fast response, especially in gas turbines, power stations and other industrial environments that require a high degree of automation and reliability. Its powerful output capability and flexible communication interface make it a key component in complex control systems.
Compatibility and extensibility:
The module is highly compatible with other components of the Speedtronic Mark VIe control system and can be easily integrated into existing control systems. In addition, due to its open communication interface and extensible features, it can also be integrated with other brands of devices and systems.
In summary, the IS220PDOAH1A is a powerful and reliable discrete output module suitable for a variety of industrial automation scenarios requiring precise control and fast response.
