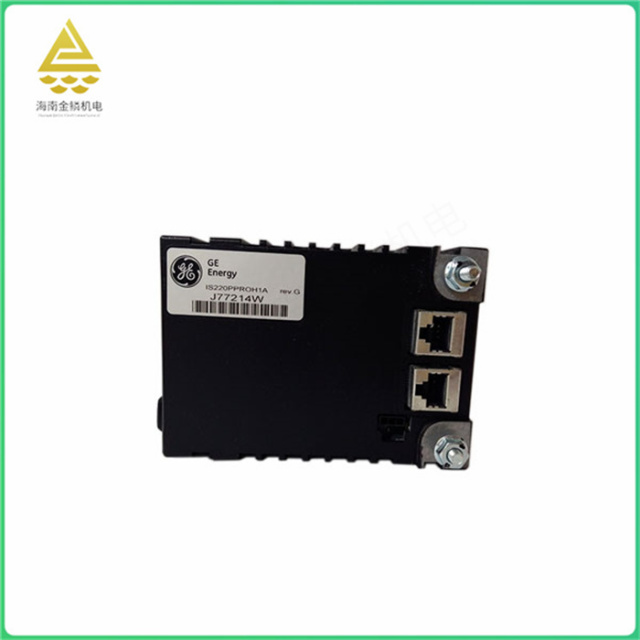

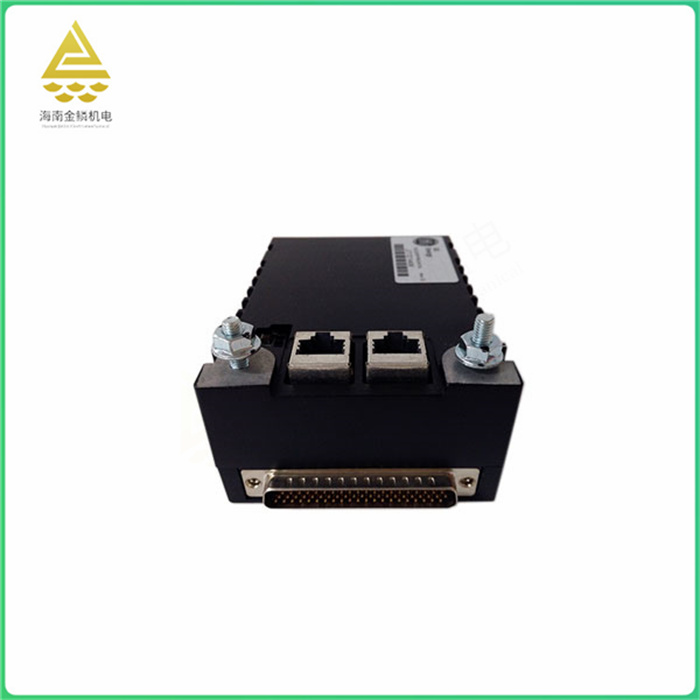

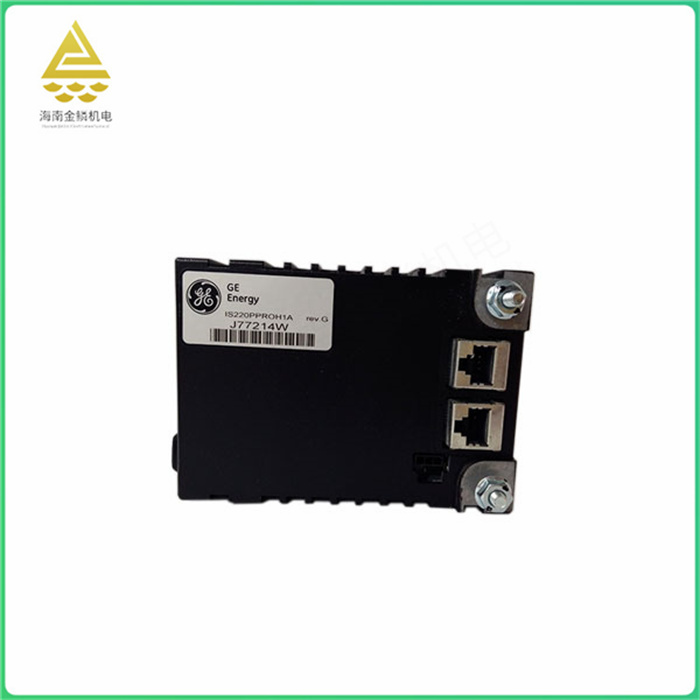

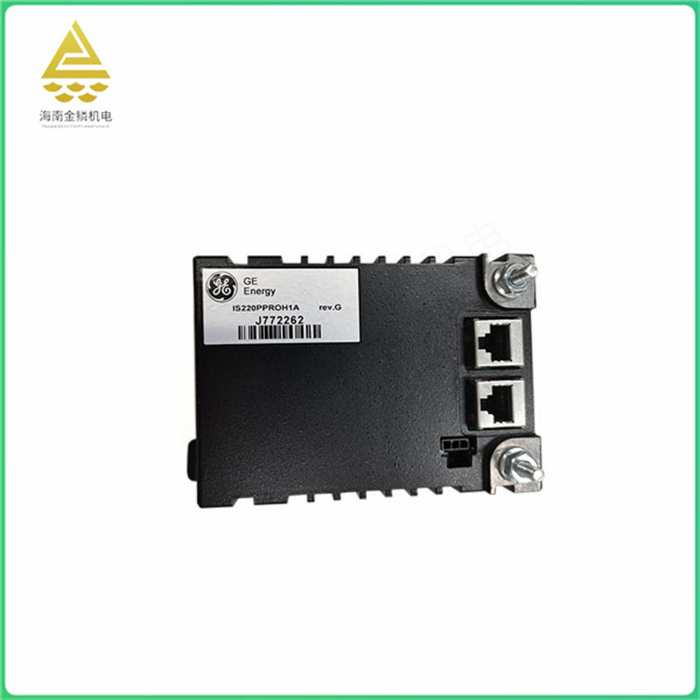

The IS220PPROH1A is a turbine specific I/O module. Designed to provide a direct interface to specific turbine site equipment. This setup eliminates or reduces the large number of instruments previously required to connect field equipment, and also improves operational reliability and reduces long-term maintenance. The IS220PPROH1A is usually used in conjunction with the TREAH_ A terminal plate for emergency trip applications of aero-modified steam turbines. The component can be connected to a barrier or box terminal plate. The IS220PPROH1A has field wiring limitations with voltage detection, limiting cable length to 1000 feet of 18 AWG wiring. Note that the IS220PPROH1A cannot be automatically reconfigured when exchanging the BPPB P-Pack with the BPPC P-Pack.

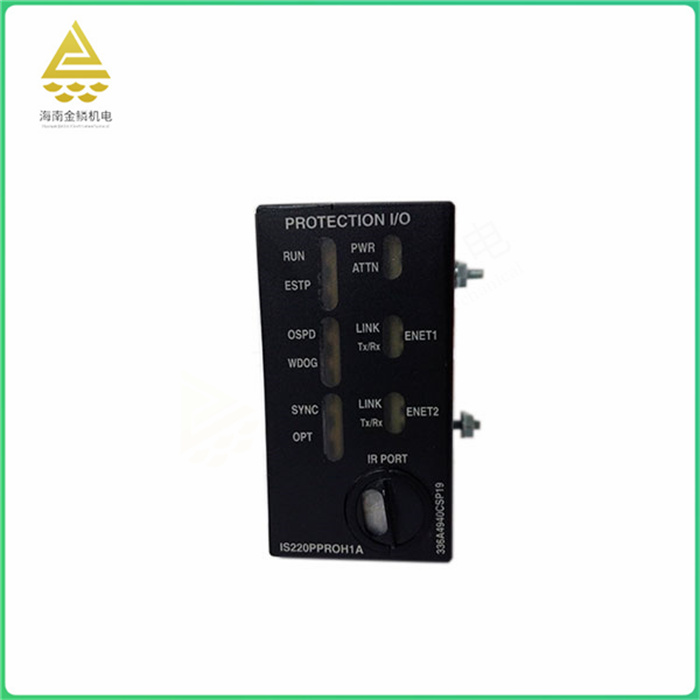

The front panel of the IS220PPROH1A is marked with the component id number and several LED indicators. These are placed in pairs on the front panel. The first - pair is labeled PWR/ATTN, the second pair is labeled LINK/TxRx and ENET1, and the third pair is labeled LINK/TxRx and ENET2. Finally, one component is located at the bottom of the panel; This is labeled as an IR port.
The IS220PPROH1-A accepts three speed signals. This includes deceleration, acceleration and speeding. The component also has hardware implementation overdrive. The component monitors the status and operation of the selected jump gate through a group of integrated feedback signals. The package supports TMR and simplex backup protection.
The IS220PPROH1A has a high-speed processor and two fully independent 10/100 Ethernet ports. The package has a hardware reset circuit and a watchdog timer. The temperature is monitored by internal sensors.
The IS220PPROH1A is a gas turbine control system module based on GE's Mark VIe control system. The module has a variety of functions, including discrete input/output signal interface and feedback signal processing, as well as gas turbine monitoring and control. It is suitable for various industrial automation control systems, such as energy management, process control, robot control, etc.
Specifically, the IS220PPROH1A module has the following features:
Ethernet-based distributed control solutions improve system availability and simplify operation and maintenance throughout the life cycle.
Support Mark VIe system, no backplane design, flexible high-speed, low-cost communication.
Master control and security control can coexist on the same network, maintaining functional independence.
The master control can listen to the safety input without interference, reducing the cost of field meter duplication.
Supports programming, configuration, trend analysis, and analysis diagnostics using the ControlST* software suite.
With high-quality, time-consistent data, control system equipment can be managed more effectively.
With a variety of input and output interfaces, it can be used with different equipment to meet the needs of different systems.
With a wide operating temperature range and a wide power supply voltage range, it can operate normally in different environments and conditions.
It has a flexible connection mode and can be connected with the control system through different interfaces to achieve different control and monitoring functions.
In short, IS220PPROH1A is a powerful and reliable gas turbine control system module, suitable for various industrial automation control systems.
The function of the IS220PPROH1A is mainly to process the input and output of digital and analog signals in order to monitor and control industrial processes. It can be used to connect sensors, actuators and other devices to automate production. In addition, the IS220PPROH1A eliminates or reduces much of the instrumentation previously required to connect to field equipment, thereby increasing operational reliability and reducing long-term maintenance.
Specifically, the IS220PPROH1A has a field wiring limit for voltage detection that limits cable length to 1,000 feet of 18 awg wiring. Note that IS220PPROH1A cannot be automatically reconfigured when bppb p-pack is replaced by bppc p-pack. The component front panel is marked with the component id number and multiple led indicators, which are placed in pairs on the front panel. The first pair is labeled pwr/attn, the second pair link/txrx and enet 1, and the third pair link/txrx and enet 2.
In short, the IS220PPROH1A is a dedicated I/O module that handles the input and output of digital and analog signals, can connect sensors, actuators and other devices, and has functions such as voltage detection.
The IS220PPROH1A is used in the following scenarios:
Industrial automation production line control: IS220PPROH1A can be used to control various equipment such as motors, pumps, valves, etc., to achieve automated production.
Energy management: IS220PPROH1A can collect various energy parameters such as electricity, water pressure, gas, etc., and manage and optimize energy use through the control system to reduce energy consumption.
Process control: In chemical, pharmaceutical and other fields, IS220PPROH1A can collect various chemical reaction parameters such as temperature, pressure, liquid level, etc., and control various equipment such as heaters, agitators, valves, etc., to achieve automatic control of chemical reaction process.
Robot control: In the robot control system, IS220PPROH1A can control various actions such as walking, grasping, rotating and so on.
Medical equipment control: In the medical equipment, IS220PPROH1A can collect the patient's physiological signals such as blood pressure, ECG, blood oxygen, etc., and precisely control and monitor the medical equipment through the control system.
In short, IS220PPROH1A has a wide range of application scenarios, including but not limited to industrial automation production line control, energy management, process control, robot control, and medical equipment control.
