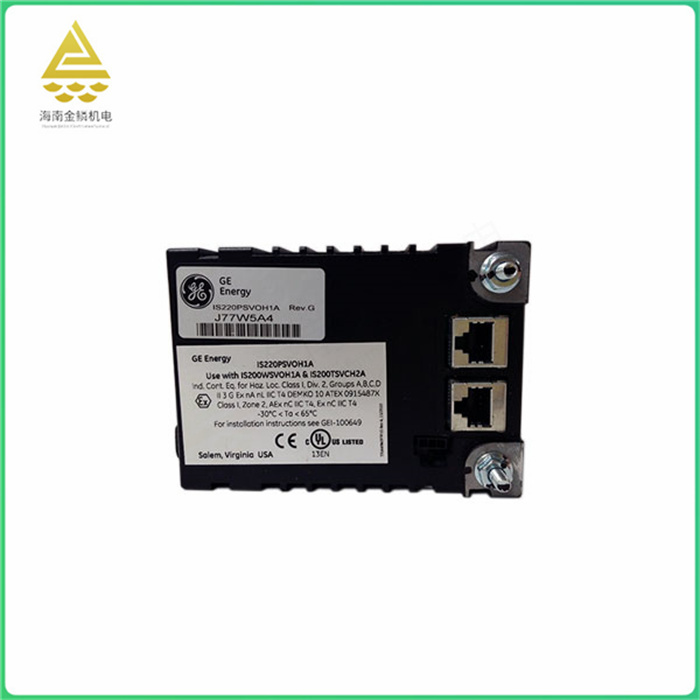

The IS220PSVOH1A is an I/O (input/output) discrete input module commonly used in industrial automation and control systems. It has the function of a servo control component and is manufactured by General Electric for its Mark VI or Mark VIe systems. This part provides an electrical interface between one or two I/O Ethernet and TSVO servo terminal boards.
IS220PSVOH1A is a servo control package under the Mark VIe series. Ge developed this component for its Mark VI or Mark VIe system. The steam and gas turbine systems are controlled by these two systems.
The IS220PSVOH1A is an electrical interface that connects the TSVO servo terminal board to one or two I/O Ethernet. The IS220PSVOH1A uses the WSVO servo driver module to control the two servo valve position loops.

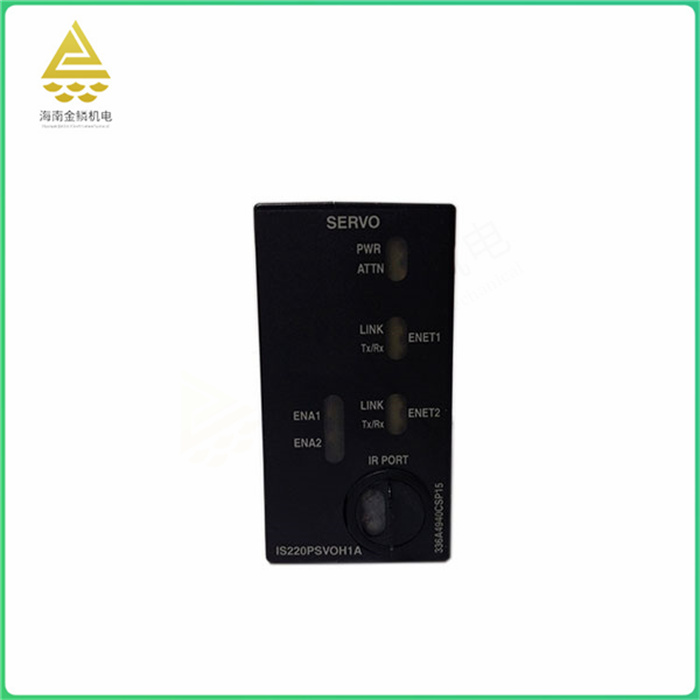

The PSVO includes a front panel with various LED indicators. Four leds display the status of two Ethernet networks (ENet1/Enet2), as well as one power and Attn LED and two ENA1/2 leds. There is also an infrared port on the front, but it is not used in this package.
After installation, the Control System Toolbox application is used to set up the IS220PSVOH1A. The kit includes a CPU board with input power connector, a local power supply, and an internal temperature sensor. The board also has flash memory and RAM. This board links to the Purchasing Board.
The IS220PSVOH1A can be automatically reconfigured after replacement. This feature can be activated or disabled in the component editor of the ToolboxST application. The operator can also manually reconfigure the module using the component editor.
When replacing a terminal board, you must manually reconfigure the I/O component. Actuator stroke, position ramp, or step current in manual mode can be used to test servo performance. Any irregularities in the actuator travel will be displayed on the trend recorder.
Manufacturer's user guides and manuals may provide more information about this and other parts of the board, its installation and operation, and any potential compatibility issues.
At present, in the continuous process production automatic control (PA) or commonly known as industrial process control, there are three major control systems, namely PLC programmable logic controller,
DCS distributed control system and FCS field bus control system.
The functions of IS220PSVOH1A mainly include:
The function of the servo control assembly: This part is manufactured by General Electric for its Mark VI or Mark VIe systems to control steam and gas turbine systems.
Processing discrete input signals: As an I/O (input/output) discrete input module, the IS220PSVOH1A receives and processes discrete input signals for use in industrial automation and control systems.
Electrical interface function: Provides an electrical interface between one or two I/O Ethernet and TSVO servo terminal boards for connecting various devices.
Front panel indicator: has multiple LED indicators, including leds indicating two Ethernet (Enet1/Enet2) states, as well as a Power and Attn LED, in addition to two leds labeled ENA1/2.
Control System Toolbox application: After installation, the IS220PSVOH1A is equipped with the Control System Toolbox application, which includes a processor board with input power connector, local power supply, and an internal sensor for temperature monitoring.
In summary, IS220PSVOH1A is an I/O discrete input module with multiple functions, mainly used in industrial automation and control systems, and has the function of servo control components.
The advantages of IS220PSVOH1A mainly include:
High reliability: The IS220PSVOH1A is manufactured by General Electric, and its design, manufacturing and testing processes are subject to strict quality control to ensure its high reliability and stability.
High efficiency: The discrete input module of IS220PSVOH1A can quickly collect and process input signals, improving the efficiency and response speed of the entire control system.
Flexibility: The module has a variety of functional options, can be configured according to actual needs, with high flexibility.
Scalability: The IS220PSVOH1A is designed so that it is easy to scale, and the functionality and capacity of the system can be expanded by adding or subtracting modules.
Easy to use and maintain: The front panel indication and control System toolbox application makes operation and maintenance easier.
In summary, IS220PSVOH1A has the advantages of high reliability, efficiency, flexibility, scalability and easy use and maintenance, and is an excellent I/O discrete input module.
