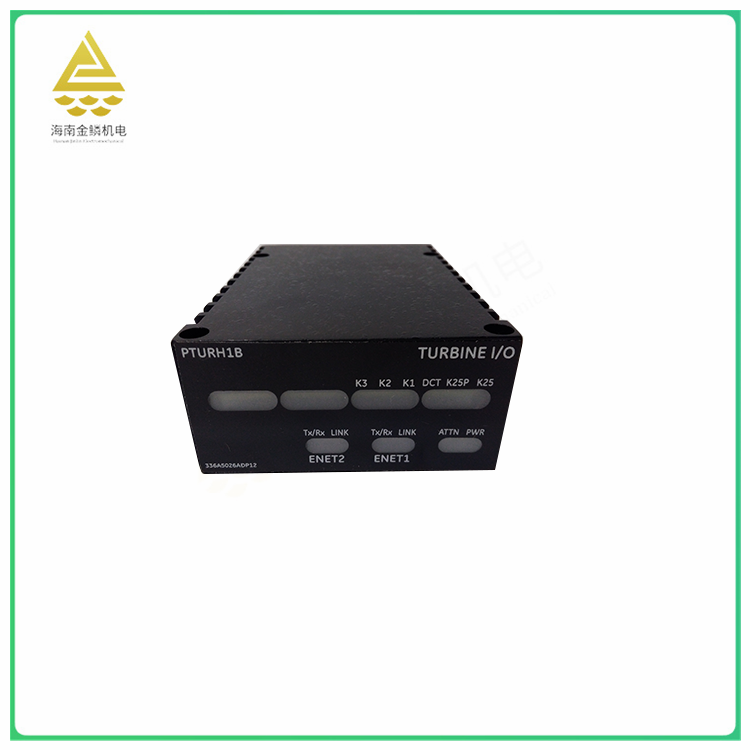

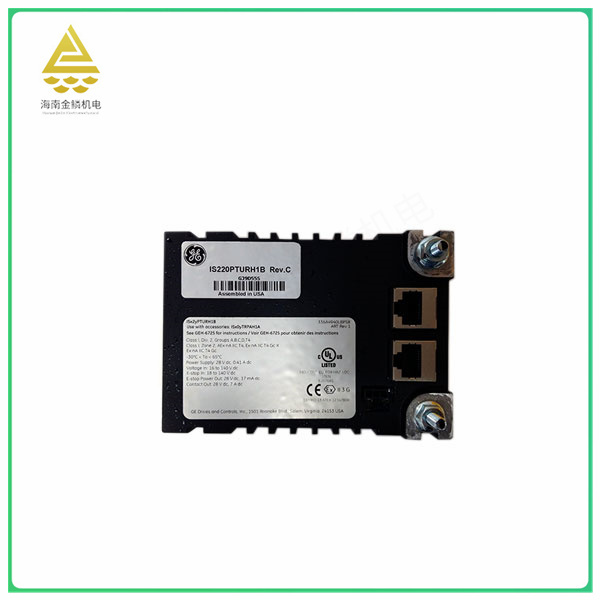

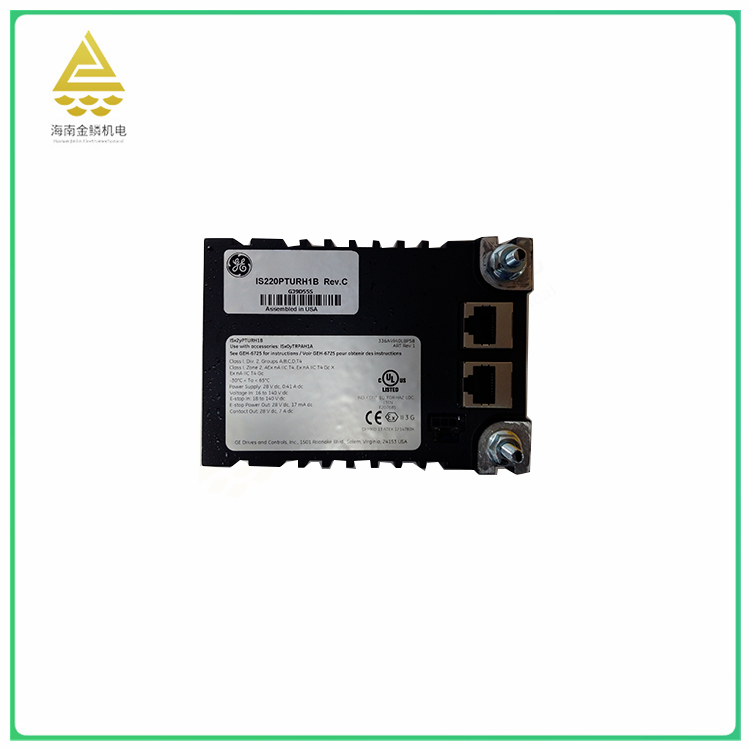

The IS220PTURH1B is a component developed by GE for its Mark VI system and is a single-trip component for primary steam turbines. This component provides an electrical interface between the turbine control terminal board and one or two Ethernet cables. Output is achieved through a DC 62-pin connector connected to the associated terminal board. The IS220PTURH1B comes in a black housing with an air outlet. The front of this case has multiple LED indicators, as well as an IR(infrared) port.
Internally, the IS220PTURH1B has a processor board, a second board dedicated to turbine control, and an analog acquisition auxiliary board. The battery string is installed on the TTURH1C terminal board. The processor board has two 10/100 Ethernet ports, flash memory and RAM, a read-only chip for identification, an internal temperature sensor, and a reset circuit. In addition, the IS220PTURH1B allows automatic reconfiguration, automatic download from the controller to I/O packets, and has an interface with four passive magnetic speed inputs.
Overall, the IS220PTURH1B is a feature-rich, high-performance component for turbine control that improves system reliability and stability.
IS220PTURH1B, as a single trip component for primary steam turbine, takes a variety of safety measures to ensure the safety and stability of the system.
First, the component has a trip function, which can quickly trigger the trip mechanism when the steam turbine is abnormal or faulty, stopping the operation of the steam turbine to prevent the expansion of the accident or equipment damage. This quick response reduces the risk of damage to equipment and protects personnel.
Second, the IS220PTURH1B also uses a redundant design, equipped with multiple processors and communication ports. This design can ensure the reliability and fault tolerance of the system, even if one component fails, other components can continue to work, and maintain the stable operation of the system.
In addition, the component has self-monitoring and diagnostic capabilities. Through real-time monitoring of its own operating status and parameters, once anomalies or faults are found, alarms can be issued in time and appropriate measures can be taken. This self-monitoring mechanism helps to identify potential problems in advance and prevent potential failures from impacting the system.
In summary, the IS220PTURH1B ensures the safety and stability of the system through safety measures such as tripping function, redundant design and self-monitoring and diagnosis function.
