Brand: GE
Model: IS22OPVIBH1A
Name: Digital input module
Warranty: One year
The IS220PVIBH1A is a vibration monitor developed by GE under the Mark VIe control System.
The GE IS220PVIBH1A is a digital input module commonly used in industrial control and automation systems to input digital signals into PLCS (Programmable logic controllers) or other control systems. The following are some possible product features and functions, but please note that specific features may vary by model and use: Number of channels :GE IS220PVIBH1A modules typically have multiple digital input channels, allowing for simultaneous monitoring of several different digital signals.
Input type: It can accept digital input signals of different levels, such as high level (24V), low level (0-5V), digital pulse, etc., depending on the application requirements. Isolation: The GE IS220PVIBH1A digital input module has an isolation function to prevent interference or electrical noise from spreading to the control system, improving the reliability and stability of the system.
Sampling rate: The sampling rate refers to the rate at which the module samples the digital input signal, usually measured in samples per second (Hz). Higher sampling rates can be used for faster or more dynamic applications. Alarm function: The GE IS220PVIBH1A module has an alarm function that can trigger an alarm or notify the operator when a digital input signal for a specific condition is detected. Communication interface: The GE IS220PVIBH1A module is usually connected to a computer or control system through a communication interface to transmit digitized input data.
Operating temperature range :GE IS220PVIBH1A modules are typically designed to operate over a wide temperature range to adapt to different environmental conditions. Durability and industrial-grade standards: Typically, such digital input modules are designed to be highly durable to meet the requirements of industrial environments. Data logging and storage: The GE IS22OPVIBH1A module can record data to internal memory or external storage devices for subsequent analysis and review. Compatibility: It may be compatible with different control systems and communication protocols to facilitate integration into various applications.
The IS220PVIBH1A is a component developed by GE for its Mark VI system. The Mark VI is one of the final Speedtronic systems released by GE for gas/steam turbine management.

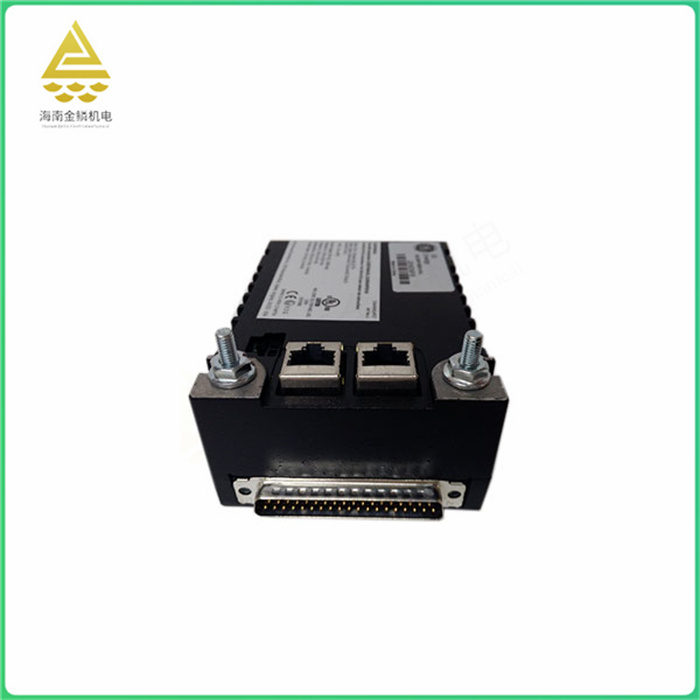

IS220PVIBH1A is a single-trip assembly for a steam turbine. This component provides an electrical interface between the turbine control terminal board and one or two Ethernet cables. The output of this component is achieved through a DC 62-pin connector connected to the associated terminal board.

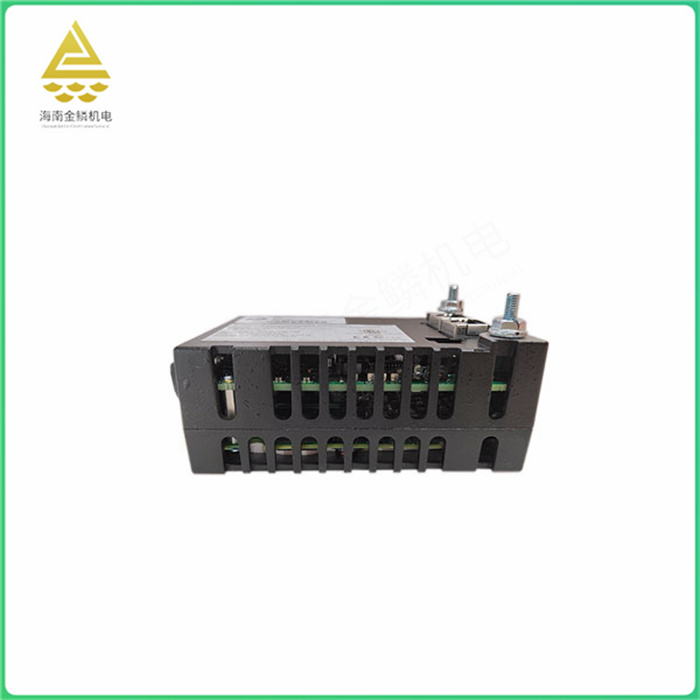

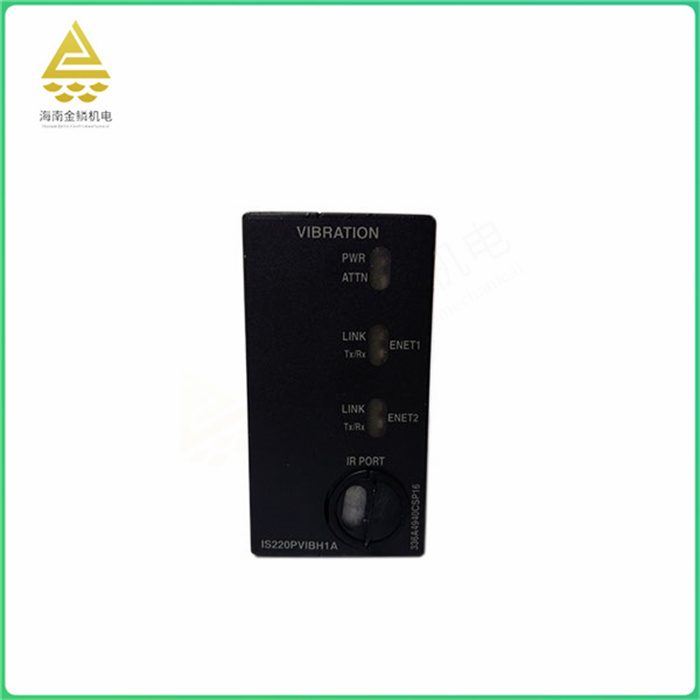

The IS220PVIBH1A comes in a colored housing with an air flow opening. The front of this case has multiple LED indicators, as well as an IR(infrared port). This port is not used in this package. Inside the enclosure, there is a processor board, a second board dedicated to turbine control, and an analog acquisition auxiliary board. The battery string is installed on the TTURH1C terminal board. The processor board has two 10/100 Ethernet ports, flash memory and RAM, a read-only chip for identification, an internal temperature sensor, and a reset circuit.
The functions of IS220PVIBH1A include:
Electrically connect one or two I/O Ethernet cables to the TVBA vibration terminal board.
To read vibration or proximity information, the package supports the following sensor types: precursors, integrated output accelerometers (channels 1-3 only), Velomitor, or seismic channels (9-12 precursors only), while channel 13 can input key confidence type or proximity type signals.
Frame rates supported over Ethernet include 3.125, 6.25, 12.5, 25, 50, and 100 Hz.
Features dual RJ45 Ethernet ports and 3-pin power inputs for powering the battery pack.
LED indicator is used to display visual diagnosis.
In general, IS220PVIBH1A mainly plays a monitoring and control role in industrial automation and control systems.
