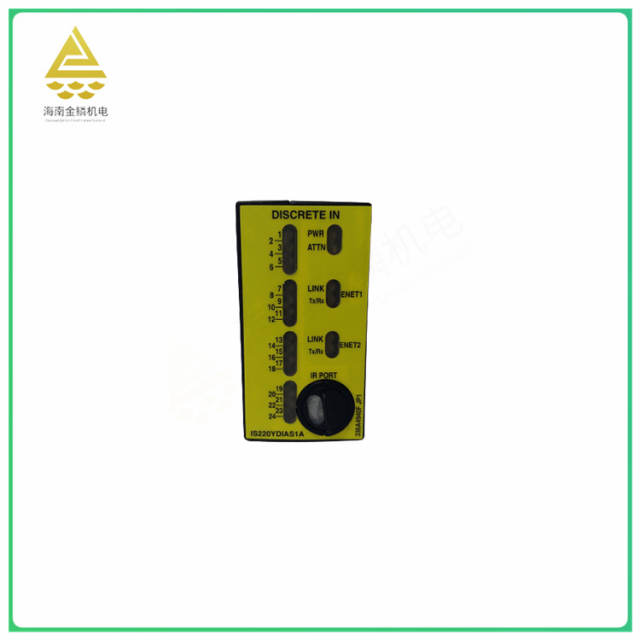

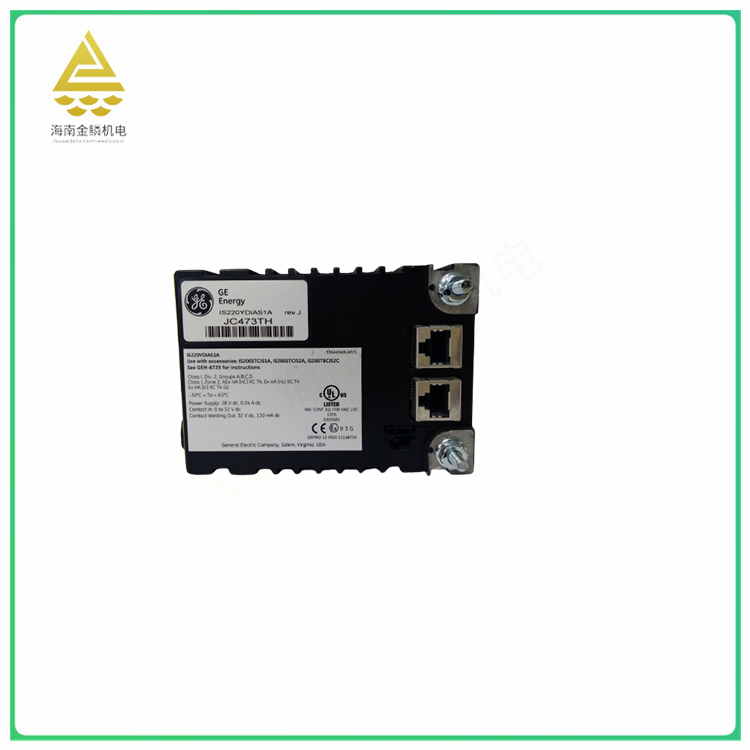

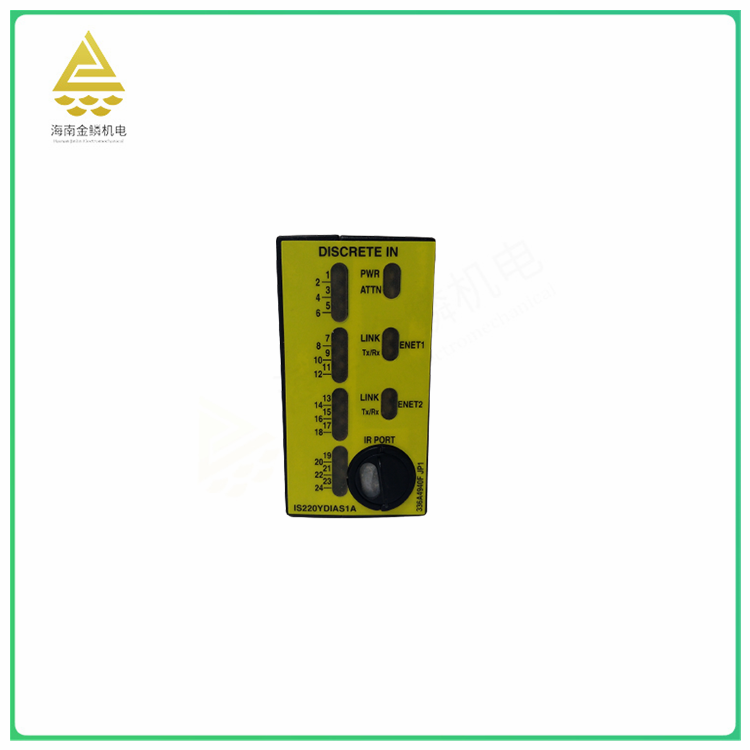

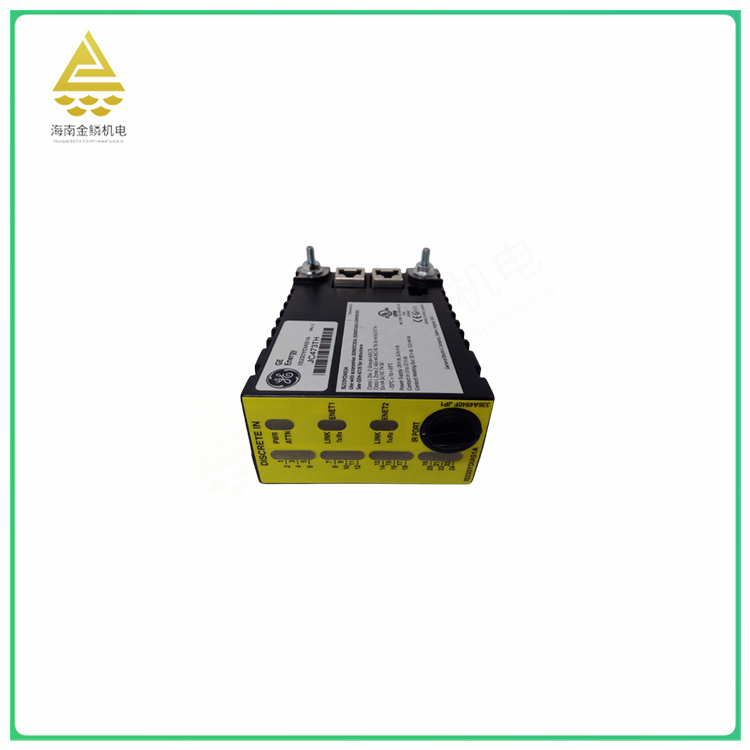

The IS220YDIAS1A is a discrete contact input/output module manufactured by General Electric Company (GE) and designed for the Mark VIe Speedtronic control system for gas and steam industrial control. It is part of the Mark IVe Control System or Mark VIeS functional safety system and is designed to plug into specific terminal boards such as IS200STCIS1A and 2A, IS400STCIS1A or 2A, or IS400TBCIS2C.
The IS220YDIAS1A has an onboard power supply with a nominal voltage of 28.0 VDC and a maximum rated voltage of 32 VDC for both contact input and contact wetting output. In addition, the module is UL certified and CE certified for use in hazardous and non-hazardous locations. The ratings used in hazardous sites can be found in relevant GE documents, such as GEH-6725.
In addition, IS220YDIAS1A is also widely used in turbine DEH system, used to adjust the speed of steam turbine, and has a variety of functions, such as brake, automatic judgment of thermal state, selection of starting mode, speed up, 3000rpm constant speed, generator false synchronous test, grid-connected load, lifting load, valve switching, etc.
The main application areas of IS220YDIAS1A include industrial automation and process control systems, especially gas and steam industrial control. It was designed for General Electric's Mark VIe Speedtronic control system, which is widely used in industrial automation.
Specifically, IS220YDIAS1A modules have a wide range of applications in the following areas:
Steam turbine control: The module can be used to adjust the speed of the steam turbine, and complete the task of hanging the brake, automatically judging the thermal state, selecting the starting mode, raising speed, 3000rpm constant speed, etc.
Generator operation: IS220YDIAS1A can also be used for generator pseudo-synchronous test, grid-connected load, lifting load and other operations.
Valve switching: This module supports operations such as single valve/sequential valve switching, which is very common in industrial automation processes.
Signal processing and transmission: As a high-performance discrete contact input/output module **, the IS220YDIAS1A** can receive signals from a variety of sensors and switches and transmit these signals to the control system for processing. At the same time, it can also transmit the output signal of the control system to various actuators to drive the normal operation of the device.
In practical applications, the IS220YDIAS1A module can be used with other equipment, such as control systems, sensors, actuators, etc., to provide stable and efficient signal processing and transmission functions for industrial automation control systems.
