Brand: GE
Model: IS220PSVOH1B
Name: Servo control module
Warranty: One year
The IS220PSVOH1B is a gas turbine card commonly used in generator sets and gas turbine systems to monitor and control the operation of the gas turbine. The card could play a key role in the power industry and industrial automation.
The IS220PSVOH1A functions as a servo control package. This component is manufactured by GE for their Mark VI or Mark Vle system. Both systems are used to control steam and gas turbine systems.

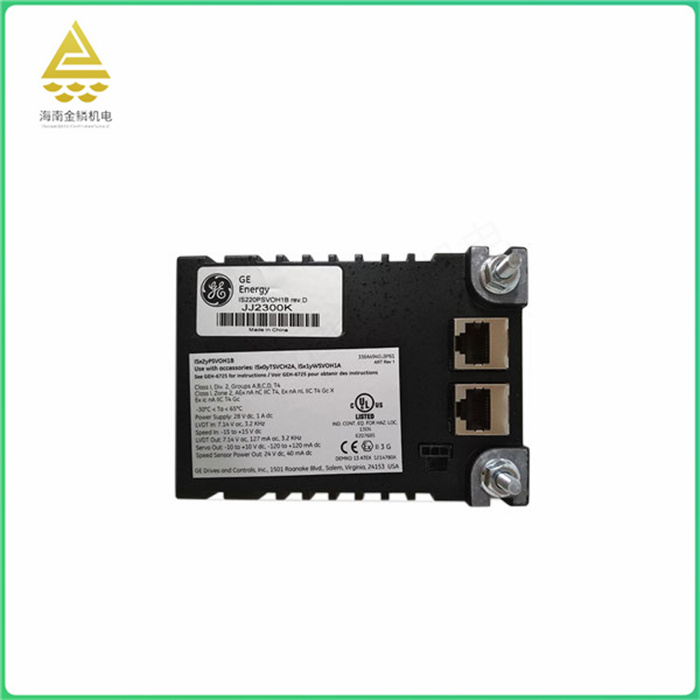

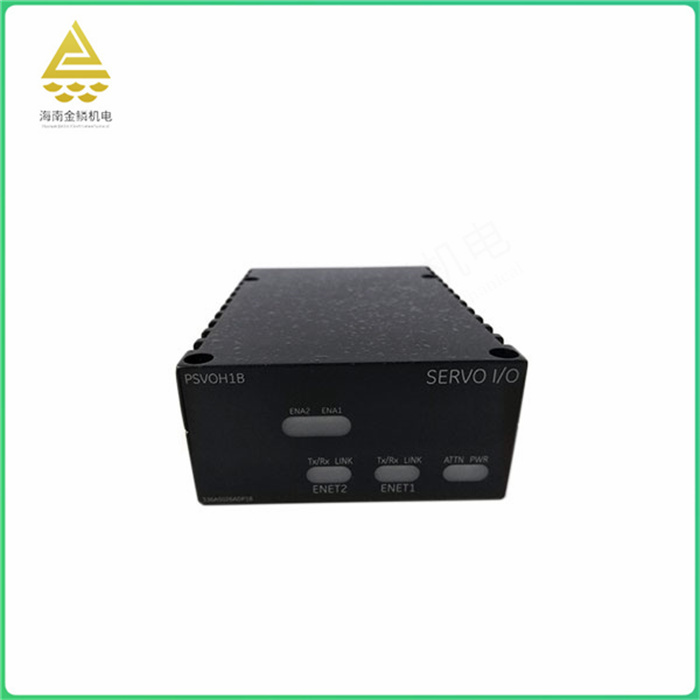

The IS220PSVOH1A provides an electrical interface between one or two 1/O Ethernet networks and TSVO servo terminal boards. The IS220PSVOH1A uses the WSVO servo driver module to handle two servo valve position loops. The PSVO has a front panel with multiple ED indicators. These include four leds indicating the status of two Ethernet networks (ENet1/Enet2), a power supply and Attn LED, and two more leds labeled ENA1/2. The front also has a single infrared end, which is not used in this package.
The IS220PSVOH1A is configured with the Control System Toolbox application after installation. The component includes a processor board with an input power connector, a local power supply, and an internal sensor for temperature monitoring. There's also flash memory and RAM on the board. The board is connected to the acquisition board.
The IS220PSVOH1A can be automatically reconfigured when it is replaced. This option is enabled/disabled through the ToolboxST application via the component editor. The component editor also allows the operator to manually reconfigure the module if needed. When replacing a terminal board, you must manually reconfigure the I/O component.
The functions of IS220PSVOH1B mainly include:
Monitoring and controlling gas turbine operation: Real-time monitoring of gas turbine operation status by collecting various sensor data, such as temperature, pressure, speed and vibration parameters. At the same time, according to the preset algorithm and strategy, the corresponding control actions are executed through the output interface to ensure the safe, stable and efficient operation of the gas turbine.
Discrete input/Output: The card has a discrete input/output port that can receive and send discrete signals such as high, medium, or low selection signals. Up to three LVDT or LVDR feedback sensor attachments are allowed per patch board (six total on board).
Pulse rate input: The pulse rate input range of IS220PSVOH1B is between 2-14 kHz, which can be used to process pulse signals of different frequencies.
Fault detection and diagnosis: The card may have fault detection and diagnosis capabilities to detect potential problems in advance during gas turbine operation and take appropriate maintenance measures to reduce downtime and maintenance costs.
In addition, the IS220PSVOH1B features a barrier patch panel design that allows up to three LVDT or LVDR feedback sensor attachments to be accepted per I/O channel (six total on the board) and up to three sensor attachments per channel. At the same time, it also has the characteristics of plug and play, convenient for users to configure and use.
In general, IS220PSVOH1B is a powerful gas turbine card, which can be widely used in the field of power industry and industrial automation to monitor and control the operating status of gas turbines.
The IS220PSVOH1B is used in the following scenarios:
Gas Turbine control: The IS220PSVOH1B can be used to monitor and control the operation of the gas turbine, including start-up, shutdown, load adjustment, performance optimization and fault detection. By collecting parameters such as temperature, pressure, speed and vibration, control operations are performed as required to ensure safe, stable and efficient operation of the gas turbine.
Power industry: In the power industry, IS220PSVOH1B can be used in generator sets and gas turbine power stations to help control the operation of generators to meet electricity demand. It can also be used in power distribution systems for communication and control with other devices.
Process control: In chemical, pharmaceutical and other fields, IS220PSVOH1B can be used in process control systems to collect various chemical reaction parameters such as temperature, pressure, liquid level, etc., and control various equipment such as heaters, agitators, valves, etc., to achieve automatic control of chemical reaction processes.
Robot control: In the robot control system, IS220PSVOH1B can control various actions such as walking, grasping, rotating, etc. It can collect sensor data, control according to preset algorithms and strategies, and perform corresponding control actions through the output interface.
To sum up, IS220PSVOH1B can be applied to gas turbine control, power industry, process control and robot control and other fields to provide solutions for the monitoring and control of industrial automation and control systems.
