The GE IS420ESWBH3A is a high quality, GE reliable electronic device with high performance and high performance
Advanced features. It is designed to meet the needs of residential and commercial applications.
Product parameters:
- Model :IS420ESWBH3A
- Power supply :120V
- Power consumption 500W
Operating temperature: -40 to 70 degrees Celsius
Mounting method: DIN rail or potential panel mounting
Input voltage: 24/28 VDC
Function abbreviation: ESWB
Size height: 18.8cm x 8.6cm x 5.6cm
Copper cable: Class 5e UTP cable with RJ45 connector
Cooling method: convection cooling
The IS420ESWBH3A is a GE industrial Ethernet switch designed for GE Speedtronic MKVIe gas turbine control systems. It is a circuit board that acts as part of the overall control system.

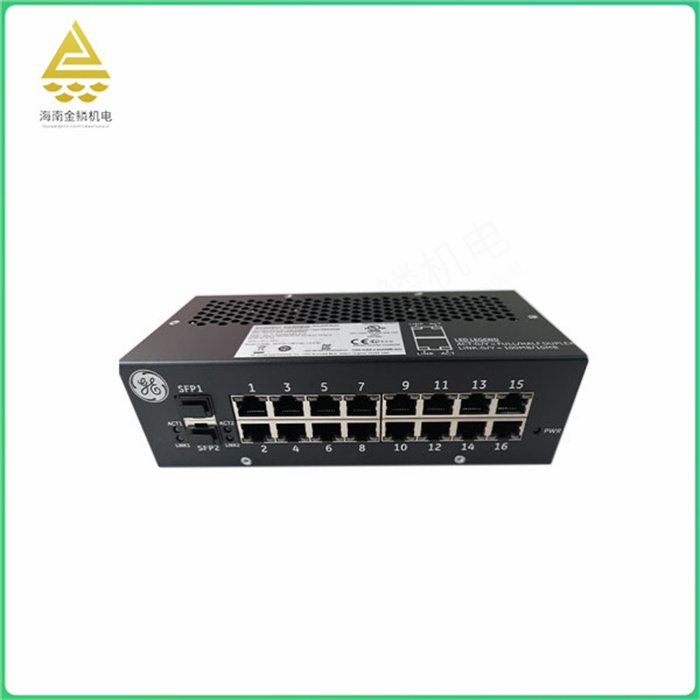

The switch has 16 10/100Base-TX ports and is installed using DIN mounting. It is compatible with 802.3, 802.3U, and 802.3x standards and features autonegotiate 10/100 base copper full/half duplex autonegotiate 100 Mbps FX uplink ports. In addition, it has an HP-MDIX automatic sensing LED indicating the presence, activity, and duplex status of the link, as well as the rate and power status of each port.
In addition, the IS420ESWBH3A has several other features and benefits. For example, it has 802.3x flow control and can achieve half-duplex communication through a negotiation mechanism. It also has auto-negotiation function, which can automatically determine the best communication rate and mode. In addition, it also has an LED indicator function, which can easily view information such as port status and speed.
Overall, the IS420ESWBH3A is a high-performance industrial Ethernet switch for industrial control systems that require high reliability and high performance.
The IS420ESWBH3A features:
Redundant power input: The IS420ESWBH3A supports two power inputs. If one power supply fails, the other power supply can continue to provide power to the switch to ensure its normal operation.
Support for multiple insertion and removal of multiple RJ-45 connectors: This design increases the flexibility of the device to meet the different connection needs in the field of industrial control. At the same time, the expected service life is 200 insert/remove cycles, improving the reliability and stability of the device.
DIN rail mounting modules: The switch can be mounted on the control system panel, which increases the maintainability and operability of the equipment. If the equipment needs to be replaced or upgraded, the user can remove the switch from the DIN rail by simply loosening the screws or using the appropriate tools before installing it to the new location.
In addition, the IS420ESWBH3A also has automatic negotiation function, LED indication function, etc., can meet different industrial control needs.
The advantages of IS420ESWBH3A include:
High reliability: The IS420ESWBH3A has a redundant power input function, if one power supply fails, the other power supply can continue to provide power to the switch to ensure its normal operation. At the same time, the expected service life is 200 insert/remove cycles, improving the reliability and stability of the device.
Flexibility: The IS420ESWBH3A supports multiple insertion and removal of multiple RJ-45 connectors, which increases the flexibility of the device to meet the different connection needs in the field of industrial control. In addition, the DIN rail mounting module allows the switch to be mounted on the control system panel, which increases the maintainability and operability of the equipment.
High performance: As an industrial Ethernet switch, the IS420ESWBH3A can perform the operation of a Tier 1 Ethernet switch, with the ability to buffer multicast and broadcast packets. At the same time, it also has automatic negotiation function and LED indication function, which can meet different industrial control needs.
In general, the advantages of the IS420ESWBH3A are mainly in terms of high reliability, flexibility and high performance, which can meet the needs of high reliability and flexibility in the field of industrial control.
