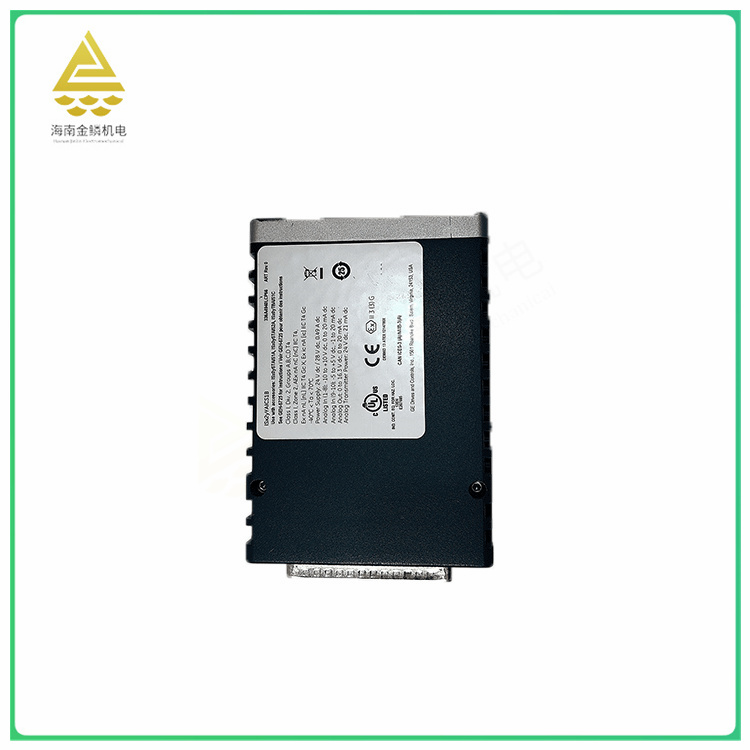

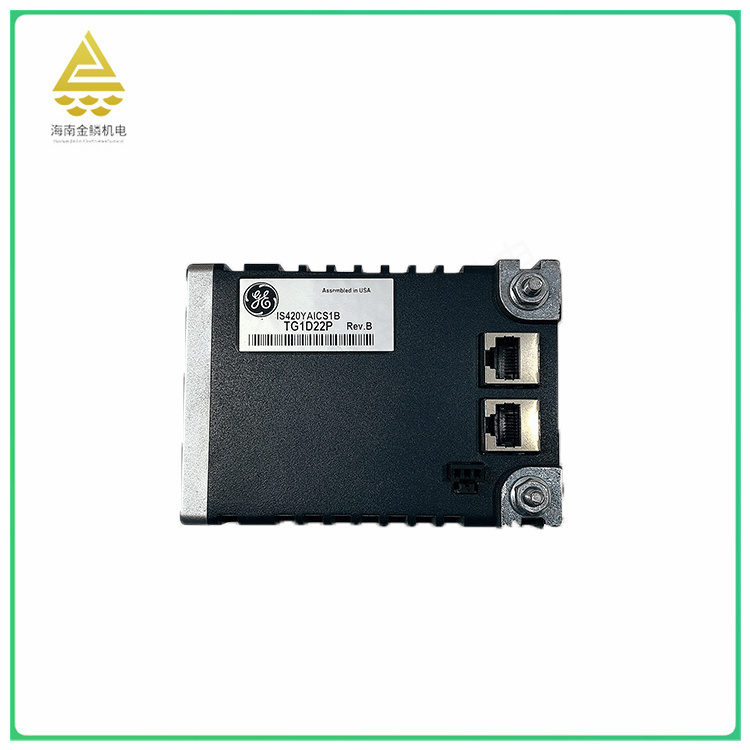

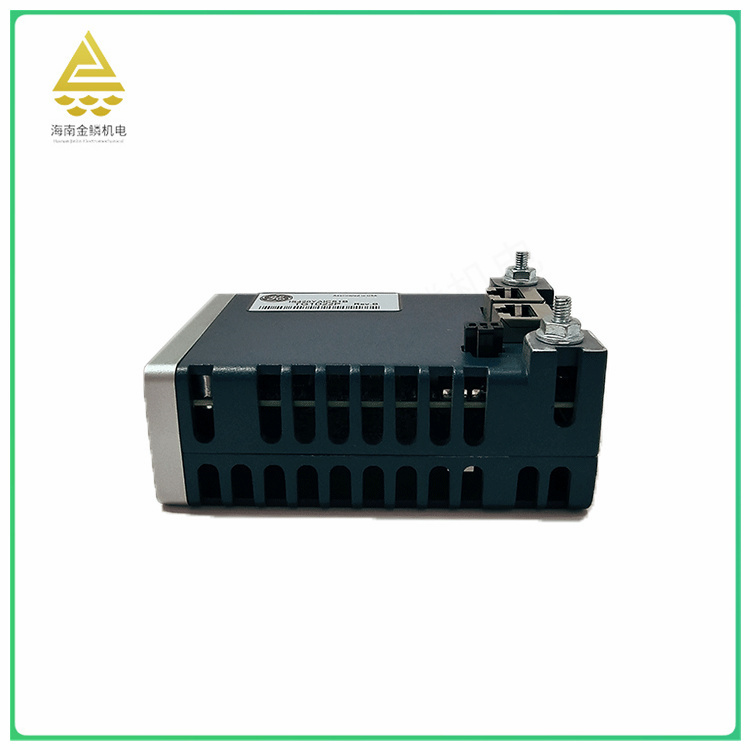

The IS420YAICS1B is an analog input/output (I/O) module designed and developed by GE. It is part of GE's Mark VIeS control system, which is widely used in the control and management of industrial turbines. Specifically, the IS420YAICS1B is an analog I/O module that connects the I/O Ethernet and the analog I/O terminal board, acting as an interface between them.
Here are some of the main features and uses of IS420YAICS1B:
Interface function: The IS420YAICS1B module is used for the interface between up to two I/O Ethernet and analog I/O terminal boards. It consists of a processor board and a capture board specific to the input function.
Compatibility: The module is compatible with BPPC processor boards and supports firmware version V05.01 or later. Also, the ControlST software should be V06.01 or later.
Configuration and installation: Before installing a new YAIC I/O module, ensure that the terminal board is securely installed. Then, insert the YAIC I/O package (or three packages for the TMR configuration) into the terminal board connector. In addition, modules should be secured using studs near Ethernet ports to ensure a solid connection.
Input/Output function: IS420YAICS1B supports up to 10 analog inputs. The first eight of them can be configured with 5 V or 10 V or 4-20 mA current loop inputs, and the last two inputs can be configured with 1 mA or 0-20 mA current inputs.
Applications: As it is part of the Mark VIeS control system, the IS420YAICS1B is commonly used for the control and management of industrial turbines, as well as other industrial automation applications that require analog inputs/outputs.
Note that the YAICS1A and S1B I/O packages are not designed to be mixed on the same T-terminal board. In addition, the same form of YAIC I/O hardware must be used on each branch of the TMR configuration.
Overall, the IS420YAICS1B is a powerful analog input/output module for a variety of industrial automation applications that require accurate analog signal processing.
The IS420YAICS1B is an analog input/output (I/O) module designed by GE as part of GE's Mark VIeS control system, which is widely used in the control and management of industrial turbines. Specifically, the applications of IS420YAICS1B include the following:
Industrial Turbine control: IS420YAICS1B is part of the Mark VIeS system, a Speedtronic system designed for the management and control of industrial turbine systems. Therefore, the module is widely used in the control system of industrial turbines, which is responsible for processing analog input/output signals to ensure stable operation and performance optimization of the turbine.
Energy industry: As industrial turbines are commonly used for power generation and other energy-related applications, IS420YAICS1B is also commonly used in the energy industry, such as power plants, oil and gas industries, etc. In these applications, modules monitor and control critical equipment and processes to ensure efficient, safe and reliable production of energy.
Automated control system: IS420YAICS1B, as an analog I/O module, can be used in a variety of automated control systems, responsible for converting analog signals to digital signals or vice versa, so as to facilitate controller processing. These systems may include production lines, process flows, building automation, etc.
Process control: In applications where precise process control is required, the IS420YAICS1B provides critical analog input/output functions. For example, in the chemical, pharmaceutical, food processing and other industries, modules can monitor and control key parameters such as temperature, pressure, flow, and ensure product quality and production efficiency.
In general, the IS420YAICS1B has a wide range of applications, mainly involving industrial turbine control, the energy industry, automated control systems and process control. In these applications, it plays a key role in ensuring the stable operation and performance optimization of the system.
