Parameter details:
Power Supply: 24V DC (+15%)
Digital input channels: 16
Input type: switch, sensor or other digital input signal
Electrical isolation: Channel isolation
Input voltage range: 0-30V DC
Input current range: 1 mA- 5 mA
Digital output channels: 16
Output type: Relays or other digital output devices
Electrical isolation: Channel isolation
Output voltage range: 24V DC (maximum load 1A)
Output current range: Max. 2A
High speed counter: 4
Counting frequency: up to 100 kHz
Counting mode: rising edge, falling edge, pulse width, etc
Communication interface:
Ethernet: supports Modbus TCP and TCP/IP
Serial port: supports Modbus RTU
PROFIBUS DP
Operating temperature: -25°C ~ +70°C
Overall dimensions (W x H x D) : 141 x 106 x 70 mm
Weight: About 1400 grams

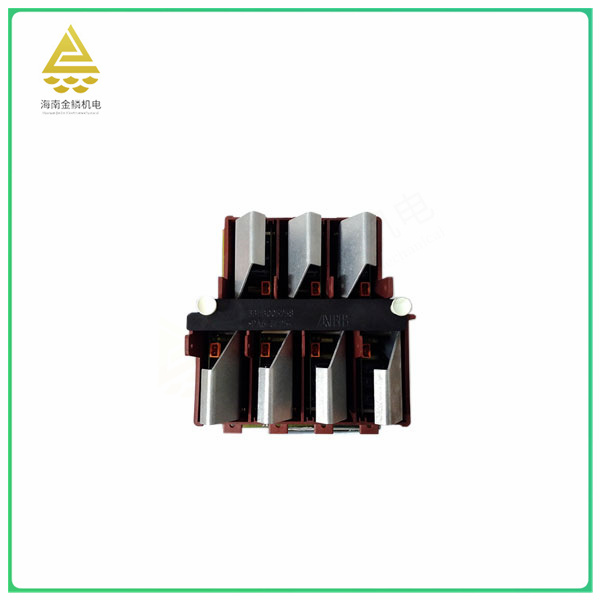

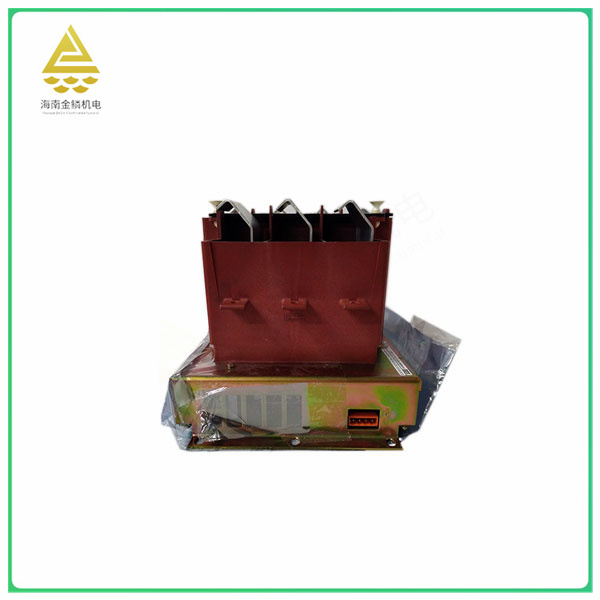

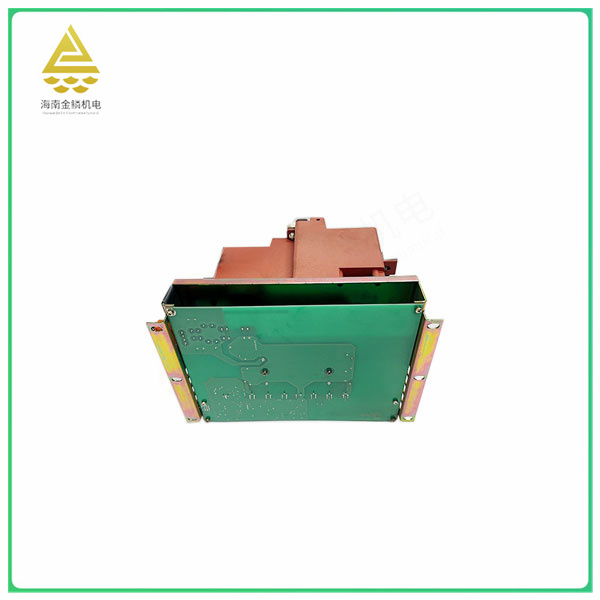

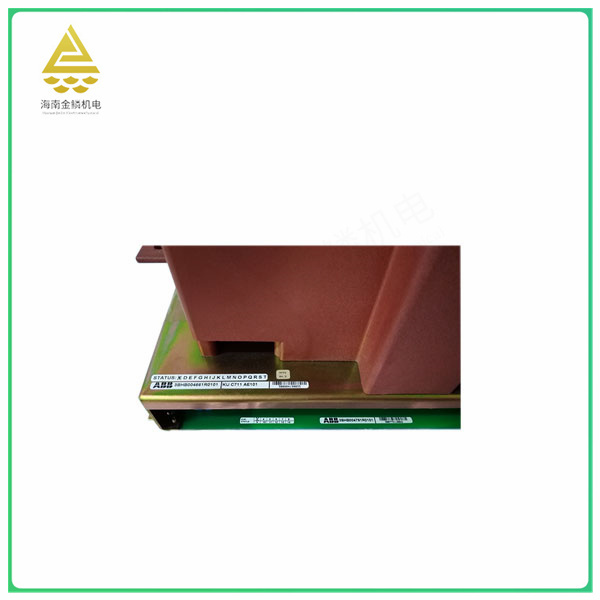

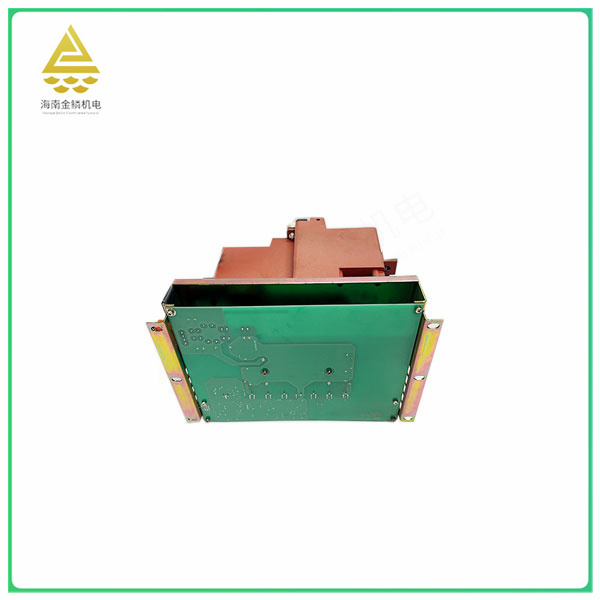

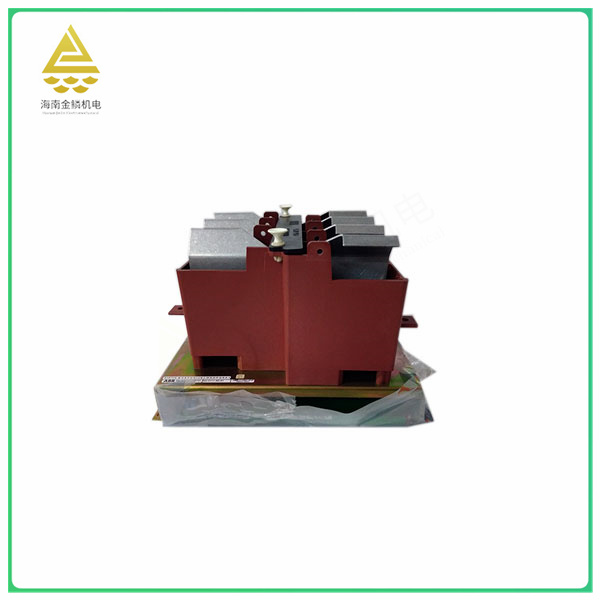

The KUC711AE101 is a module card manufactured by ABB that provides the following functions and applications:
Redundant communication module: The KUC711AE101 module is a redundant communication module that provides high-speed communication between the various system components in the Symphony Plus system. It has high reliability and stability, and can ensure the normal operation of the system and the reliability of data transmission.
Excitation control system: The KUC711AE101 is part of ABB's excitation control system, consisting of an excitation power unit and an excitation regulator. Excitation system has a direct influence on the characteristics and stability of synchronous generator, and can improve the performance and efficiency of generator and its related equipment.
In terms of application fields, KUC711AE101 can be used in various occasions requiring excitation control and communication in the fields of power, energy, transportation and so on. For example, it can be used for excitation control of large generators to improve the efficiency and stability of generators; It can also be used for the monitoring and control of the power system to realize the automation and intelligence of the power system.
In short, the KUC711AE101 is a powerful and widely used module card for a variety of applications requiring excitation control and communication.
