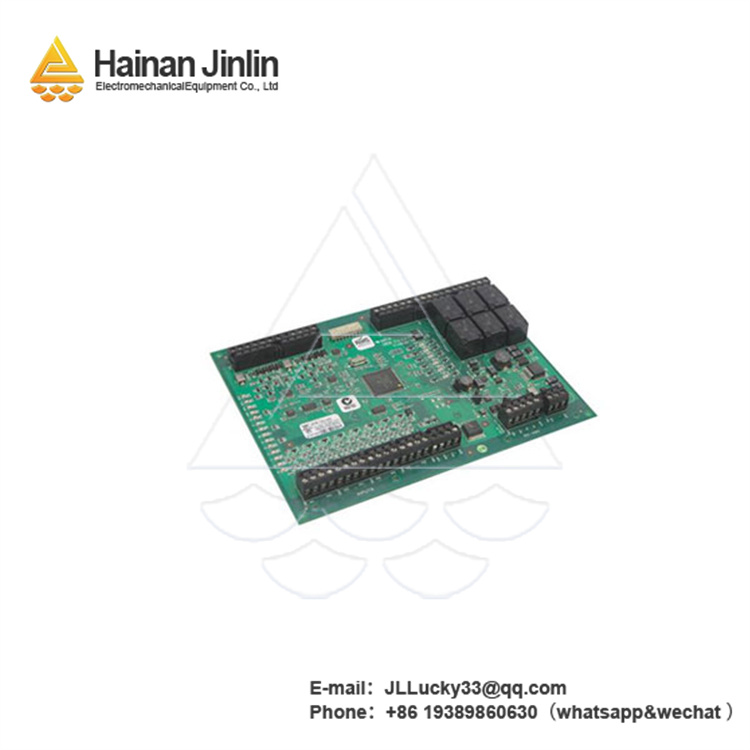

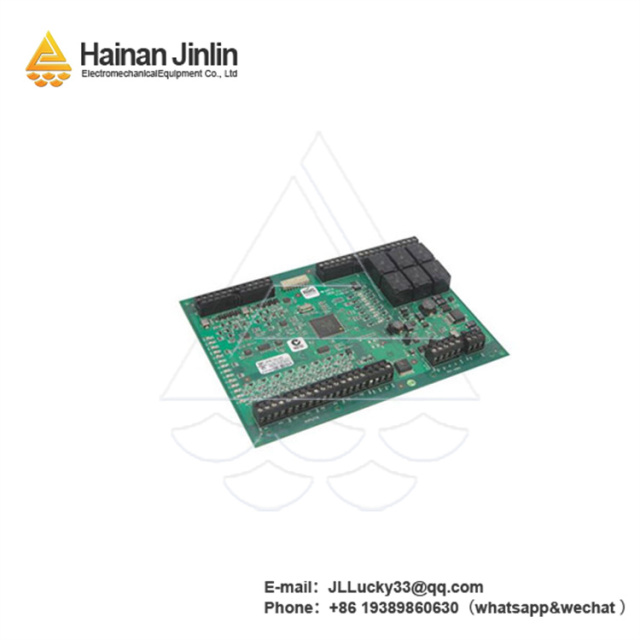

LNL-1320 Product Description
Product Overview
The LNL-1320 is a versatile industrial control module, designed to serve as a key component in building automation and security systems. Developed to meet the demands of modern commercial and industrial facilities, this module integrates seamlessly with access control, intrusion detection, and environmental management systems, providing centralized monitoring and control capabilities.
Ideal for use in office complexes, manufacturing plants, healthcare facilities, and educational institutions, the LNL-1320 offers a robust solution for managing multiple security and operational functions in a unified platform. Its modular design allows for easy scalability, enabling it to adapt to the changing needs of facilities—whether expanding access points, adding sensors, or integrating with third-party systems. With a focus on reliability and efficiency, the LNL-1320 ensures consistent performance in 24/7 operational environments, making it an essential tool for enhancing safety, streamlining operations, and reducing management costs.
Hainan Jinlin Mechanical & Electrical, a trusted distributor of industrial control and automation products, offers the LNL-1320 control module. Adhering to the "Customer First, Forge Ahead" business philosophy, we provide comprehensive support, from pre-sales system design consultation to post-sales installation and maintenance, ensuring optimal integration and long-term performance.
Technical Specifications
|
Parameter
|
Value
|
|
Product Model
|
LNL-1320
|
|
Product Type
|
Industrial Control Module (Building Automation & Security)
|
|
Processing Power
|
32-bit ARM Cortex-M4 processor (120 MHz)
|
|
Memory
|
512 KB RAM, 4 MB Flash
|
|
Supported Interfaces
|
2x RS-485, 1x Ethernet (10/100 Mbps), 8x digital inputs, 4x relay outputs
|
|
Communication Protocols
|
BACnet, Modbus RTU/TCP, LonWorks
|
|
Operating Voltage
|
24V DC ±15%
|
|
Power Consumption
|
≤ 5W (typical)
|
|
Operating Temperature
|
0°C to +55°C
|
|
Storage Temperature
|
-40°C to +85°C
|
|
Humidity Resistance
|
10% - 90% RH, non-condensing
|
|
Enclosure Rating
|
IP20 (suitable for indoor, dust-protected environments)
|
|
Mounting
|
DIN rail mount (TS35/7.5) or panel mount
|
|
Certifications
|
UL 294, CE, RoHS
|
Key Features and Benefits
Multi-Functional Integration: The
LNL-1320 acts as a central hub for integrating access control, intrusion detection, and environmental systems. It can manage door locks, card readers, motion sensors, and HVAC controls, allowing facility managers to monitor and adjust multiple functions from a single interface. This integration eliminates siloed systems, reduces complexity, and improves response times to security or operational events—such as automatically adjusting lighting and temperature when a room is unoccupied.
Flexible Communication: Supporting industry-standard protocols like BACnet, Modbus, and LonWorks, the module seamlessly connects with a wide range of third-party devices and building management systems (BMS). This flexibility ensures compatibility with existing infrastructure, minimizing the need for costly replacements when upgrading or expanding systems. In healthcare facilities, for example, it can integrate with patient monitoring systems to restrict access to sensitive areas based on real-time patient status.
Scalable Design: With 8 digital inputs and 4 relay outputs, the LNL-1320 can control multiple devices, and its modular architecture allows for expansion via additional I/O modules. This scalability makes it suitable for both small offices (managing a few access points) and large campuses (controlling dozens of doors, sensors, and equipment). As facilities grow, the module can adapt without compromising performance.
Robust Security Features: The LNL-1320 includes advanced security measures such as encrypted communication (AES-128), tamper detection, and secure firmware updates. These features protect against unauthorized access to the module and ensure data integrity, critical for maintaining the confidentiality of access logs and system configurations. In financial institutions or research labs, this level of security is essential for safeguarding sensitive areas and information.
Efficient Operation: The 32-bit ARM processor and optimized firmware ensure fast response times (≤ 100 ms for input/output processing), enabling real-time control of connected devices. Its low power consumption (≤ 5W) reduces energy costs, making it an eco-friendly choice for sustainable building initiatives. Additionally, diagnostic tools and remote monitoring capabilities minimize downtime by allowing proactive maintenance and troubleshooting.
Related Models
- LNL-1120: A compact variant with 4 digital inputs and 2 relay outputs, designed for small-scale applications like retail stores or small offices, offering a cost-effective solution for basic access control and monitoring.
- LNL-1520: An advanced model with enhanced processing power (180 MHz), additional Ethernet ports, and support for wireless protocols (Wi-Fi/Bluetooth), ideal for smart buildings requiring remote access and IoT integration.
- LNL-1320-EX: An explosion-proof version certified for hazardous areas (ATEX Zone 2), featuring a rugged enclosure and isolated circuits for use in industrial facilities with flammable materials, such as chemical warehouses or refineries.
- LNL-1320-KIT: A bundled package including the LNL-1320 module, power supply, mounting hardware, and configuration software, providing a turnkey solution for quick installation and setup.
Typical Application Areas
- Commercial Buildings: In office towers, the LNL-1320 manages access control for lobbies, elevators, and restricted floors, integrating with security cameras to verify identities and trigger alerts for unauthorized entry. It also coordinates with HVAC systems to optimize energy use in unoccupied areas.
- Industrial Facilities: In manufacturing plants, the module controls access to production lines, storage areas, and maintenance zones, ensuring only authorized personnel can enter hazardous or sensitive workspaces. It can interface with machinery sensors to lock down areas during equipment operation, enhancing worker safety.
- Healthcare Institutions: Hospitals use the LNL-1320 to restrict access to patient rooms, pharmacies, and operating theaters, with integration to nurse call systems for dynamic access permissions (e.g., allowing only on-duty staff to enter certain areas).
- Educational Campuses: Universities and schools deploy the module to manage access to dormitories, laboratories, and administrative buildings, with time-based access rules (e.g., restricting lab access outside class hours) and integration with campus security systems for emergency lockdowns.
We provide a one-year warranty for the
LNL-1320 control module, covering manufacturing defects and performance issues. Our pre-sales team offers guidance on system design, protocol compatibility, and scalability planning to ensure the module meets your facility’s specific needs. After-sales services include on-site installation support, firmware updates, and technical troubleshooting. If you require a different model or custom configurations, please contact us immediately—we are committed to delivering tailored automation and security solutions for your operations.
