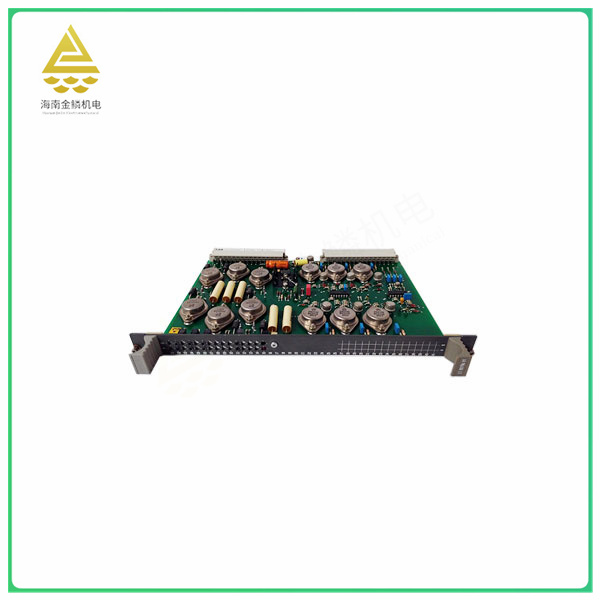

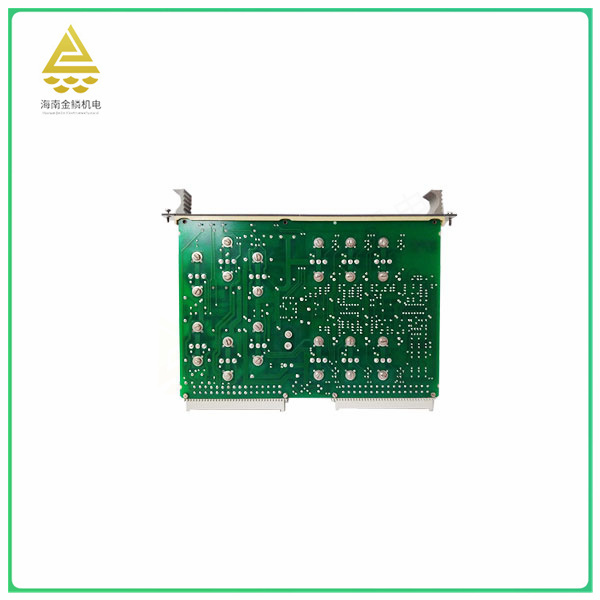

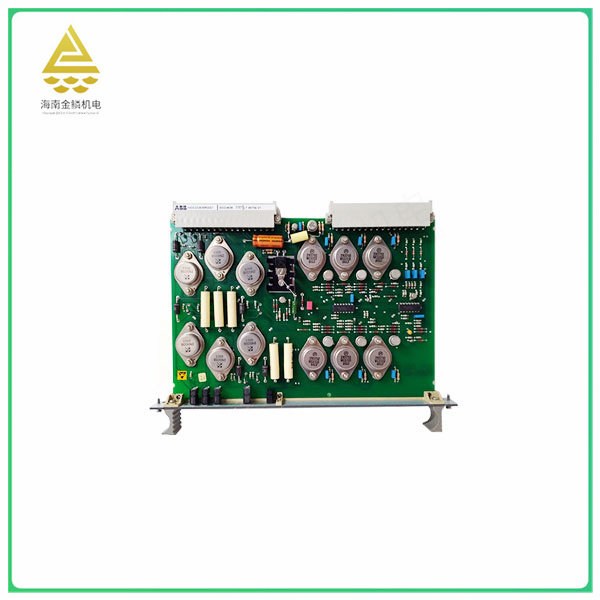

The LT8978bV1 HIEE320639R1 excitation regulator is equipped with over excitation limit, over excitation protection, low excitation limit, power system stabilizer, V/H limit, rotor overvoltage protection and PT break line blocking protection units. Its additional functions include rotor point grounding protection, rotor temperature measurement, serial communication module, jumper, DSP intelligent current sharing, shaft voltage burr absorption device, etc.
The LT8978b-V1 is a Pentium Pro processor that features the following:
New microarchitecture: Pentium Pro integrates a new microarchitecture that differs from Pentium's pregnenolone microarchitecture.
Superpipelined structure: It has a decoupled 14-level superpipelined structure that uses a single instruction pool.
Out-of-order execution: The Pentium Pro features out-of-order execution, including speculative execution through register renaming.
Wider address bus: It has a wider 36-bit address bus and supports Physical Address extension (PAE), allowing it to access up to 64 GB of memory.
Instruction cache: There is an 8 KB memory instruction cache, of which up to 16 bytes are taken and sent to the instruction decoder.
Decoder capabilities: There are three instruction decoders, but the decoder capabilities are not equal. A universal decoder can produce up to four microoperations per cycle, while a simple decoder can produce one microoperation per cycle.
Multi-cycle instruction processing: Instructions that require more than four microoperations are translated with the help of a sequencer that generates the required microoperations over multiple clock cycles.
