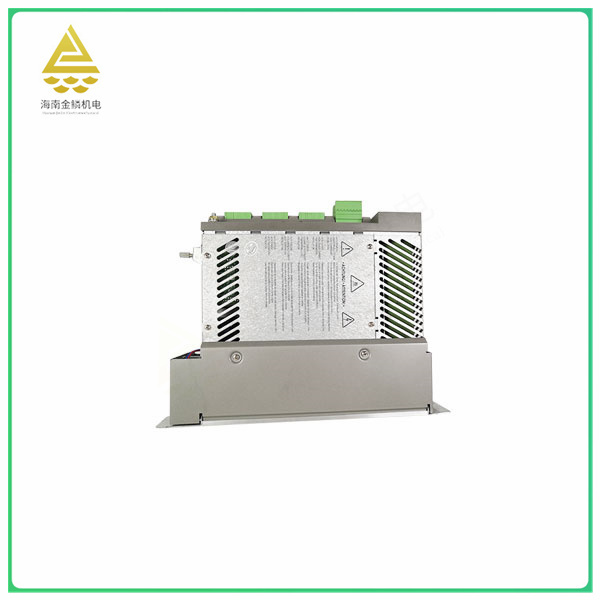

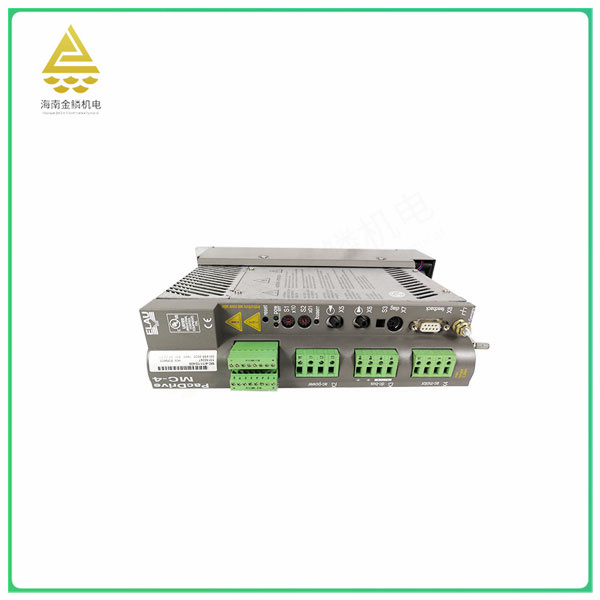

ELAU MC-41110400 servo driver is mainly composed of servo control unit, power drive unit and communication interface unit. The servo control unit includes position controller, speed controller, torque controller and current controller. The servo driver can be divided into two modules, the power board and the control board, which are relatively independent in function.
The MC-41110400 is a servo drive with the following characteristics:
Suitable for distributed structures, with powerful system functions, system environment and system capabilities.
PLC operating system, with powerful programming and debugging functions.
With the characteristics of the manufacturer's standard, the system parameter setting and program control function is powerful.
With a variety of material coding, easy to produce and quality management.
Overall, the MC-41110400 is a powerful, reliable, easy to program and debug servo drive suitable for various industrial automation control fields.
MC-41110400 servo driver is a controller used to control servo motors. In the operation panel there are four keys, three arrow keys and one OK key. The direction up represents the previous and increase, the direction down represents the next and decrease, the direction left represents the return, and the SET key is OK.
After powering on, press the back button twice to enter the first-level menu, and you can select functional options by direction up and direction down. For example, to change the enable status of the servo MC-41110400, find the PA group, click SET, and then find the serial number 53 by the up and down key, click OK to enter. There are two enable states, 0 indicates the external enable, controlled by the upper computer to signal, 1 indicates the internal enable, the drive internally controls the motor. If you want to enable internal, set the parameter to 1, and then long press the OK key for three seconds, when the red dot in the lower right corner of the number disappears, it means that the setting is ready, exit and press the return key.
When you want to restore the factory Settings MC-41110400 when the parameters are confused, you can do this: first find PAO, click OK, change the default factory value 315 to 385, long press the OK key, then click back, find PA1, change 80 to DEF after confirming, and then long press the OK key to complete the factory Settings restoration. Finally, don't forget to power off and restart.
