Product Overview

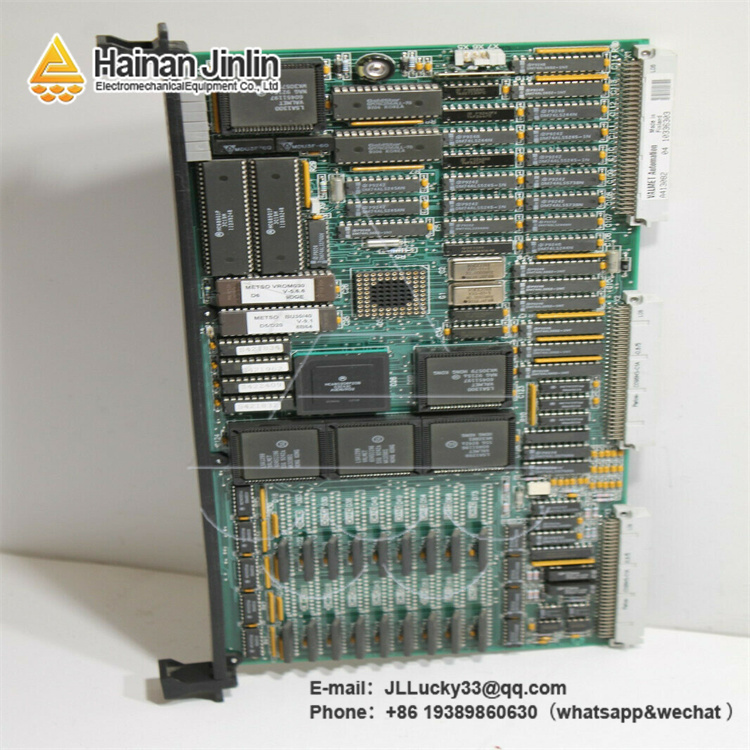

The Metso A413-818122 is a specialized control interface module designed to serve as a communication bridge between field-level devices and Metso’s industrial automation systems, making it a cornerstone for process industries like mining, pulp & paper, and bulk material handling. As an integral part of Metso’s control ecosystem, this module excels in translating and routing control signals with low latency, ensuring seamless coordination between sensors, actuators, and central DCS/PLC platforms. Key features of the Metso A413-818122 include dual-protocol support for flexible integration, ruggedized construction for harsh industrial environments, and built-in fault isolation to prevent system-wide disruptions. Whether deployed in retrofits of existing Metso control systems or new plant installations, the Metso A413-818122 guarantees consistent signal integrity and operational reliability—critical for industries where unplanned downtime directly impacts productivity and profitability.
Hainan Jinlin Mechanical & Electrical is a distributor of industrial control products, specializing in a wide range of brands. We possess extensive industry knowledge and market insights. Adhering to the "Customer First, Forge Ahead" business philosophy, we provide high-quality customer service. We're here for you, dedicated to meeting your needs!
Technical Specifications
|
Parameter
|
Value
|
|
Product Model
|
Metso A413-818122
|
|
Manufacturer
|
Metso
|
|
Product Type
|
Industrial Control Interface Module
|
|
Operating Voltage
|
24 V DC (±12% tolerance)
|
|
Operating Temperature
|
-15°C to +60°C (5°F to +140°F)
|
|
Communication Protocol
|
Metso Open Protocol & Modbus RTU/TCP
|
|
Signal Routing Capacity
|
Up to 24 bidirectional signal paths
|
|
Mounting Type
|
DIN Rail (35mm standard) / Panel Mount
|
|
IP Rating
|
IP20 (front panel); IP40 (enclosed)
|
|
Power Consumption
|
Max 8W (full load)
|
Key Features and Benefits
The Metso A413-818122 distinguishes itself as a reliable and versatile control interface solution, addressing core challenges of signal coordination in complex industrial setups and delivering measurable value to operators.
Low-Latency Signal Routing
Engineered for high-speed data transmission, the
Metso A413-818122 processes and routes control signals with a latency of less than 10ms—critical for time-sensitive applications like mining conveyor belt control or pulp mill roller speed regulation. This low latency ensures that field devices respond in real time to commands from the central control system, preventing process delays and maintaining operational efficiency.
Dual-Protocol Compatibility
The Metso A413-818122 supports both Metso’s proprietary Open Protocol (for seamless integration with Metso DNA and Automation 8000 systems) and industry-standard Modbus RTU/TCP. This dual-protocol design eliminates compatibility barriers, allowing the module to connect with legacy third-party devices (e.g., older PLCs or SCADA systems) and new Metso equipment alike. For plant managers, this means avoiding costly replacements of existing infrastructure during upgrades.
Ruggedized Build for Harsh Environments
Constructed with industrial-grade materials and a sealed enclosure option (IP40), the Metso A413-818122 resists dust, humidity, and vibration—common challenges in mining and bulk material handling facilities. It also includes temperature compensation technology, ensuring stable performance even as ambient temperatures fluctuate. This ruggedness extends the module’s service life to an average of 8+ years, reducing maintenance cycles and replacement costs.
Fault Isolation and Diagnostics
A standout feature of the Metso A413-818122 is its built-in fault isolation capability: if one signal path fails (e.g., due to a short circuit in a connected sensor), the module automatically isolates the affected path to prevent the fault from spreading to other parts of the system. Complementing this, the module’s advanced diagnostic tools monitor power supply stability, protocol communication, and signal integrity in real time. Alerts are sent to the central control system, enabling technicians to address issues (such as loose wiring or sensor degradation) proactively—minimizing unplanned downtime.
Flexible Mounting and Scalability
The Metso A413-818122 supports both DIN rail and panel mounting, adapting to diverse cabinet layouts in industrial facilities. It also offers scalable signal capacity: multiple modules can be daisy-chained to handle up to 192 signal paths, making it suitable for both small-scale applications (e.g., a single pulp dryer control) and large-scale systems (e.g., an entire mining site’s conveyor network).
Related Models
- Metso A413-818123 – Enhanced version of the Metso A413-818122 with expanded signal capacity (32 bidirectional paths) for large-scale process plants.
- Metso A413-818121 – Previous generation control interface module; compatible with older Metso DNA systems but lacks the Metso A413-818122’s Modbus TCP support.
- Metso A413-818124 – Ruggedized variant of the Metso A413-818122 with an extended temperature range (-25°C to +65°C) for extreme outdoor applications (e.g., arctic mining sites).
- Metso A413-818125 – Redundant counterpart to the Metso A413-818122, designed for safety-critical processes (e.g., pulp mill boiler control) where uninterrupted signal routing is non-negotiable.
- Metso A413-818126 – Compact version of the Metso A413-818122 with a 50% smaller footprint, ideal for space-constrained control cabinets (e.g., in mobile bulk handling equipment).
- Metso A413-818127 – Communication booster module that pairs with the Metso A413-818122 to extend signal transmission distance (up to 1km) for large industrial sites.
- Metso A413-818128 – Digital-only variant of the Metso A413-818122, focused on on/off signal routing for applications like pump control or valve actuation.
Company Expertise & Warranty
As a certified partner of industry leaders such as Bentley Nevada, Honeywell, and Metso, we provide key components for process industries, discrete manufacturing, and infrastructure projects. Our team offers specialized pre-sales support for the Metso A413-818122—including compatibility checks with existing Metso systems and custom integration planning—and comprehensive after-sales service, such as on-site technical troubleshooting and firmware updates. All products, including the Metso A413-818122, come with a one-year warranty to cover manufacturing defects and performance issues.
If you cannot find the model you need, please contact us immediately.
Contact Information
Typical Application Areas
- Process Industries: Signal coordination for mining conveyor systems (using the Metso A413-818122 to link speed sensors and motor controllers), pulp & paper mill dryer section control (routing temperature and pressure signals), and bulk material handling facilities (coordinating weigh scale data with sorting equipment).
- Discrete Manufacturing: Integration with PLCs in automotive component plants, where the Metso A413-818122 routes quality inspection sensor data to the central control system for real-time defect detection.
- Infrastructure: Wastewater treatment plant pump control (using the Metso A413-818122 to connect level sensors and pump actuators) and renewable energy facilities (coordinating solar panel tracker position signals with the main DCS).
