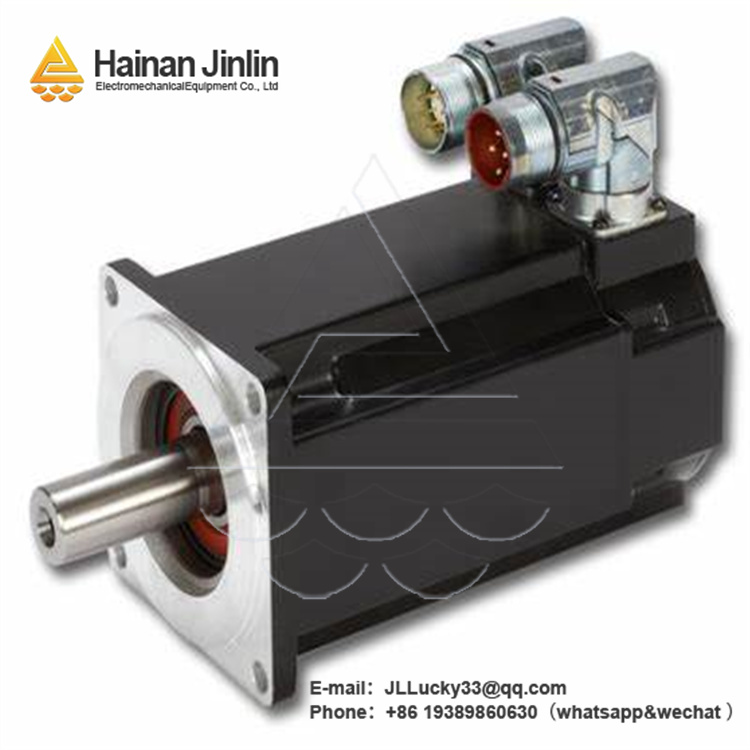

MSK061C-0600-NN-S1-UP1-NNNN Product Description
Product Overview
The MSK061C-0600-NN-S1-UP1-NNNN is a high-performance servomotor, engineered to deliver precise motion control in industrial automation applications. As a key component in servo systems, this motor combines robust mechanical design with advanced electronic features to ensure accurate positioning, high dynamic response, and reliable operation in demanding industrial environments.
Designed by a leading manufacturer in motion control technology, the MSK061C-0600-NN-S1-UP1-NNNN is optimized for applications requiring tight speed and position regulation, such as CNC machining centers, robotic arms, packaging machinery, and automated assembly lines. Its compact form factor and high torque density make it suitable for integration into space-constrained systems without compromising performance, making it a versatile choice for modern industrial automation.
Hainan Jinlin Mechanical & Electrical, a trusted distributor of industrial control products, offers the MSK061C-0600-NN-S1-UP1-NNNN servomotor. We adhere to the "Customer First, Forge Ahead" business philosophy, providing comprehensive support for system integration, commissioning, and maintenance to ensure optimal performance.
Technical Specifications
|
Parameter
|
Value
|
|
Product Model
|
MSK061C-0600-NN-S1-UP1-NNNN
|
|
Manufacturer
|
Leading motion control systems manufacturer
|
|
Product Type
|
Synchronous Servomotor
|
|
Rated Power
|
1.5 kW]
|
|
Rated Torque
|
6 Nm]
|
|
Peak Torque
|
18 Nm]
|
|
Rated Speed
|
6000 rpm
|
|
Rotor Inertia
|
, 0.0012 kg·m²]
|
|
Feedback Device
|
[e.g., Multi-turn absolute encoder, 2048 ppr]
|
|
Motor Length
|
165 mm
|
|
Frame Size
|
60 mm
|
|
Voltage Rating
|
3~AC 400 V]
|
|
Current Rating (RMS)
|
[ 4.5 A]
|
|
Protection Class
|
IP65 (shaft end sealed)
|
|
Cooling Method
|
Natural convection
|
|
Insulation Class
|
F
|
|
Certifications
|
CE, UL, RoHS
|
Key Features and Benefits
High Dynamic Performance: The MSK061C-0600-NN-S1-UP1-NNNN servomotor delivers exceptional dynamic response, with a rated speed of 6000 rpm and high peak torque capability. This allows for rapid acceleration and deceleration, making it ideal for applications requiring quick changes in motion, such as pick-and-place robots in electronics manufacturing. The motor’s low rotor inertia ensures precise control even at high speeds, minimizing overshoot and improving positioning accuracy.
Precise Positioning: Equipped with a high-resolution absolute encoder, the motor provides accurate position feedback, enabling closed-loop control with positioning errors as low as [e.g., ±0.01 mm] in linear applications. This level of precision is critical in CNC machining, where tight tolerances are required for part quality, and in automated inspection systems that demand consistent positioning of sensors.
Robust Construction: Built to withstand harsh industrial conditions, the MSK061C-0600-NN-S1-UP1-NNNN features an IP65 protection rating, protecting against dust and water spray. Its rugged design ensures reliable operation in environments with vibration, temperature fluctuations, and contaminants, such as in automotive assembly plants or food processing facilities (with appropriate hygiene adaptations). The insulation class F rating allows for operation at high ambient temperatures, expanding its application range.
Efficient Operation: The synchronous motor design ensures high efficiency (typically [e.g., >90%] at rated load), reducing energy consumption and heat generation. This efficiency is particularly beneficial in continuous-operation applications, such as conveyor systems in logistics centers, where energy savings translate to lower operating costs over time.
Seamless System Integration: The motor is compatible with a wide range of servo drives from the same manufacturer, enabling plug-and-play integration into existing motion control systems. This compatibility simplifies system design and commissioning, as the motor and drive communicate seamlessly to optimize performance. Additionally, support for standard industrial communication protocols (e.g., PROFINET, EtherCAT) allows for easy integration into factory automation networks.
Related Models
- MSK071C-0600-NN-S1-UP1-NNNN: An upgraded version with higher rated power and torque, suitable for applications requiring greater force, such as heavy-duty material handling robots or large-format 3D printers. It shares the same high-speed capability as the MSK061C-0600-NN-S1-UP1-NNNN but with enhanced load capacity.
- MSK051C-0600-NN-S1-UP1-NNNN: A smaller frame variant with lower power and torque, designed for compact applications where space is critical, such as medical devices or small precision assembly machines. It offers similar precision to the MSK061C-0600-NN-S1-UP1-NNNN but in a more compact form.
- MSK061C-0450-NN-S1-UP1-NNNN: A lower-speed version (4500 rpm) with higher torque density, ideal for applications requiring high torque at moderate speeds, such as rotary tables in machining centers or winding machines in textile production.
- MSK061C-0600-NN-S2-UP1-NNNN: A variant with enhanced feedback options, including a resolver or higher-resolution encoder, catering to applications with strict accuracy requirements, such as aerospace component manufacturing or semiconductor wafer handling.
As a certified partner of industry leaders, we supply components for diverse industrial sectors. The MSK061C-0600-NN-S1-UP1-NNNN is widely used in machine tools (CNC mills and lathes), robotics (articulated and SCARA robots), packaging machinery (fill-seal machines and labelers), and automated material handling (conveyor systems and linear actuators).
We offer a one-year warranty for the
MSK061C-0600-NN-S1-UP1-NNNN servomotor. Our pre-sales team provides guidance on motor selection, sizing, and system integration, while after-sales support includes troubleshooting, repair services, and technical training. If you need detailed specifications or have specific application requirements, please contact us immediately—we are committed to providing tailored solutions for your motion control needs.
