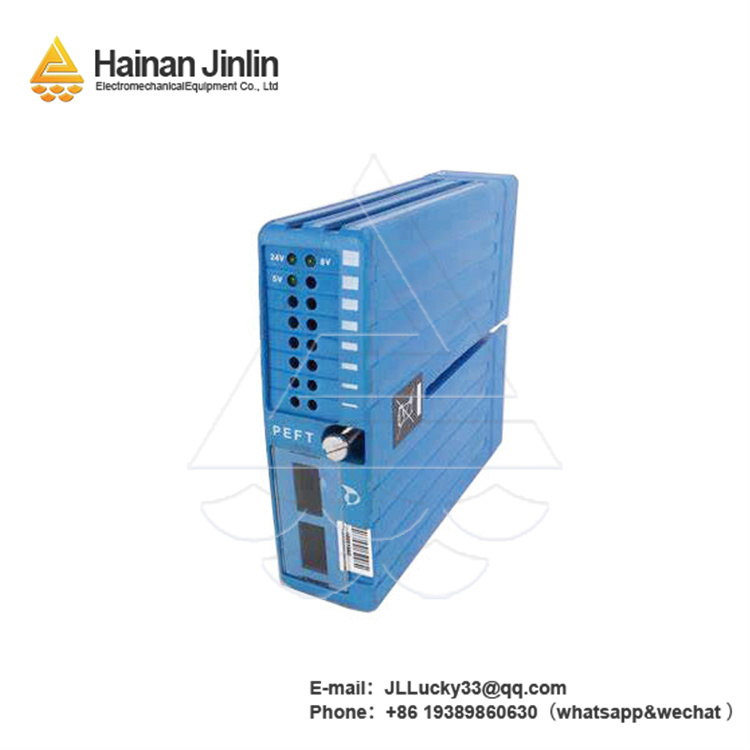

The Metso D201134 is a high-reliability industrial control module engineered exclusively for Metso’s advanced process automation systems, delivering precision control and seamless integration in heavy-duty industrial environments. As a core component of Metso’s automation portfolio—trusted in mining, minerals processing, and pulp & paper industries—the Metso D201134 excels in real-time signal processing, fault-tolerant operation, and compatibility with Metso’s flagship control platforms (e.g., Metso DNA and Metso Outotec Lokotrack® systems). Key features of the Metso D201134 include ruggedized hardware for harsh conditions, multi-channel I/O support, and built-in diagnostic capabilities that minimize unplanned downtime. Whether regulating material flow in a mining crusher, controlling chemical dosing in pulp processing, or monitoring equipment health in a mineral separator, the Metso D201134 ensures consistent performance, simplifies system maintenance, and supports the high productivity demands of process-critical operations.
Hainan Jinlin Mechanical & Electrical is a distributor of industrial control products, specializing in a wide range of brands. We possess extensive industry knowledge and market insights. Adhering to the "Customer First, Forge Ahead" business philosophy, we provide high-quality customer service. We're here for you, dedicated to meeting your needs!
The Metso D201134 is purpose-built to integrate seamlessly with Metso’s DNA distributed control system (DCS) and Lokotrack® mobile crushing plants—eliminating compatibility gaps common with third-party modules. This native integration allows for plug-and-play setup, automatic firmware synchronization, and unified system monitoring via Metso’s HMI interfaces. For operators relying on Metso’s process automation solutions (e.g., in minerals processing), this means faster deployment, reduced configuration errors, and simplified system upgrades.
Engineered to withstand the rigors of mining, pulp, and paper operations, the Metso D201134 features a ruggedized enclosure and vibration-resistant design (5g, 10-500Hz). Its wide operating temperature range (-25°C to 65°C) ensures reliable performance in cold mine sites, hot processing facilities, and outdoor installations—addressing a critical pain point for operators in harsh climates. Additionally, the module’s industrial-grade components resist corrosion from dust, moisture, and chemical vapors, extending its service life in aggressive environments.
With 8 analog inputs (for sensors measuring pressure, level, or temperature), 4 analog outputs (for controlling valves, pumps, or actuators), and 2 digital inputs (for status monitoring), the Metso D201134 eliminates the need for multiple single-function modules. This all-in-one design reduces cabinet space requirements, simplifies wiring, and lowers overall hardware costs. For example, in a pulp mill, the module can simultaneously monitor pulp consistency (via analog inputs) and control chemical dosing pumps (via analog outputs)—streamlining process oversight.
The Metso D201134 includes advanced diagnostic tools that continuously monitor channel integrity, power supply stability, and communication links. Faults (e.g., open-circuit sensors, overloaded outputs) are flagged in real time via the Metso DNA DCS, with detailed alerts (e.g., “Channel 3 Input Fault: No Signal”) to guide maintenance teams. This predictive capability reduces troubleshooting time from hours to minutes, preventing costly process interruptions—critical in industries like mining where unplanned downtime can cost thousands of dollars per hour.
Despite its multi-channel functionality, the Metso D201134 maintains low power consumption (≤18W at full load), reducing energy costs for large-scale systems with dozens of modules. Its optimized thermal design dissipates heat evenly, eliminating hotspots that can degrade components over time. This not only lowers operational expenses but also reduces the need for additional cabinet cooling—saving space and simplifying system design.
- Metso D201135 – Upgraded variant of the Metso D201134 with 12 analog inputs (vs. 8 on the Metso D201134) for high-density sensor applications (e.g., large-scale mineral processing plants).
- Metso D201133 – Previous-generation control module sharing core Metso DNA compatibility with the Metso D201134 but lacking digital input channels and vibration resistance.
- Metso D201136 – Ethernet-enabled version of the Metso D201134, adding Modbus TCP support for integration with modern networked DCS systems (e.g., Metso DNA 7.0+).
- Metso D201140 – Redundant control module for the Metso D201134, providing 1:1 failover to ensure uninterrupted process control in safety-critical applications (e.g., mine hoist systems).
- Metso D201138 – Isolated I/O module paired with the Metso D201134, offering galvanic isolation (2.5kVrms) to protect against ground loops in sensitive processes (e.g., pulp bleaching).
- Metso D201132 – Compact version of the Metso D201134 (dimensions: 90mm × 160mm × 70mm) for space-constrained Lokotrack® mobile crushers.
- Metso D201139 – High-temperature variant of the Metso D201134, with an extended operating range (-30°C to 70°C) for extreme cold mining sites or high-heat incineration plants.
- Metso D201142 – Digital I/O expansion module for the Metso D201134, adding 16 digital channels (8 input/8 output) to support more status monitoring or discrete control tasks (e.g., conveyor belt activation).
As a certified partner of industry leaders such as Metso, Bentley Nevada, and Honeywell, we specialize in sourcing Metso’s process control components—including the Metso D201134—for sectors where Metso’s technology is integral:
- Mining & Minerals Processing: Critical for controlling Lokotrack® crushers, mineral separators, and ore handling systems—where the Metso D201134 monitors feed rates and adjusts crusher settings to optimize throughput.
- Pulp & Paper Industry: Used in pulp cooking, bleaching, and papermaking lines, with the Metso D201134 regulating chemical dosing, pulp consistency, and dryer temperatures to ensure product quality.
- Aggregate Production: Integral to Metso’s stationary crushing plants, where the module controls screen vibrators, conveyor speeds, and hopper levels to maintain steady material flow.
Our team of Metso-certified specialists provides end-to-end support for the Metso D201134: pre-sales, we verify compatibility with your Metso DNA or Lokotrack® system; post-sales, we offer on-site installation guidance and firmware updates. All Metso D201134 units come with a 1-year warranty covering manufacturing defects. If you require technical documentation, spare parts, or a different Metso model, contact us immediately for personalized assistance.
