Model: ND32-5610VS-001-000-00
Category: Servo converter
Brand: Novotron
Warranty: One year
Description

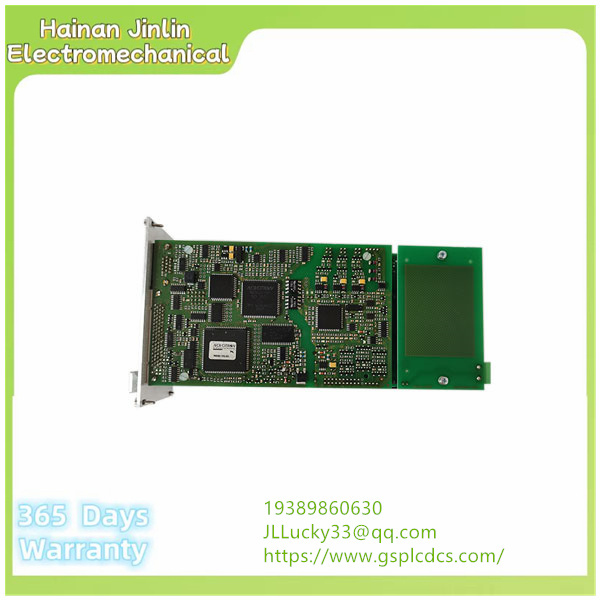

Novotron ND32-5610VS-001-000-00 Servo converter
servo converter
Technical specifications
Parameters Unit-5605-5610-5620
Rated supply voltage VAC 400 400 400
Input frequency Hz 50/60 50/60 50/60
Supply voltage range VAC 400 +/- 10% 400 +/- 10% 400 +/- 10%
Number of input phases 3 3 3
Connected load at rated current kVA 3,5, 7, 14
Maximum inrush current A 5 5 5
Protection (three-phase) A 3 x 10 3 x 20 3 x 40
Power supply 24 VDC +/- 15%, 1 A stabilized and earthed, externally
Power consumption 24W, if no outputs are connected (additional 2,5 W per output)
DC link voltage
at rated supply voltage V 560 560 560
Overvoltage turn-off threshold V 720 720 720
Undervoltage turn-off threshold V 200 200 200
Rated output voltage V eff 500 500 500
Number of output phases 3 3 3
DC link capacity µF 300 300 675
Power dissipation of inverter
at rated current W 100 130 260
Residual voltage drop at rated current V 6 6 6
Clock frequency of inverter kHz 9,76 4,9, 4,9
Rated motor current Tu = 25 ˚C A eff 5 10 20
Peak motor current Tk = 25 ˚C A eff 10 20 35
Weight compact case kg 3,8, 3,8, 5,3. Weight compact case kg 3,8,8, 5,3
Dimensions compact case:
331 mm x 180 mm x mm 87 87 15
