Product Overview

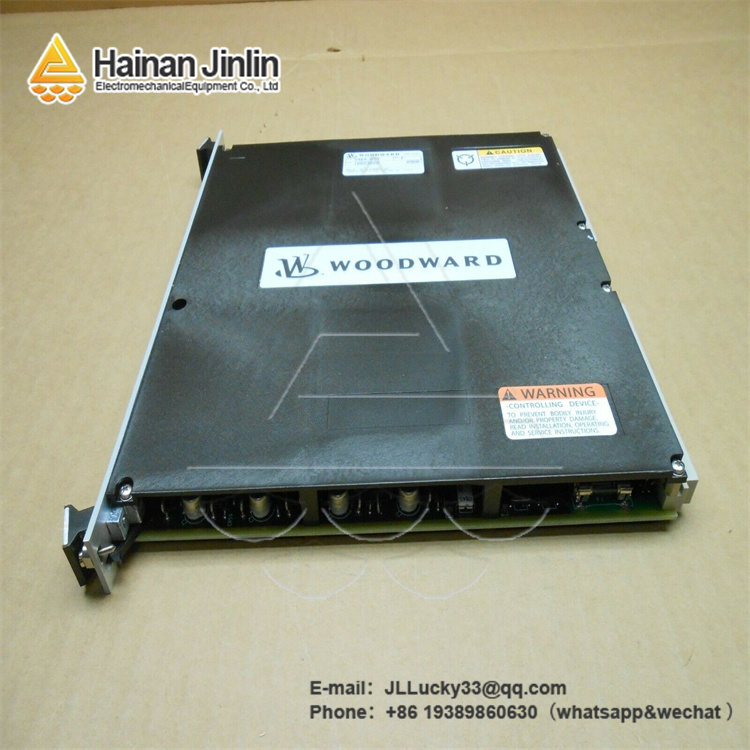

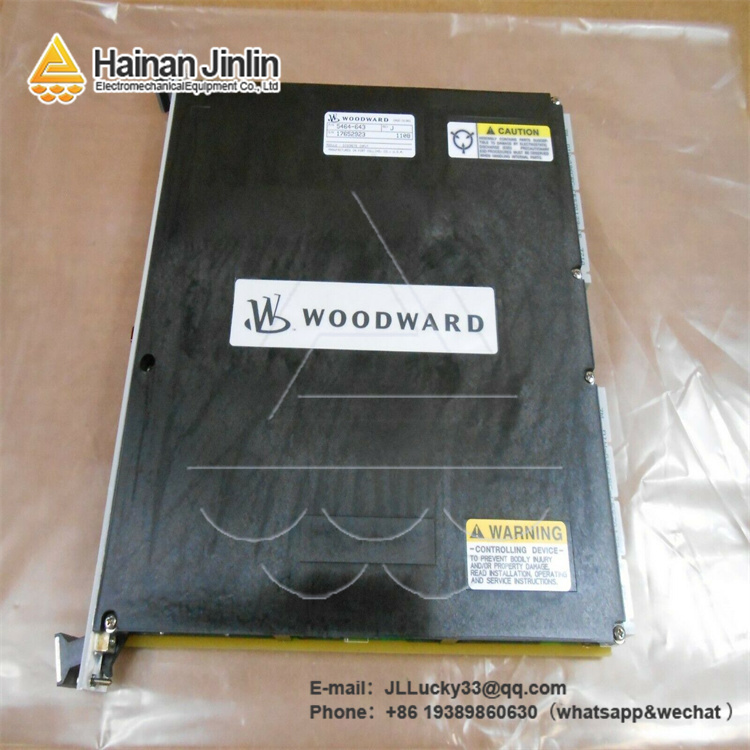

The Woodward 5464 - 654 is a high - performance discrete output module, a cornerstone of Woodward's industrial control solutions. Renowned for its reliability and versatility, this module plays a crucial role in diverse industrial settings, particularly in power generation, oil and gas, and manufacturing processes. It serves as a vital link between control systems and field devices, enabling precise control signals to be sent to actuators, solenoids, and relays. With its robust design and advanced features, the Woodward 5464 - 654 ensures seamless operation even in the harshest industrial environments. It is engineered to meet the exacting standards of industries where continuous and accurate control is non - negotiable.
We are a distributor of industrial control products, specializing in a wide range of brands. We possess extensive industry knowledge and market insights. Adhering to the "Customer First, Forge Ahead" business philosophy, we provide high - quality customer service. We're here for you, dedicated to meeting your needs!
Technical Specifications
Key Features and Benefits
High - Density Output Channels
The Woodward 5464 - 654 comes equipped with an impressive 64 discrete output channels. This high - density configuration makes it an ideal choice for applications where multiple devices need to be controlled simultaneously. In a large - scale manufacturing plant, for example, the module can manage a vast array of actuators on an assembly line, ensuring each component receives the correct control signal precisely when required. This not only streamlines the control system architecture but also reduces the need for multiple smaller modules, saving both space and cost.
Versatile Output Types
With support for NPN, PNP, and relay output types, the Woodward 5464 - 654 offers unparalleled flexibility. Different industrial devices have varying input requirements, and this module can seamlessly interface with them all. For instance, it can drive NPN - based sensors in a proximity detection system, PNP - based solenoids in a hydraulic control setup, or relays for high - voltage switching applications. This versatility eliminates the need for additional signal converters or interface modules, simplifying the overall system design.
Reliable Current Output
Each channel of the Woodward 5464 - 654 is capable of delivering 100 mA of output current. This ensures that the connected devices receive sufficient power to operate reliably. In applications where actuators need to move heavy loads or solenoids need to switch high - inductance loads, the module's ability to provide consistent current is crucial. It can drive these devices without any issues, maintaining stable operation even under high - demand conditions.
Wide Operating Voltage Range
Operating within a voltage range of 9 - 32 VDC, the Woodward 5464 - 654 can adapt to different power supply setups commonly found in industrial environments. This wide voltage tolerance makes it suitable for use in systems with fluctuating power sources or in regions where standard power supply voltages may vary. Whether it's a 24 VDC - based control system in a factory or a 12 VDC - powered mobile industrial unit, the module can function optimally, enhancing its applicability across diverse industrial scenarios.
Robust Construction
Built with industrial - grade materials, the Woodward 5464 - 654 can withstand harsh operating conditions. Its compact yet rugged design allows it to endure vibrations, shocks, and temperature extremes commonly encountered in industrial settings. In a power generation plant, for example, where there is significant mechanical vibration and temperature variations, the module remains unaffected, ensuring uninterrupted control of critical equipment. This durability reduces maintenance requirements and extends the module's lifespan, providing long - term cost - effectiveness.
Related Models
- Woodward 5464 - 653 – A predecessor to the Woodward 5464 - 654, offering a lower number of output channels (32) and potentially fewer advanced features, making it suitable for smaller - scale industrial control applications.
- Woodward 5464 - 655 – A 4 - channel actuator drive controller board from Woodward, which can be used in conjunction with the Woodward 5464 - 654 in systems where precise actuator control is required alongside discrete output management.
- Woodward 5464 - 210 – An actuator driver module that can complement the Woodward 5464 - 654 in applications where actuators need to be driven with high - power outputs. It has a dual - channel design and high - output current capabilities.
- Woodward 5464 - 658 – A digital speed sensor module that can be integrated into systems using the Woodward 5464 - 654 for applications where speed measurement and discrete output control are both necessary, such as in motor control systems.
- Woodward 5464 - 333 – A thermocouple input module. In industrial processes where temperature control is important, this module can work in tandem with the Woodward 5464 - 654 to provide temperature - related input data for control decisions, which are then outputted through the discrete output module.
- Woodward 5464 - 334 – An isolated 4 - 20 mA analog input module. It can be used in combination with the Woodward 5464 - 654 in systems that require both analog input monitoring and discrete output control, for example, in a process control system where analog sensor data is used to trigger discrete output actions.
