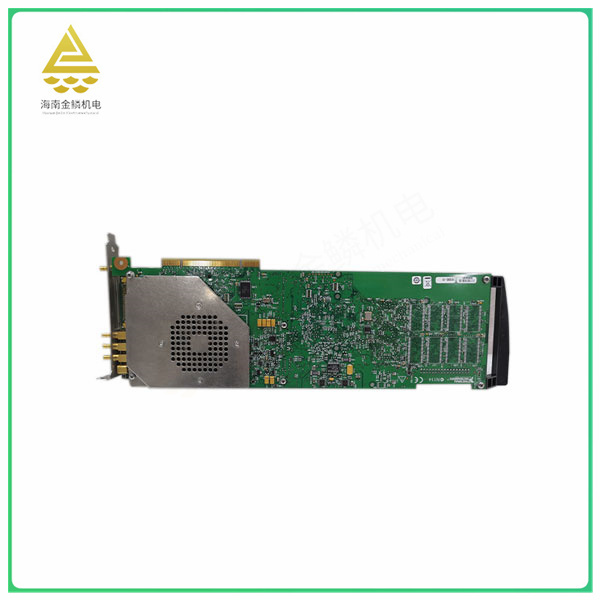

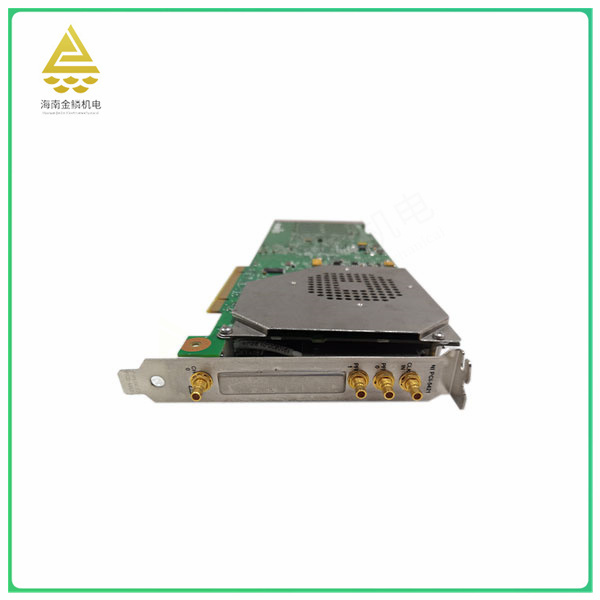

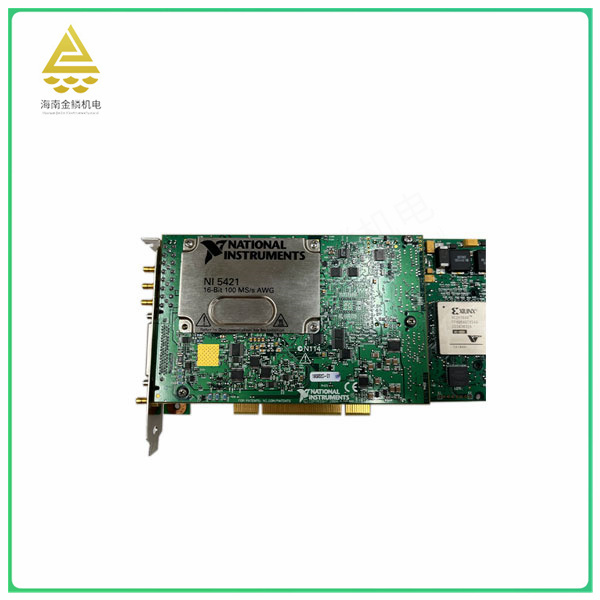

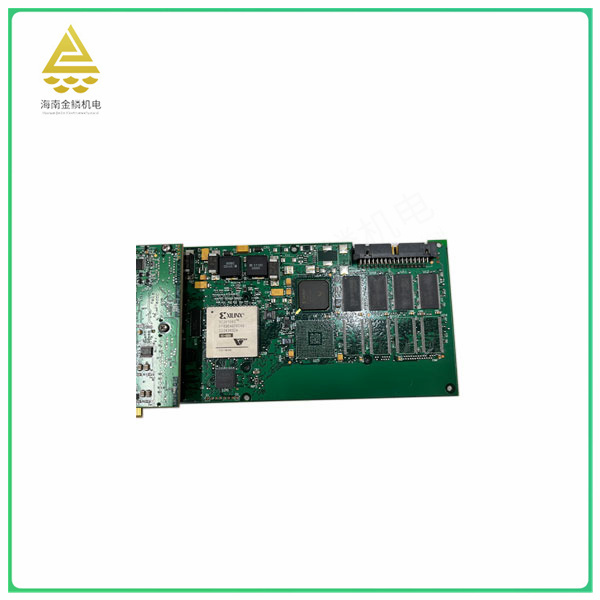

The PCI-5421 is an arbitrary waveform generator that is available in three versions, including 8MB, 32MB, and 256MB onboard memory. It is capable of generating arbitrary waveforms and standard functions defined by users, such as sine waves, square waves, triangular waves, and sawtooth waves. PCI-5421 uses direct digital synthesis (DDS) to accurately generate waveforms for a variety of applications, such as test and measurement, control systems, research and teaching.
The advantages and disadvantages of PCI-5421 are as follows:
Advantages:
High accuracy and stability: PCI-5421 uses direct digital frequency synthesis (DDS) technology to accurately generate a variety of waveforms with high frequency stability.
High-speed data transmission and processing: The device integrates high-speed data transmission and processing circuits to ensure real-time and accurate data.
Multiple waveform outputs: In addition to standard waveforms, the PCI-5421 can also generate user-defined arbitrary waveforms to meet diverse test needs.
Easy to program and control: Provide standard interface and programming interface, convenient for users to program control, to achieve automated testing.
Low-power design: The use of low-power technology, reduce equipment operating costs, while meeting the requirements of green environmental protection.
The main application areas of PCI-5421 include:
Test and measurement field: Due to its high accuracy and stable waveform generation capability, PCI-5421 is widely used in various test and measurement applications, such as electronic testing, radar testing, communication testing, etc.
Control system field: The programming and control capabilities of PCI-5421 make it suitable for the development and testing of various control systems, such as automatic control systems, robot control systems, etc.
Research and teaching fields: PCI-5421 can be used for a variety of research and teaching projects, such as signal processing, digital signal generation, communication principles, etc.
Other fields: In addition to the above fields, PCI-5421 can also be applied to audio processing, image processing, remote sensing measurement and other fields.
In short, the application areas of PCI-5421 are mainly focused on the application of its high accuracy, stability and programming control capabilities, including but not limited to test and measurement, control systems, research and teaching.
Cons:
Higher price: Compared with other arbitrary waveform generators, the price of PCI-5421 may be higher, increasing the user's procurement cost.
Need professional maintenance and commissioning: Due to the high technical content of PCI-5421, it needs professional maintenance and commissioning, increasing the cost of use.
Larger volume: Compared with small equipment, PCI-5421 is larger in size and occupies more space, which is not suitable for occasions with strict requirements for volume.
In short, PCI-5421 has the advantages of high precision, good stability, high-speed data transmission and processing, a variety of waveform output, easy programming and control, but it also has the disadvantages of high price, the need for professional maintenance and debugging, and large volume.
