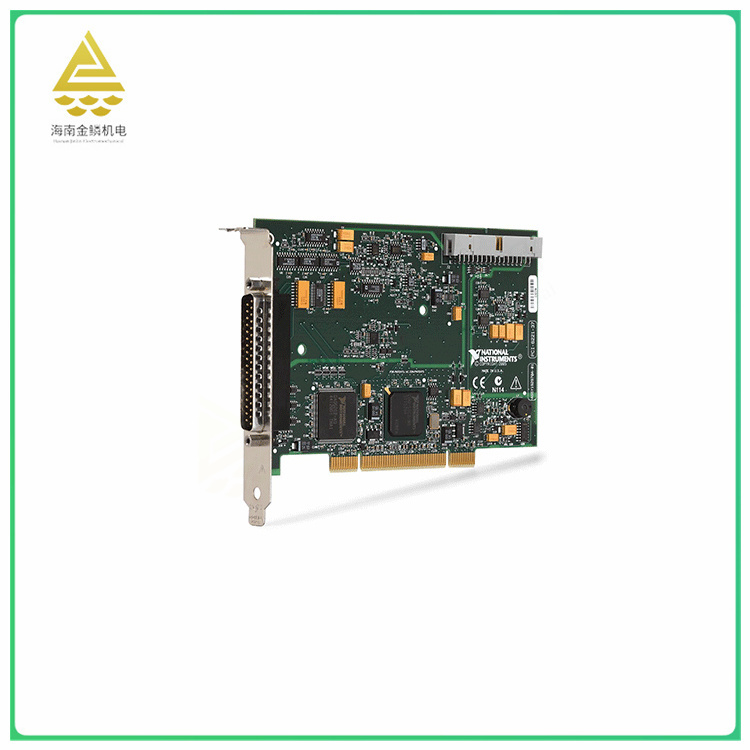

PCI-6221 is a multi-function data acquisition card with the following features and uses:
Multi-channel design: The PCI-6221 has 16 analog input channels that support multiple signal types, such as single-ended and differential signals. This enables it to acquire multiple signals at the same time, which is suitable for multi-channel data acquisition application scenarios.
High resolution: PCI-6221's analog input resolution reaches 16 bits, providing accurate data acquisition results. This makes it excellent in situations where high-precision data acquisition is required.
High-speed data acquisition: The data acquisition rate of PCI-6221 reaches 250 kS/s, which can quickly capture dynamic signals and is suitable for high-speed data acquisition applications.
Multi-functional integration: In addition to analog input functions, the PCI-6221 also integrates analog output, digital I/O, counters and timers. This enables it to meet a variety of data acquisition and control requirements, improving the integration and flexibility of the system.
Wide compatibility: The PCI-6221 supports multiple operating systems, such as Windows, Linux, real-time systems, MacOS, and RTX, making it easy to integrate with a variety of systems. In addition, it supports a variety of communication protocols, such as NI-DAQmx drivers and Measurement & Automation Explorer (MAX) tools, for easy configuration and measurement.
In terms of application scenarios, PCI-6221 is widely used in industrial automation, laboratory automation, research and manufacturing. For example, it can be used for signal acquisition and monitoring of factory automated production lines to improve production efficiency and product quality; In the laboratory, it can be used for data acquisition and processing of various physical, chemical and biological experiments; In the field of research and manufacturing, it can be used for data acquisition and analysis during new product development and testing.
The advantages and disadvantages of PCI-6221 are as follows:
Advantages:
Versatility: The PCI-6221 is A 16-channel, 250KHz multi-function DAQ (Data acquisition) board that supports 16-bit A/D conversion, 16-bit D/A conversion, digital input, digital output, counter and timer. This enables it to meet multiple data acquisition and control requirements at the same time, improving the integration and flexibility of the system.
High precision: PCI-6221 adopts a 16-bit analog-to-digital converter, with a maximum voltage accuracy of 3100μV and a minimum of 112μV, which can meet the sampling accuracy and output accuracy required by many tests.
High sampling rate: The maximum sampling rate can reach 250KS/s, which can fully meet the sampling requirements in most tests.
Wide compatibility: Support Windows, Linux, real-time system, MacOS, RTX and other operating systems, easy for users to develop and test under different platforms. In addition, it also supports NI-DAQmx drivers and Measurement & Automation Explorer (MAX) tools, making configuration and measurement easier and more convenient.
Easy to expand: PCI-6221 can be directly inserted into the IO expansion slot on the computer motherboard, which not only saves the cost and cycle of hardware design, but also can maximize the software potential of the computer, convenient and fast to form a data acquisition and control system.
Cons:
Halving the number of channels: When testing in differential mode, two AI channels are needed for every input signal tested, which results in halving the number of available channels on the board. Therefore, in applications where a large number of signals need to be collected at the same time, the number of channels may be limited.
Higher cost: While PCI-6221 has a variety of features and benefits, it is also relatively expensive. This may limit the choice of the board for some users or projects with limited budgets.
Overall, the PCI-6221 is a powerful, stable, and versatile data acquisition card suitable for a variety of applications requiring high-precision, high-speed data acquisition and control. When selecting and using, it is necessary to make comprehensive consideration according to actual demand and budget.
